Description

The ABB LDGRB-01 3BSE013177R1 is a specialized PROFIBUS DP-V1 gateway module designed for seamless integration of drives and regulators into ABB’s AC 800M distributed control system. As part of the S800 I/O family, this intelligent interface enables high-speed cyclic data exchange (up to 12 Mbps) between AC 800M controllers and third-party PROFIBUS devices, particularly focusing on drive systems from manufacturers like ABB, Siemens, and Danfoss. The LDGRB-01 3BSE013177R1 implements the Drive Profile (PROFIdrive) for standardized control of variable frequency drives (VFDs), servo controllers, and soft starters, supporting both process automation and motion control applications.

Engineered for reliability, this module features dual-port PROFIBUS connectivity with optical isolation (1500V AC) and integrated terminators via DIP switches. Its real-time capabilities include synchronous operation with AC 800M controllers for precise torque/speed control loops while providing extensive diagnostic data for drive health monitoring. The ABB LDGRB-01 3BSE013177R1 significantly reduces engineering effort through pre-configured device templates in Control Builder and automatic GSD file handling, making it a critical component for industries requiring harmonized control of distributed drive assets within a unified DCS architecture.

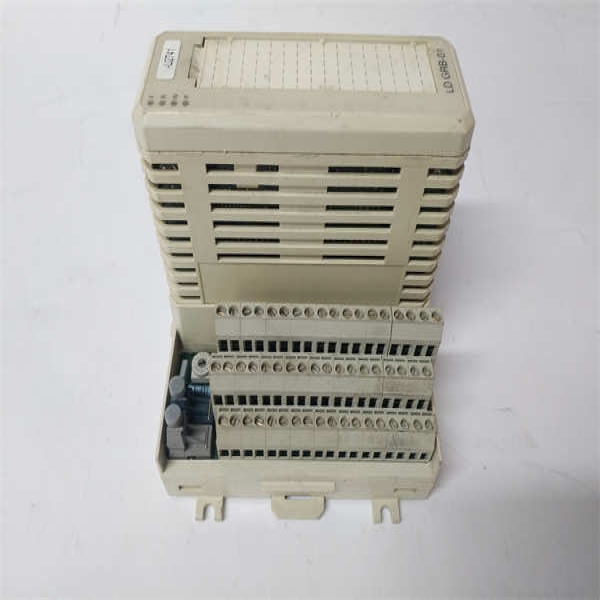

ABB LDGRB-01 3BSE013177R1

Technical Specifications

Main Features and Advantages

Drive-Optimized Integration: The ABB LDGRB-01 3BSE013177R1 implements PROFIdrive Class 1 and Class 3 functionality, enabling direct cyclic control of drives (speed/torque setpoints) and comprehensive status monitoring (actual values, faults, warnings). Pre-engineered device templates for major drive brands accelerate commissioning by 60% compared to manual configuration.

Robust Network Management: Dual isolated PROFIBUS ports support redundant trunk-line topologies or star configurations. Integrated signal quality monitoring detects cable degradation early. Automatic baud rate detection and GSD file handling eliminate manual settings. The module’s <2ms>

Enhanced Diagnostics and Safety: Real-time slave diagnostics provide per-device status (operational, faulty, deactivated) and detailed error codes. Optional PROFIsafe support enables SIL 3 safety functions over the same bus. The LDGRB-01 3BSE013177R1 features front-accessible DIP switches for topology configuration (termination, repeater mode) without opening the cabinet.

Application Field

The ABB LDGRB-01 3BSE013177R1 excels in industrial applications requiring centralized drive management. In cement production, it synchronizes kiln drive systems, crusher motors, and raw mill VFDs, enabling precise speed coordination for pyroprocessing lines. For marine propulsion, the module integrates thruster drives and pitch control systems on vessels, withstanding harsh saltwater environments.

In water treatment facilities, the LDGRB-01 3BSE013177R1 controls pump station VFDs for flow regulation while monitoring motor temperatures and vibration via PROFIBUS sensors. Mining operations deploy it for conveyor belt drive synchronization and hoist control, utilizing its wide temperature tolerance (-25°C to +70°C) in underground environments. The module is equally vital in manufacturing – coordinating extruder drives in plastics plants and roll stands in steel mills, where microseconds matter in tension control loops. Its ATEX Zone 2 certification allows deployment in hazardous areas like paint booths or fuel blending stations.

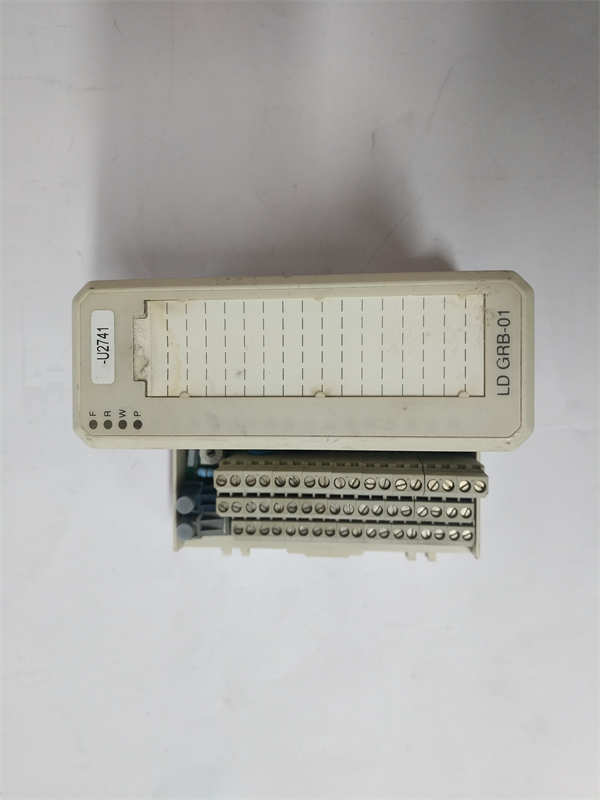

ABB LDGRB-01 3BSE013177R1

Related Products

LDGRB-02 3BSE013178R1: Enhanced version with PROFIsafe SIL 3 capability

CI854A: S800 I/O baseplate for mounting the LDGRB-01 3BSE013177R1

PM865: High-performance AC 800M controller for drive-intensive applications

SPIET800: PROFIBUS connector kit with terminators

ACS880: ABB drive series with native PROFIdrive support

SD822: S800 station power supply

TA527: Redundancy termination unit

Control Builder M Professional: Configuration software with FDT/DTM container

Installation and Maintenance

Pre-installation preparation: Verify AC 800M controller compatibility (requires FW 5.1+). Mount the LDGRB-01 3BSE013177R1 on CI854A baseplate using locking levers. Configure DIP switches (SW1/SW2) for termination and repeater mode per network topology. Use shielded PROFIBUS cable (Type A) with 90Ω impedance. Maintain 20cm separation from power cables.

Maintenance recommendations: Monitor PROFIBUS diagnostics via Control Builder’s “DP Master” view. Quarterly inspect connector seals in corrosive environments. Verify signal quality metrics (SNR, telegram count) biannually. For firmware updates, use ABB’s Secure Firmware Upload tool during planned stops. Always disconnect field power before module extraction. Store spares in anti-static packaging with desiccant.
