Description

The ABB CI854K01 3BSE025961R1 is a high-performance PROFIBUS DP communication interface module designed for ABB’s AC 800M programmable logic controller (PLC) series. As part of ABB’s S800 I/O family, this module enables seamless integration of distributed field devices into complex automation architectures, supporting high-speed deterministic data exchange up to 12 Mbps. Engineered for mission-critical industrial environments, the ABB CI854K01 provides dual-channel redundancy with automatic switchover capability, ensuring zero communication interruption during network failures. Its ruggedized design withstands extreme electrical noise and vibration, complying with IEC 61131-2 standards for industrial durability.

The module acts as a PROFIBUS DP master, capable of managing up to 125 slaves per channel while supporting cyclic and acyclic data transfers. Integrated diagnostics include real-time monitoring of bus topology, signal quality, and slave status via LED indicators and controller software. Hot-swappable design allows maintenance without system shutdown, minimizing operational downtime. When deployed in ABB’s System 800xA or Compact Control Builder environments, the ABB CI854K01 3BSE025961R1 delivers deterministic control for process safety systems, making it indispensable for large-scale distributed control systems (DCS).

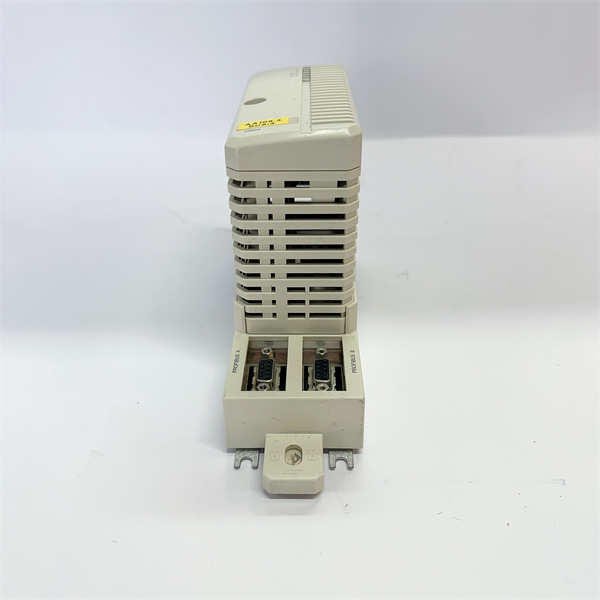

ABB CI854K01 3BSE025961R1

Technical Specifications

Main Features and Advantages

ABB CI854K01 3BSE025961R1 delivers industrial-grade resilience with galvanic isolation (500V AC) and electromagnetic compatibility (EMC) immunity up to 10 V/m. Its dual-channel architecture ensures uninterrupted PROFIBUS DP communication: if Channel A fails, Channel B automatically takes over within milliseconds, critical for safety systems requiring SIL 2/3 compliance. The module features integrated bus termination resistors (switchable via DIP settings), eliminating external components and reducing installation errors.

Advanced diagnostics include real-time monitoring of signal distortion, slave response timeouts, and frame errors – all accessible through ABB’s Control Builder engineering suite. Hot-swap capability enables module replacement during live operations without disrupting control logic. For hazardous areas, the ABB CI854K01 carries ATEX/IECEx Zone 2 certifications. Its compact design saves cabinet space while supporting ABB’s S800 I/O redundancy concepts. Engineers benefit from plug-and-play integration with AC 800M controllers and seamless firmware upgrades via SD card.

Application Field

The ABB CI854K01 3BSE025961R1 excels in large-scale industrial automation networks requiring deterministic PROFIBUS DP communication. In power generation, it integrates turbine governors and exciter systems with DCS for real-time synchronization. Oil & gas refineries deploy it to connect safety valves, flow computers, and SIL-rated transmitters in emergency shutdown (ESD) systems. For water treatment plants, the module manages distributed pump stations and chemical dosing units across vast campuses.

Manufacturing lines utilize the ABB CI854K01 to synchronize motor drives (e.g., extruders, conveyors) and robotic cells with millisecond precision. In mining, it withstands vibration while linking remote I/O stations for conveyor belt safety monitoring. Pharmaceutical facilities leverage its deterministic data exchange for batch process control and FDA-compliant data logging. Wherever PROFIBUS DP networks demand fault tolerance and diagnostic transparency – from offshore platforms to automotive assembly – the ABB CI854K01 3BSE025961R1 delivers mission-critical reliability.

Related Products

ABB CI855K01: PROFINET I/O Controller for AC 800M

ABB CI858K01: Modbus TCP Communication Interface

ABB PM851A: Processor unit for AC 800M controllers

ABB SD822: Redundancy module for S800 I/O

ABB TB801: Termination board for CI854 mounting

ABB S800 I/O AI825: Analog input module for signal integration

ABB CP405: Control Panel for 800xA operator interface

ABB SA801F: Fieldbus adapter for device-level connectivity

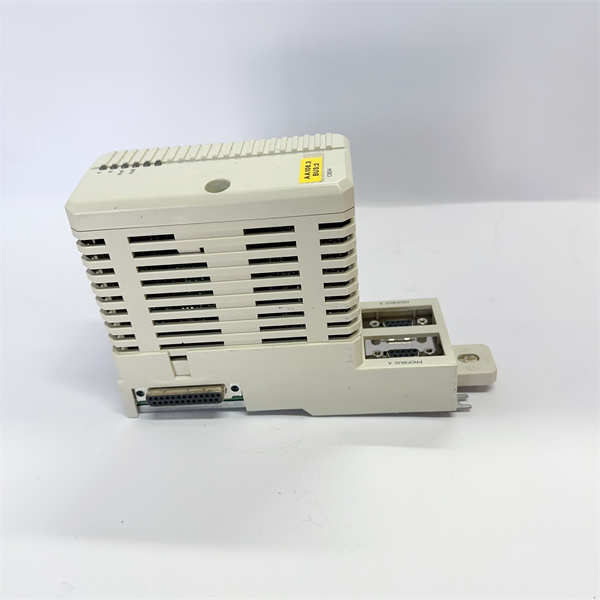

ABB CI854K01 3BSE025961R1

Installation and Maintenance

Pre-installation preparation: Verify controller compatibility (AC 800M PM8xx series) and ensure firmware version ≥ 6.1. Mount the ABB CI854K01 3BSE025961R1 on DIN rail using TS831 clamp, maintaining 10cm clearance above/below for ventilation. Ground shield wires at both ends of PROFIBUS cables (type A) and avoid parallel routing with power lines. Set DIP switches for bus termination and station address before power-up.

Maintenance recommendations: Monitor module health via Control Builder’s diagnostic viewer. Replace units showing persistent “COMM FAULT” LED indication. Use ABB’s SD memory card for firmware updates during planned downtime. Clean air vents annually to prevent dust accumulation. For redundant configurations, test failover functionality quarterly by manually disconnecting active channels. Store spares in ESD-protected packaging at -40°C to +85°C.
