The ABB REF615E-E HBFAABAANAA4BNA11E (7700080612) is a high-density communication-centric feeder protection relay within ABB’s Relion® 615 series, engineered for Industry 4.0 substations requiring multi-protocol integration. This “E-E” variant features dual PROFINET and IEC 61850 Ed.2 interfaces, enabling seamless convergence of OT/IT networks in smart factories and process plants. The ABB REF615E-E delivers comprehensive protection including directional overcurrent (67), voltage-restrained overcurrent (51V), and arc flash detection (<2>HBFAABAANAA4BNA11E suffix denotes 32 digital inputs, 24 relay outputs, and integrated C37.118 synchrophasor measurement for grid stability monitoring. Encased in a compact 1/2 19″ housing, the relay operates from –40°C to +70°C with IP40 front protection, making it ideal for harsh industrial automation environments.

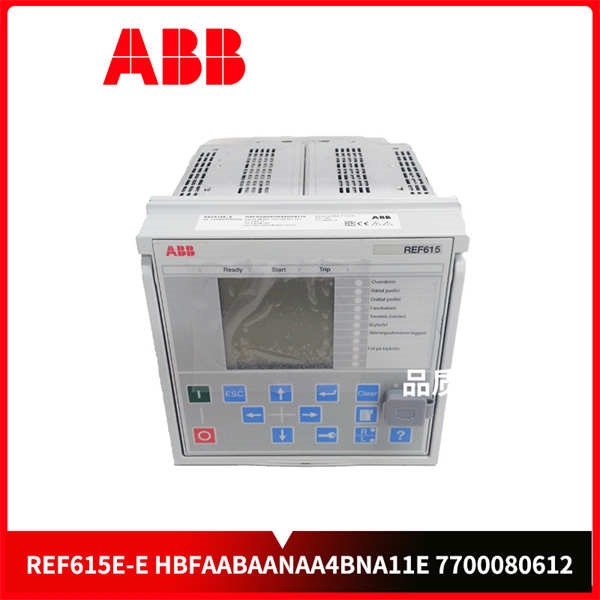

ABB REF615E-E HBFAABAANAA4BNA11E 7700080612
Technical Specifications
| Parameter | Value |
| Product Model | REF615E-E HBFAABAANAA4BNA11E (7700080612) |
| Manufacturer | ABB |
| Product Type | Multi-Protocol Feeder Protection Relay |
| Rated Voltage | 48–300 V DC/AC (dual redundant) |
| Protection Functions | Directional OC/EF (67/67N), Arc Flash (AFD), Breaker Failure (50BF), Voltage Restraint (51V) |
| Communication | 2x PROFINET IRT (Class B), 2x IEC 61850-8-1 (GOOSE/MMS), RS-485 (Modbus), USB |
| I/O Configuration | 32 DI (24V DC), 24 DO (5A @ 250V AC), 8 AI (0–10V/4–20mA) |
| Time Synchronization | IEEE 1588 PTP (Profile: IEC 61850-9-3) |
| Measurement Accuracy | ±0.2% (V/I), ±0.1° (phase) |
| Operating Temperature | –40°C to +70°C |
| Dimensions | 177 × 204 × 147 mm (H×W×D) |
| Certifications | IEC 61850 Ed.2, IEEE 1613, SIL 2, DNV-GL |
Main Features and Advantages
Multi-network integration: Dual PROFINET IRT ports support ≤1 ms cycle times for PLC synchronization, while IEC 61850 GOOSE enables peer-to-peer trip coordination. The ABB REF615E-E acts as a protocol translator, eliminating gateways in hybrid networks.
High-speed protection: Integrated arc sensors trigger <2>
Cyber-physical security: Hardware-enforced secure boot (IEC 62443-4-1), role-based access (RBAC), and encrypted GOOSE prevent unauthorized access. Configuration changes require digital signatures.
Diagnostic intelligence: Onboard disturbance recorder captures 128 events at 10 kHz sampling. PROFINET diagnostics monitor network health via PLCs.
Application Field
The ABB REF615E-E HBFAABAANAA4BNA11E excels in interconnected industrial ecosystems:
Automotive Manufacturing: PROFINET-integrated protection for robotic cell switchgear with <1>
Smart Grids: IEC 61850-based microgrid protection with synchrophasor-assisted islanding detection.
Data Centers: Multi-source arc flash protection for critical busways with PTP time sync.
Port Infrastructure: Crane feeder protection with Modbus/TCP integration to SCADA.
Food & Beverage: Hygienic-design MCC protection with washdown-rated sensors.
Related Products
REF615E-D: Ethernet-APL variant for hazardous areas.
REC615: Basic feeder relay without PROFINET.
CMUFO-PRO: PROFINET-compatible arc sensor.
REx640: Transformer protection for upstream coordination.
HMI566-PN: PROFINET HMI for local control.
SDCS-PN-GW: PROFINET to DNP3 gateway.
PCM600: Engineering software with PROFINET GSDML tools.

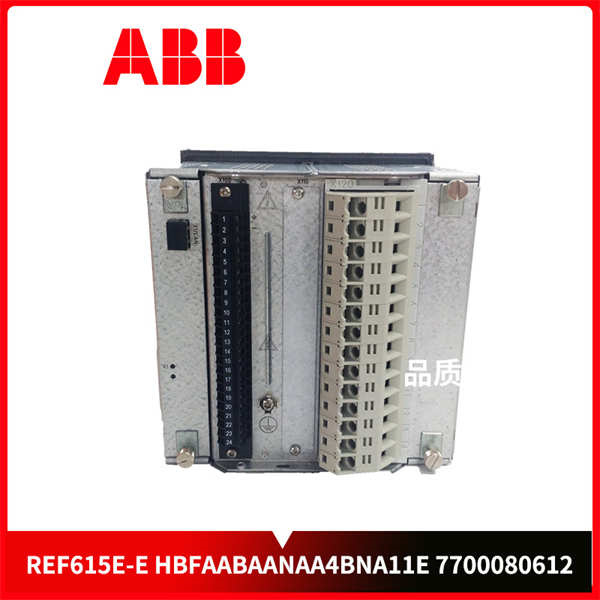

ABB REF615E-E HBFAABAANAA4BNA11E 7700080612
Installation and Maintenance
Pre-installation preparation: Segregate PROFINET and IEC 61850 networks via VLANs. Verify PTP grandmaster availability. Ground relay chassis with 16 mm² cable (<0> Maintenance recommendations: Validate IRT cycle times annually using PROFINET scanners. Test arc sensors with UV pulse generator. Update firmware with signed files only. Monitor port statistics via integrated web server.
