Description

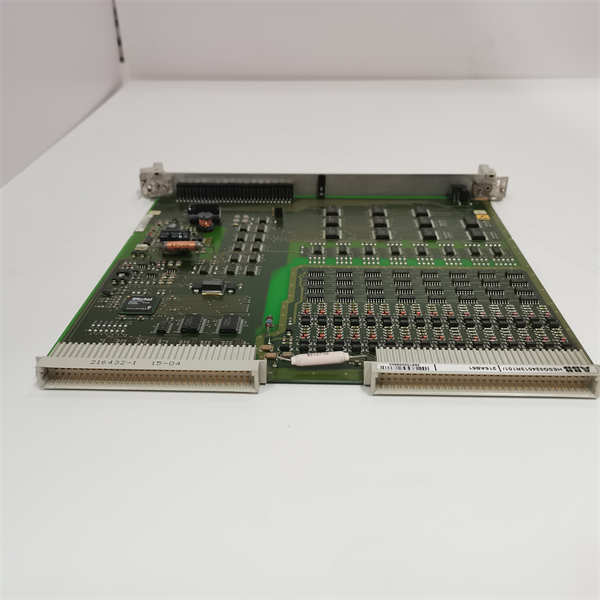

ABB 216AB61 HESG324013R101 is a digital output module in the ABB Procontrol and 800xA integrated automation system.It contains 32 independent digital channels and has short-circuit protection function,ensuring that even if the channel fails,it will not affect the normal output of other signals.Each channel is equipped with LED indicator lights,providing intuitive monitoring of channel status and enabling quick replacement through modular design.

The module adopts a plug-in structure and can be installed in a standard 19 inch rack,occupying one slot.Its”short-circuit protection”output capability makes it suitable for various actuator and alarm device control scenarios,reliably connecting PLC,DCS,relays,and motor drivers in process automation systems to ensure stable and safe signal transmission.

During installation,only the 24 VDC auxiliary power supply needs to be connected,and the digital signals of the control system need to be input and output to the corresponding channels.The output is a short-circuit protection switch signal,suitable for switching relay coils,solenoid valves,electric actuators,etc.The LED indicator function clearly identifies the output status of each channel,greatly improving the efficiency of operation monitoring and fault location speed.

Main features and advantages

Multiple independent outputs

216AB61 HESG324013R101 provides 32 independent digital channels and supports parallel control of multiple actuators.

Built in short circuit protection

Equipped with short-circuit detection and protection functions,it can effectively prevent a single fault from affecting the entire system.

Real time LED status monitoring

Each output is equipped with LED status indicator lights,reducing the difficulty of troubleshooting and improving maintenance efficiency.

Modular plug-in design

Occupy one slot,support quick repair and replacement,without the need for overall shutdown.

Compatible with 800xA/Procontrol

Fully integrated with ABB control platform,adapted to the operation process of automation control system.

Industrial grade reliability

Designed to meet industrial standards and adapt to long-term automated operating environments.

technical specifications

Product model:216AB61 HESG324013R101

Manufacturer:ABB

Product type:Digital Output Unit

Output channel:32 independent channels

Output type:Short circuit protection switch signal

LED status indicator:Each channel is equipped with LED

Auxiliary power supply:24 VDC

Installation method:Plug in,1-slot standard rack

Weight:~0.34 kg

Working temperature:suitable for industrial environment

application area

216AB61 HESG324013R101 is widely used in ABB automation systems,PLC/DCS interfaces,relay control,valve/pump drive,alarm triggering and other scenarios.It plays an important role in power plants,chemical industry,water treatment,manufacturing and other fields,and is an indispensable core module in modern control cabinets.

ABB 216AB61 HESG324013R101

Related products

ABB 216EA62:Analog input unit that receives RTD/analog signals.

ABB 216DB61:Isolation type digital input/circuit breaker output module.

ABB 216GW62:CT/VT input converter,signal isolation processing.

ABB 216VC624:Central processing module for interface and control.

ABB 216GA62:High speed circuit breaker auxiliary output module,used in conjunction with 216AB61.

Installation and maintenance

Preparation before installation:Ensure that the 24V auxiliary power supply of the system has been disconnected.Clean the rack rails,confirm that the module installation slots are dust-free,and ensure reliable grounding.

Maintenance suggestion:Regularly observe the LED status indicator light and check whether the output channel is abnormally lit or tripped due to faults.When a channel short circuit occurs,this module can be replaced separately without the need for a complete shutdown.The maintenance cycle of the module body is once every year,keeping the contacts clean and wiring tight.
