The ABB UAC383AE01 HIEE300890R0001 is an advanced Ethernet/IP communication interface module designed for ABB’s S800 I/O system, enabling seamless integration between ABB controllers and Allen-Bradley®/Rockwell Automation ecosystems. As part of ABB’s Universal Adapter series, this ruggedized module translates ABB’s native protocols to CIP (Common Industrial Protocol), allowing real-time data exchange with ControlLogix® and CompactLogix® PLCs without gateways. The UAC383AE01 serves as a critical interoperability enabler in hybrid automation environments, supporting deterministic I/O updates as fast as 2ms for time-sensitive applications like motion control and high-speed batch processing. Its dual-port embedded switch enables linear or ring topologies with device-level redundancy (DLR), ensuring network resilience in automotive, food & beverage, and pharmaceutical plants where multi-vendor systems coexist.
Engineered for harsh industrial environments, the ABB UAC383AE01 HIEE300890R0001 features galvanic isolation and conformal-coated electronics, operating reliably in high-electrical-noise areas like steel mills or packaging lines. The module simplifies engineering through pre-certified Add-On Profiles (AOPs) for Studio 5000, enabling drag-and-drop configuration of ABB I/O tags within Rockwell projects. This eliminates manual addressing and reduces commissioning time by up to 70%. For brownfield modernization, the UAC383AE01 acts as a drop-in solution to connect legacy ABB I/O racks to modern control architectures while preserving existing sensors and wiring.

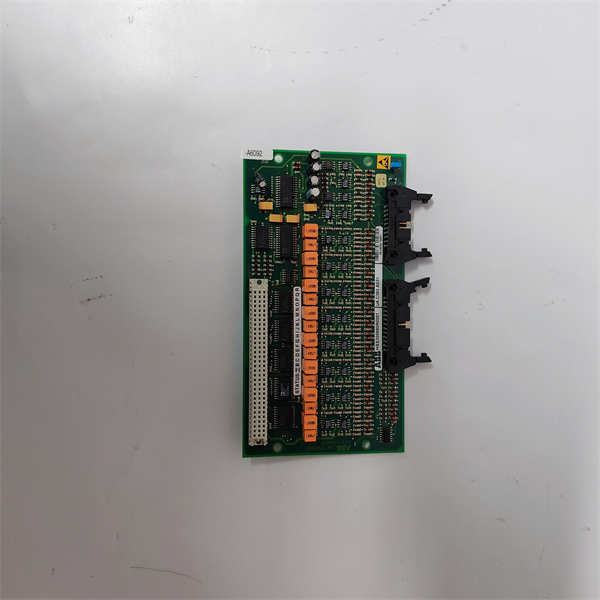

ABB UAC383AE01 HIEE300890R0001
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | UAC383AE01 HIEE300890R0001 |
| Manufacturer | ABB |
| Product Type | Ethernet/IP Communication Interface |
| Protocol Support | CIP Class 1 (I/O), CIP Class 3 (Messaging) |
| Data Transfer Rate | 100 Mbps (auto-negotiating) |
| Max Connected Devices | 64 EtherNet/IP scanners |
| I/O Update Rate | Configurable 2–750 ms |
| Network Topologies | Star, Linear, DLR Ring (with 500µs recovery) |
| Port Configuration | 2x RJ-45 (10/100BASE-TX) with embedded switch |
| Isolation Voltage | 1500V AC (port-to-bus) |
| Configuration Tools | Studio 5000 AOP, ABB Fieldbus Builder |
| Power Consumption | 1.8W @ 24V DC (18–32V range) |
| Operating Temperature | -25°C to +70°C |
| Housing Protection | IP20 (chassis-mounted) |
| Certifications | UL, CE, ATEX Zone 2, IECEx |
Main Features and Advantages
Multi-Vendor Interoperability: The UAC383AE01 implements full CIP object models, allowing Rockwell PLCs to directly access ABB S800 I/O data as native tags. Its implicit messaging handles up to 512 bytes of I/O data per module, supporting analog values, digital states, and diagnostic information without custom coding.
Deterministic Performance: Precision timestamping of I/O events enables synchronization within ±250µs across the network. The module’s Jitter-Free Sampling ensures analog readings align with control cycles in Rockwell controllers, critical for closed-loop PID applications.
Robust Network Management: Integrated DLR (Device-Level Ring) support creates self-healing networks. If a cable fails, the UAC383AE01 reconfigures the ring topology in under 500µs—faster than a single PLC scan cycle—preventing production stoppages.
Simplified Engineering: Pre-built AOPs auto-generate UDTs (User-Defined Types) in Studio 5000, mapping ABB’s diagnostic bits (over-range, module fault) to Rockwell alarm objects. Configuration packages include electronic keying options to prevent mismatched revisions.
Application Field
The ABB UAC383AE01 HIEE300890R0001 excels in facilities transitioning between automation platforms. In automotive body shops, it synchronizes ABB robots (via IRC5 controllers) with Rockwell-controlled conveyor systems, enabling millisecond-precision welding while passing seam-quality data to MES. Pharmaceutical blister packaging lines use it to integrate ABB’s precise temperature controllers with Rockwell HMI recipes, ensuring 21 CFR Part 11 compliance.
Water treatment plants deploy the module to bridge ABB’s corrosion-resistant S800 I/O (monitoring pH/chlorine) to existing PlantPAx® DCS. In bottling facilities, it enables Allen-Bradley CompactLogix® to control ABB variable-speed drives for filler/capper synchronization. For mining conveyors, the UAC383AE01’s -25°C capability allows surface-to-underground communication without heated enclosures.

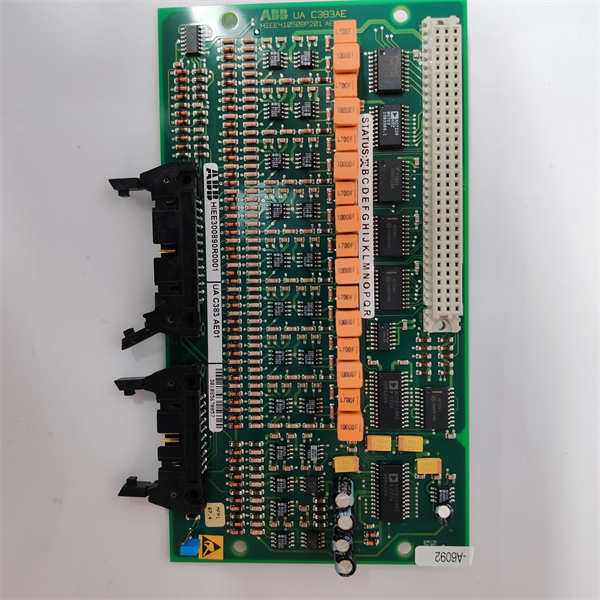

ABB UAC383AE01 HIEE300890R0001
Related Products
UAC389AE01: PROFINET adapter for Siemens PLC integration.
S800 AI825 3BSE020516R1: 16-channel analog input module.
SD822 3BSE020588R1: SIL 3 digital input for safety systems.
1756-EN2TR: Rockwell EtherNet/IP module for ControlLogix chassis.
CI871 3BSE056767R1: ABB’s redundant HSR/PRP interface.
PM803F 3BSE010796R1: Compact AC 800M controller.
Fieldbus Builder M3SYS100: ABB’s configuration tool suite.
1492-CABLEA010: Prefabricated EtherNet/IP cables for ABB-Rockwell links.
Installation and Maintenance
Pre-installation preparation: Verify S800 baseplate compatibility (TB801–TB804 series) and install firmware ≥V3.2. Set DIP switches for node addressing before power-up. Use shielded CAT6e cables with 360° grounding for EMI immunity. Configure Studio 5000 AOP with electronic keying “Compatible Module”.
Maintenance recommendations: Monitor “Network Utilization” and “Cycle Overruns” via ABB’s diagnostic tags in Rockwell HMIs. Clean RJ-ports annually with contact spray to prevent corrosion. Update firmware during planned stops using Fieldbus Builder—never online. Replace modules after 10+ CRC error counts per hour.
