Description

The ABB PCD237A101 3BHE028915R0101 is a high-voltage Line Differential Protection Relay from ABB’s Relion® 670 series, engineered for secure and ultra-fast fault detection in transmission and distribution networks. This IEC 61850-compliant device provides primary protection for overhead lines, cables, and hybrid feeders up to 500 kV using advanced differential algorithms with phase-segregated decision logic. The PCD237A101 integrates seamlessly into ABB’s System 800xA or standalone substation automation architectures, offering dual-breaker protection, fault locator functionality, and adaptive autoreclosing for grid resilience. Its core value lies in immunity to power swings, CT saturation, and communication channel asymmetries – ensuring <15>ABB PCD237A101 3BHE028915R0101 delivers not just protection but grid intelligence, enabling utilities to prevent cascading outages and optimize asset utilization in digitally transformed substations.

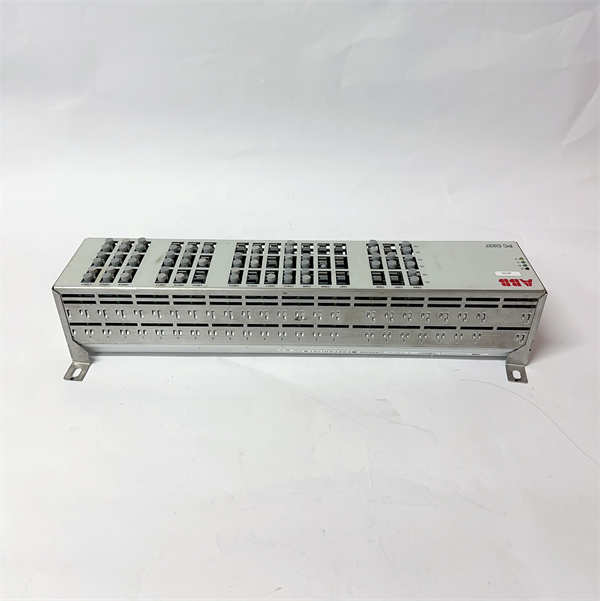

ABB PCD237A101 3BHE028915R0101

Technical Specifications

Main Features and Advantages

Secure Differential Protection: The ABB PCD237A101 uses sampled-value (SV) teleprotection with 64-bit encryption and channel monitoring, enabling secure current differential calculations even over leased lines or fiber-optic networks. Its phase-segregated algorithm compensates for CT errors and line charging current, preventing maloperation during heavy load or external faults.

Grid Intelligence Integration: Beyond core protection, the relay embeds a phasor measurement unit (PMU) for real-time grid stability monitoring and disturbance recording. Its IEC 61850 process bus (9-2LE) support eliminates hardwiring by digitizing CT/VT signals, reducing commissioning time by 40%.

Adaptive Autoreclosing: The PCD237A101 intelligently discriminates between transient (lightning) and permanent faults (tree contact), enabling adaptive single-/multi-phase reclosing to maximize grid availability while minimizing stress on equipment.

Cyber Hardened Design: With hardware-based secure boot, role-based access control (RBAC), and audit trails compliant with NERC CIP, the relay defends against unauthorized configuration changes or firmware tampering. Front-panel USB ports are physically disabled during runtime to eliminate attack vectors.

Hot-Standby Redundancy: When paired with a second PCD237A101 via IEC 62439-3 PRP/HSR, the relays maintain <5ms>

Application Field

The ABB PCD237A101 3BHE028915R0101 is deployed in mission-critical grid protection scenarios. In ultra-high-voltage (UHV) transmission corridors, it provides main/backup protection for interconnectors between regional grids, leveraging its immunity to power swings and CT saturation during fault-induced transients. Offshore wind farms utilize its differential logic to protect submarine export cables, where traditional distance protection struggles with capacitive current.

Industrial plants with captive generation (e.g., petrochemical refineries) rely on the relay’s adaptive autoreclose to isolate internal feeder faults without collapsing entire site networks. Railway electrification systems benefit from its harmonic immunity when protecting 25kV catenary lines near traction substations. The PCD237A101 also secures cross-border interconnections, where synchrocheck (25) and power swing blocking prevent out-of-phase closing during grid separation events. For urban underground cable networks, its single-ended fault locator (±0.5% accuracy) minimizes outage duration after earth faults.

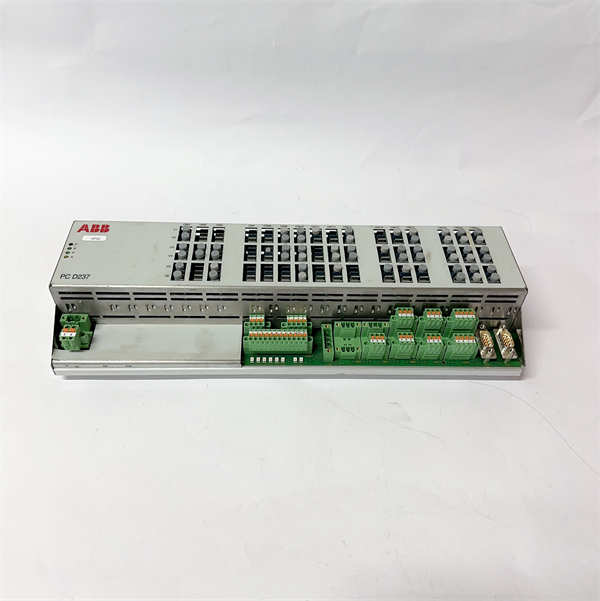

ABB PCD237A101 3BHE028915R0101

Related Products

RET670: Transformer Protection Relay – Complementary device for substation asset protection.

REC670: Generator Protection Relay – For coordinated protection of power plants.

REF615: Feeder Protection – Cost-effective solution for distribution-level circuits.

SMT-10: Test Equipment – Validates PCD237A101 logic and communication.

COM600: Station HMI – Visualizes PCD237A101 events and synchrophasor data.

MU615: Merging Unit – Digitizes analog signals for PCD237A101’s IEC 61850-9-2LE interface.

FCP-1: Fiber Converter – Extends teleprotection range for PCD237A101 differential links.

Installation and Maintenance

Pre-installation preparation: Verify panel cutout dimensions (177x177mm) and clearance for fiber cabling. Ground the PCD237A101 chassis directly to substation earth grid (<0>

Maintenance recommendations: Annually validate differential protection stability via end-to-end testing with remote relays. Monitor communication channel latency (<8ms>PCD237A101’s real-time clock battery every 5 years to maintain event timestamp accuracy.
