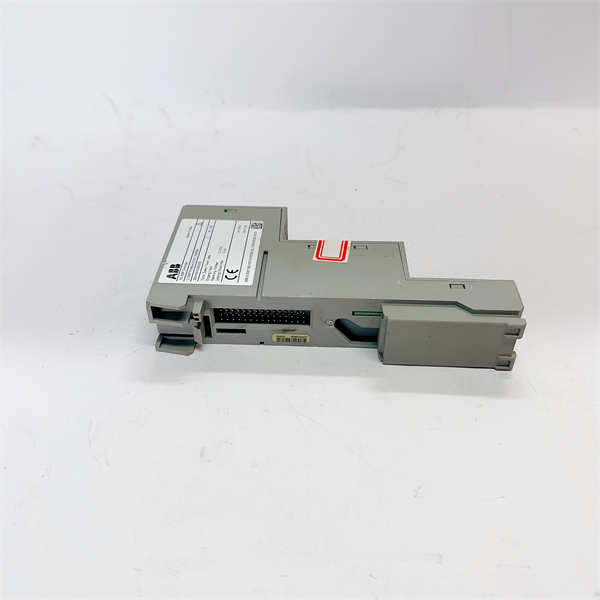

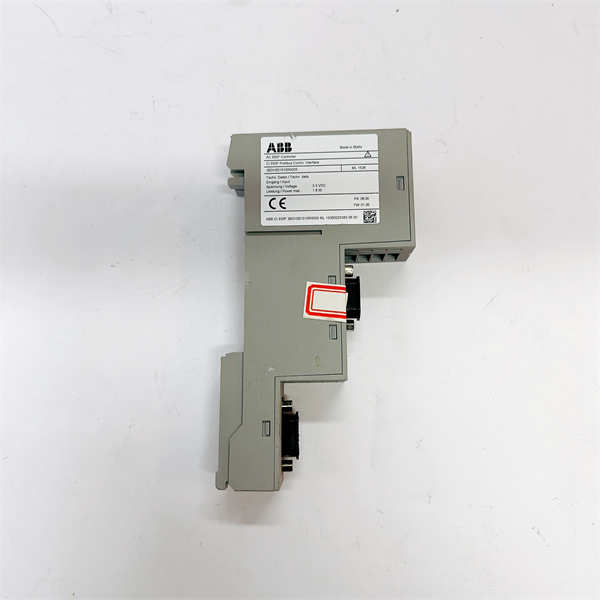

The ABB CI930F 3BDH001010R0005 is a PROFIBUS DP-V1 slave communication interface module designed for ABB’s flagship AC 800M high-integrity controller family. This ruggedized fieldbus gateway enables seamless integration of distributed I/O and intelligent field devices into ABB’s industrial automation ecosystems. As a critical component in the 800xA and Symphony Plus DCS platforms, the ABB CI930F 3BDH001010R0005 facilitates high-speed cyclic data exchange (up to 12Mbps) while supporting PROFIBUS diagnostics, alarms, and parameterization services. Its dual-port design allows linear or tree topology configurations without external repeaters, significantly simplifying cabling in complex plant architectures.
Engineered for continuous operation in harsh environments, the ABB CI930F 3BDH001010R0005 features galvanic isolation (1500V AC) between the controller backplane and field network, protecting sensitive control electronics from ground loops and surges. The module supports up to 244 bytes of I/O data per node with configurable watchdog timers for communication fault detection. Positioned as a backbone for brownfield modernization, the ABB CI930F 3BDH001010R0005 bridges legacy PROFIBUS assets with modern control strategies, enabling predictive maintenance through its comprehensive diagnostic capabilities. Its hot-swappable design ensures zero downtime during module replacement – critical for continuous process industries.
ABB CI930F 3BDH001010R0005
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | CI930F 3BDH001010R0005 |
| Manufacturer | ABB |
| Product Type | PROFIBUS DP-V1 Slave Interface |
| Communication Protocol | PROFIBUS DP (EN 50170), V1 standard |
| Data Transfer Rate | 9.6Kbps to 12Mbps (auto-negotiating) |
| Isolation Voltage | 1500V AC (field to logic) |
| PROFIBUS Connectors | 2 x 9-pin D-Sub (male/female) |
| Max I/O Data | 244 bytes input / 244 bytes output |
| Configuration | Via Control Builder M or GSD file |
| Power Consumption | 1.8W (typical) @ 5VDC |
| Operating Temperature | -25°C to +70°C |
| Relative Humidity | 5–95% (non-condensing) |
| Certifications | UL, CE, ATEX Zone 2, DNV-GL |
| MTBF | 250,000 hours (SIL 2 capable) |
Main Features and Advantages
Deterministic Performance: The ABB CI930F 3BDH001010R0005 delivers cycle times as low as 1ms with hardware-based PROFIBUS ASIC processing, ensuring jitter-free synchronization of critical processes like turbine control.
Advanced Diagnostics: Integrated LED indicators (RUN/BUS/ERROR) provide instant module status. Detailed fault logging captures telegram errors, station dropout events, and signal quality metrics – accessible through Control Builder for root-cause analysis.
Network Flexibility: Supports up to 125 nodes per segment with 9.6km maximum fiber-optic extension. The ABB CI930F 3BDH001010R0005 automatically terminates signals at the end node, eliminating manual terminators.
Safety Integration: SIL 2-capable architecture with redundant communication paths. The module’s “Safe Station” functionality ensures defined safe states during watchdog timeouts or bus failures.
Migration Ready: Backward-compatible with existing CI910 modules, preserving investments in PROFIBUS infrastructure while enabling future upgrades to PROFINET.
Application Field
The ABB CI930F 3BDH001010R0005 serves as the nervous system for industrial automation networks across heavy industries. In power generation, it interconnects turbine governors, exciter controls, and vibration monitoring systems within ABB’s Symphony DCS. Chemical plants deploy this module to integrate distributed I/O islands across tank farms, enabling real-time leak detection through PROFIBUS-enabled pressure transmitters.
Water treatment facilities leverage the ABB CI930F 3BDH001010R0005 to network pumping stations and chlorination skids over kilometer-long distances. Mining operations utilize its noise immunity for conveyor speed synchronization and crusher motor control in electrically harsh environments. In pharmaceutical manufacturing, the module ensures batch recipe synchronization between isolator systems and filling machines while maintaining 21 CFR Part 11 compliance.
Related Products
CI930: Non-redundant predecessor version
CI901: PROFIBUS DP master module
PM864AK1: AC 800M controller hosting CI930F
SD822: PROFIBUS repeater for network extension
TA210: Terminal assembly for module wiring
3BSE018105R1: Power supply for AC 800M baseplate
CI940: PROFINET IRT communication module
CP405: Human-Machine Interface for system monitoring
ABB CI930F 3BDH001010R0005
Installation and Maintenance
Pre-installation preparation: Verify AC 800M controller firmware compatibility (Minimum CBM 6.1). Configure PROFIBUS station address via rotary switches (0-125) before insertion. Ensure proper grounding of control cabinet (<0>
Maintenance recommendations: Monitor PROFIBUS signal quality quarterly using diagnostic tools like PB-Tester. Replace modules showing persistent BUS LED errors after verifying termination resistance (220Ω at segment ends). Clean backplane connectors annually with isopropyl alcohol to prevent oxidation. Always store the ABB CI930F 3BDH001010R0005 in anti-static packaging during handling.
