ABB PPD113B03-26-100110 Drive Control Board – Spare Parts Supply, Fast Response, Worry Free Projects!

The ABB PPD113B03-26-100110 (manufacturer code 3BHE023584R2634) is an advanced Arc Flash Protection Relay from ABB’s Relion® 600 series, engineered to detect and mitigate arc flash hazards in medium-voltage switchgear (1–40.5 kV). Utilizing dual-spectrum UV/IR sensors and high-speed light detection, this module triggers busbar tripping within 2–3 ms – 10× faster than conventional overcurrent relays – to limit incident energy below 8 cal/cm² per IEEE 1584. The PPD113B03-26-100110 integrates seamlessly with ABB’s IEC 61850-compliant substation automation systems, featuring adaptive logic for distinguishing arc flashes from welding sparks or sunlight. Its ruggedized design (IP52) withstands switchgear vibration and EMI noise, providing SIL 2-certified personnel protection in critical power distribution infrastructures.

Get a Quote
Manufacturer:
Our extensive catalogue, is available now for dispatch to the worldwide.
  • Email: sales@slxytech.com
  • WhatsApp / Wechat：8617062388866
  • Phone：+86 17062388866

Description

The ABB PPD113B03-26-100110 (manufacturer code 3BHE023584R2634) is an advanced Arc Flash Protection Relay from ABB’s Relion® 600 series, engineered to detect and mitigate arc flash hazards in medium-voltage switchgear (1–40.5 kV). Utilizing dual-spectrum UV/IR sensors and high-speed light detection, this module triggers busbar tripping within 2–3 ms – 10× faster than conventional overcurrent relays – to limit incident energy below 8 cal/cm² per IEEE 1584. The PPD113B03-26-100110 integrates seamlessly with ABB’s IEC 61850-compliant substation automation systems, featuring adaptive logic for distinguishing arc flashes from welding sparks or sunlight. Its ruggedized design (IP52) withstands switchgear vibration and EMI noise, providing SIL 2-certified personnel protection in critical power distribution infrastructures.

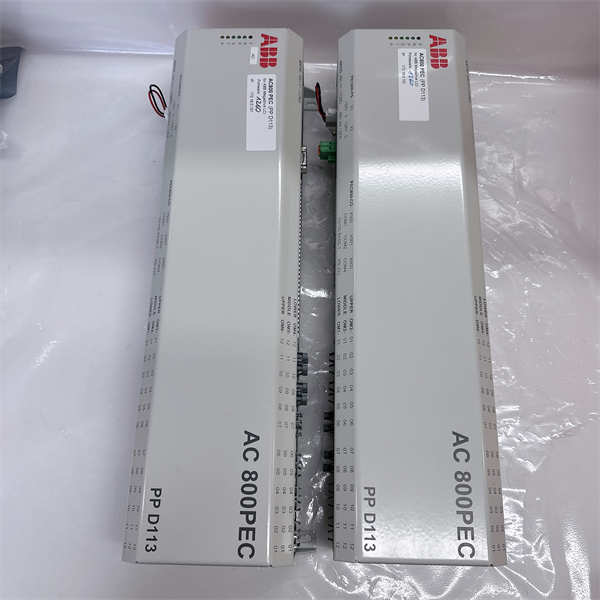

ABB PPD113B03-26-100110 3BHE023584R2634

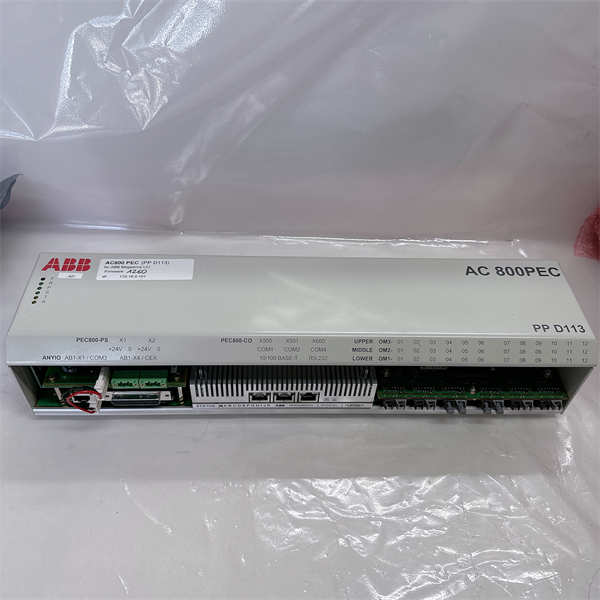

ABB PPD113B03-26-100110 3BHE023584R2634

Technical Specifications

Parameter Name Parameter Value
Product Model PPD113B03-26-100110 (3BHE023584R2634)
Manufacturer ABB
Product Type Arc Flash Protection Relay
Detection Technology Dual UV (180–280 nm) + IR (850–1100 nm) sensors
Response Time 2–3 ms (light detection), 7 ms (full trip)
Detection Range Up to 20 m per sensor (120° coverage)
Input Voltage 48–250 V DC/100–240 V AC
Binary Inputs 14 (24–250 V DC)
Relay Outputs 10 (5A @ 250 V AC)
Communication IEC 61850-8-1, IEC 60870-5-103, Modbus RTU
Optical Ports 4× ST connectors (fiber-optic sensor inputs)
Operating Temperature -25°C to +70°C (-13°F to +158°F)
Certifications SIL 2 (IEC 61508), IEEE C37.20.7, UL 508
Enclosure Rating IP52 (front)/IP20 (terminals)
Event Records 1,000+ time-stamped events with waveform capture

Main Features and Advantages

Ultra-Fast Hazard Mitigation:



Multi-Spectral Discrimination: Dual UV/IR sensors eliminate nuisance tripping by ignoring non-hazardous light sources (e.g., maintenance lamps).



Zone-Selective Logic: Correlates light intensity across multiple sensors to pinpoint arc location, enabling targeted breaker tripping.



2 ms Light Detection: Fiber-optic sensors transmit arc signatures at light speed, triggering algorithms before current rises.



Advanced Diagnostics:



Sensor Health Monitoring: Continuous self-test verifies fiber integrity and lens cleanliness.



Energy Calibration: Calculates incident energy (cal/cm²) using IEEE 1584 equations for PPE compliance reporting.



Fault Reconstruction: Records pre-trip waveforms (128 samples/cycle) for forensic analysis.



Cyber-Secure Integration:



GOOSE Messaging: Issues trip commands via IEC 61850 GOOSE in <10>



Role-Based Access: Enforces NERC CIP compliance with password policies and audit logs.



Hardware Encryption: Secure boot with SHA-256 firmware validation.



Application Field

The PPD113B03-26-100110 is deployed in high-risk electrical infrastructures:



Power Generation: Protects 6.6–11 kV switchgear in turbine halls against arc flashes caused by busbar contamination.



Oil Refineries: Safeguards critical process unit MCCs where hydrocarbon vapors increase explosion risks.



Data Centers: Prevents cascade failures in 40.5 kV main distribution switchboards.



Metals Industry: Secures arc furnace switchgear against electrode breakage flashes.



Renewables: Mitigates DC arc risks in solar farm combiner boxes (with DC sensor kits).



Related Products



PPD113B01-10-150110: Base UV-only version for cost-sensitive retrofits.



REX521 Communication Module: Adds PROFIBUS DP to PPD113B03-26-100110.



TSD-1 Touch Display: Local HMI for relay status/diagnostics.



FOC-11 Fiber-Optic Sensor Kit: 20m armored cables with ST connectors.



REC615 Feeder Controller: Integrates with arc protection for complete bay control.



CPD100 CT Module: Provides current inputs for energy calculation.



ABB PPD113B03-26-100110 3BHE023584R2634

ABB PPD113B03-26-100110 3BHE023584R2634

Installation and Maintenance

Pre-installation preparation: Mount sensors per ABB Arc Guard Plan (AGP-001): UV/IR heads face busbars <1>50mm. Apply 24V test source to binary inputs before commissioning. Configure IEC 61850 SCL files via PCM600.

Maintenance recommendations: Clean sensor lenses quarterly in dusty environments using IPA wipes. Perform live test every 6 months via integrated LED simulator (validates light path integrity). Replace sensors after 15+ mechanical shocks. Update firmware annually to maintain SIL 2 certification.
