Description

The ABB GBU72 is a high-reliability thyristor gate driver unit from ABB’s Thyripak® series, designed for precision control of power semiconductors in medium-voltage drives and industrial power converters. This critical interface module translates low-voltage control signals into high-power triggering pulses for thyristor stacks, ensuring accurate switching in demanding applications like mining, metals processing, and energy infrastructure. The ABB GBU72 features triple-redundant optical isolation (up to 6kV), real-time thyristor health monitoring, and adaptive pulse shaping technology to compensate for temperature drift and component aging. Integrated within ABB’s ACS 6000 multi-drive systems, it enables deterministic torque/speed control while minimizing harmonic distortion.

As a core component of ABB’s power conversion ecosystem, the GBU72 delivers exceptional fault tolerance through dU/dt monitoring and DESAT protection, preventing false triggering during voltage transients. Its modular design supports hot-swapping for zero-downtime maintenance, while fiber-optic communication ensures noise-immune data transfer between control units and power cells. The ABB GBU72 sets industry benchmarks for operational safety in SIL 2 environments, certified under IEC 61800-5-1 for functional safety in power drive systems.

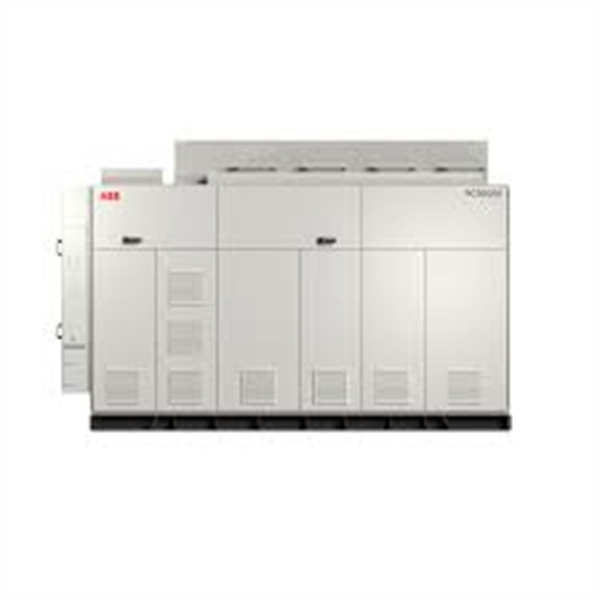

ABB GBU72

Technical Specifications

Main Features and Advantages

Ultra-Precise Triggering: The ABB GBU72 employs closed-loop feedback to generate symmetrical gate pulses with ±0.5° accuracy, ensuring balanced current sharing across thyristor strings. Its adaptive pulse-width modulation compensates for gate threshold variations caused by temperature fluctuations (-40°C to +125°C junction range), maintaining consistent turn-on characteristics throughout the product lifecycle.

Robust Protection Architecture: Featuring triple-redundant optical isolation, the GBU72 provides 6000V galvanic separation between control circuits and power stages. Integrated dU/dt monitoring detects critical voltage transients (>1000 V/μs), while DESAT protection instantly blocks pulses during short-circuit events. Continuous thermal modeling predicts thyristor junction temperatures, preventing thermal runaway.

Enhanced Diagnostics: Real-time monitoring of gate-cathode voltage (V_GK) and anode current (di/dt) enables predictive maintenance. The ABB GBU72 logs fault events with microsecond timestamps for root-cause analysis and supports remote health checks via ABB’s Ability™ digital platform. Its hot-swap capability allows module replacement without system shutdown, reducing MTTR by 70%.

Application Field

The ABB GBU72 excels in heavy industries requiring megawatt-scale power control. In metals production, it drives rolling mill main stands and arc furnace electrodes where ±0.1% speed regulation prevents strip breaks and electrode collisions. Mining operations deploy the GBU72 in gearless mill drives (GMDs) for 40-foot SAG mills, delivering smooth torque control under variable ore loads.

For energy infrastructure, this unit controls static VAR compensators (SVCs) stabilizing grid voltage at wind farms, and regulates HVDC converter stations with 99.97% availability. In cement manufacturing, the ABB GBU72 manages kiln drive systems exposed to extreme dust and vibration, while marine applications leverage its corrosion-resistant design for azimuth thruster control in ice-class vessels. Petrochemical plants utilize it for critical hydrocarbon compressor drives where thyristor reliability prevents flammable gas releases.

Related Products

ABB GBU81: High-power variant for 8kV/4kA thyristor stacks

ABB 5SHY3545L0006: IGCT power semiconductor for 6.5kV applications

ABB 3BSE018105R1 CI871: Communication interface for 800xA DCS integration

ABB SD823-3: Snubber module for overvoltage protection

ABB ACS 6000: Medium-voltage drive system utilizing GBU72

ABB TZIDC200: Positioner for valve control in power conversion cooling

ABB HVC850: High-voltage connector kit

ABB PPC915E: Redundant power supply for gate units

ABB GBU72

Installation and Maintenance

Pre-installation preparation: Verify thyristor compatibility and DC supply stability (±1% ripple) before mounting. Secure the ABB GBU72 vertically with M4 screws, maintaining 100mm clearance above/below for airflow. Route fiber-optic cables separately from power wiring (minimum bend radius 50mm). Apply silicone-free dielectric grease on high-voltage contacts. Calibrate control offsets using ABB’s Control Builder M software.

Maintenance recommendations: Quarterly inspections should check fiber-optic transceiver cleanliness using IEC 61300-3-35 standards. Monitor status LEDs: solid green (normal), blinking yellow (warning), red (critical fault). Replace fuses only after diagnosing root causes. Clean air vents with dry nitrogen (<2>
