The ABB PM511V08 is a high-performance process automation controller from ABB’s AC 800M series, engineered for mid-scale industrial automation applications requiring robust control and seamless integration. Designed for process industries, manufacturing, and infrastructure systems, this controller combines deterministic execution with flexible I/O connectivity to manage complex logic, sequencing, and regulatory control tasks. The PM511V08 leverages a 32-bit RISC processor with 2 MB user memory and supports IEC 61131-3 programming languages (LD, FBD, ST, SFC), enabling engineers to deploy customized control strategies efficiently. Integrated dual Ethernet ports (10/100 Mbps) facilitate real-time data exchange with HMI/SCADA systems and field devices via Modbus TCP, OPC UA, or IEC 61850 protocols. With its modular design and -25°C to +60°C operating range, the ABB PM511V08 delivers reliability in diverse environments—from food processing plants to water distribution networks—while serving as a scalable backbone for ABB’s 800xA and Freelance DCS ecosystems.

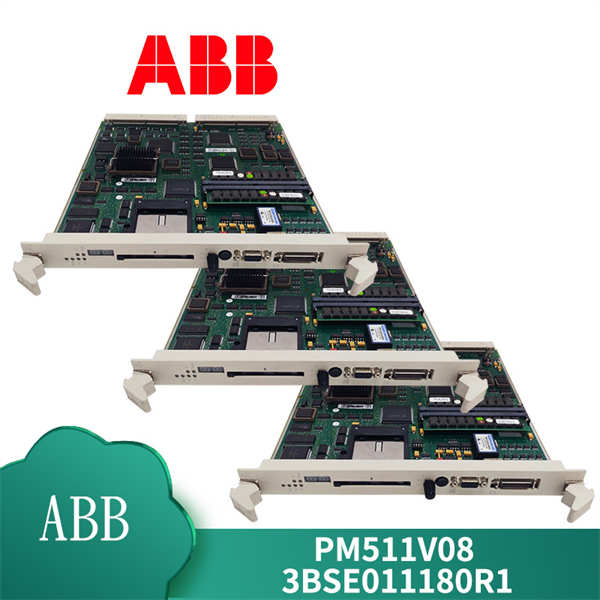

ABB PM511V08
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | PM511V08 |
| Manufacturer | ABB |
| Product Type | Programmable Automation Controller (PAC) |
| Processor | 32-bit RISC @ 200 MHz |
| User Memory | 2 MB (program) / 4 MB (data) |
| I/O Capacity | Up to 1,024 process variables |
| Programming Standards | IEC 61131-3 (LD, FBD, ST, SFC) |
| Communication Ports | 2 × Ethernet (10/100 Mbps), 1 × RS-232/485 |
| Protocols | Modbus TCP, OPC UA, IEC 61850, PROFIBUS DP (via modules) |
| Scan Cycle Time | 1 ms (minimum) |
| Operating Temperature | -25°C to +60°C |
| Power Supply | 24 VDC (±20%) |
| Power Consumption | 8 W (typical) |
| Housing Protection | IP20 |
| Certifications | CE, UL, cULus, RoHS |
| MTBF | 300,000 hours |
Main Features and Advantages
Deterministic control performance: Executes critical tasks with 1 ms cycle times, ensuring precision in time-sensitive applications like batch processing or motor synchronization. Hot-swappable RAM backup retains data during power loss for uninterrupted operation.
Seamless system integration: Native OPC UA support enables secure data sharing with IT/OT systems. Dual Ethernet ports allow daisy-chaining or network redundancy without switches. Compatible with PFEA111-20 PROFIBUS and CI854 Ethernet modules for fieldbus expansion.
Cyber-resilient architecture: Hardware-based secure boot and encrypted firmware updates (IEC 62443-4-2 compliant) prevent unauthorized access. Audit trails track configuration changes for regulatory compliance (e.g., FDA 21 CFR Part 11).
Application Field
The ABB PM511V08 excels in:
Chemical Processing: Manages reactor temperature/pressure control with PID loop tuning.
Water/Wastewater: Controls pump stations and filtration systems via Modbus TCP RTU integration.
Food & Beverage: Orchestrates CIP (Clean-in-Place) sequences with SFC programming.
HVAC Systems: Regulates energy distribution in smart buildings using IEC 61850 protocols.
Material Handling: Synchronizes conveyor networks with millisecond-level precision.
Related Products
PM564 – Entry-level AC 800M controller for smaller I/O counts.
PM581 – Safety-certified controller (SIL 2) for critical shutdown systems.
PM865 – High-end processor for large-scale DCS applications.
PFEA111-20 – PROFIBUS DP master module for field device connectivity.
CI854 – PROFINET controller for Ethernet-based I/O.
SD821 – Digital input module for sensor integration.
TA516 – Terminal board for wiring simplification.

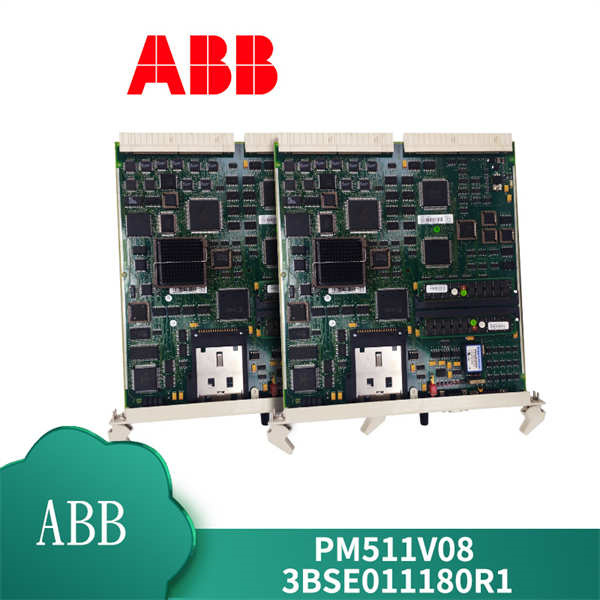

ABB PM511V08
Installation and Maintenance
Pre-installation preparation: Verify 24VDC power stability (±5% ripple). Ground controller chassis via 4 mm² copper cable to earth busbar. Configure IP addresses offline using Control Builder M+ software.
Maintenance recommendations: Monitor CPU load via embedded web server (<80>
