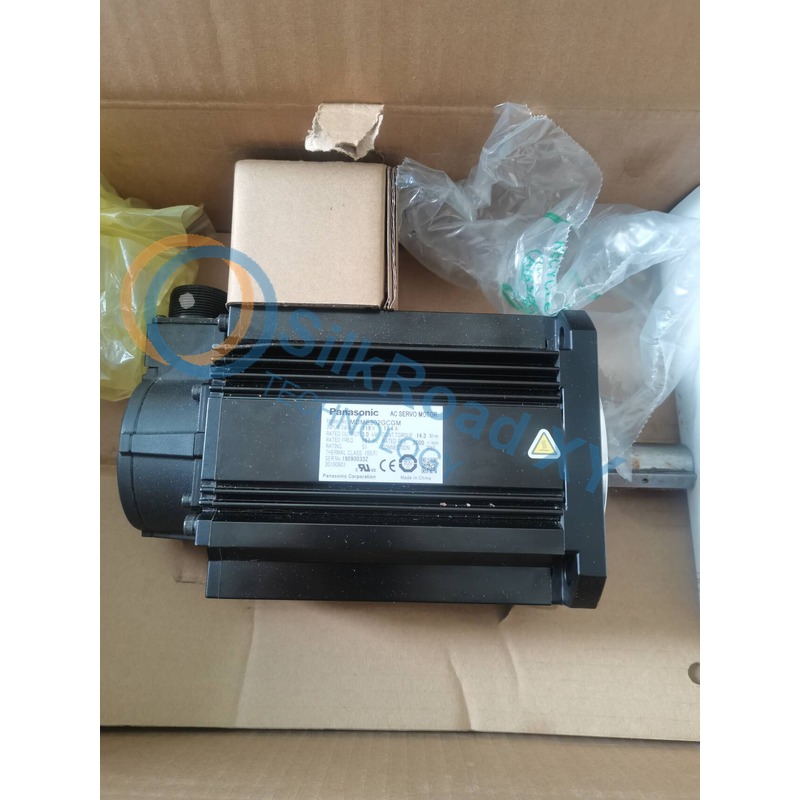

PANASONIC MINAS Servo Motor MDME302GCGM 3kW 200V In Stock Japan Original

Stock item - brand new and in stock (库存现货 / 松下现货), ships within 3-5 days.

The MDME302GCGM is the 3.0 kW middle-inertia servo motor of the Panasonic MINAS MDME series (A5 family platform). It delivers 14.3 N·m rated torque at 2000 r/min with a 43 N·m momentary peak, reads position through a 20-bit incremental encoder (1,048,576 ppr), and carries the IP65-rated housing with a factory oil seal on the shaft - the standard pairing for press-fit and gear-coupled loads on machine tools, robots and packaging machines running on 200 V supplies.

Details:

• Model: MDME302GCGM | Series: MINAS MDME (A5 platform), middle inertia

• Rated output: 3.0 kW | Voltage: 200 V | Rated current: 17.4 A rms

• Rated torque: 14.3 N·m @ 2000 r/min | Max speed: 3000 r/min | Peak torque: 43.0 N·m

• Encoder: 20-bit incremental, 1,048,576 ppr | Holding brake: without

• Protection: IP65 (except shaft and connector portions) | Oil seal: with | Shaft: with keyway

• Flange: 130 mm square | Mass: 11.0 kg

• Brand: Panasonic (Japan) | Condition: Brand New, Original | Stock: 库存现货, in stock

Lead Time: IN STOCK, 3-5 days after payment
Delivery: FedEx, SF Express, EMS
Condition: In Stock, Brand New
Payment Method: T/T, 30% deposit, 70% balance of payment
Price: Please contact us for further inquiry. All quotes are based on EXW excluding tax.
Remark: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
