DESCRIPTION

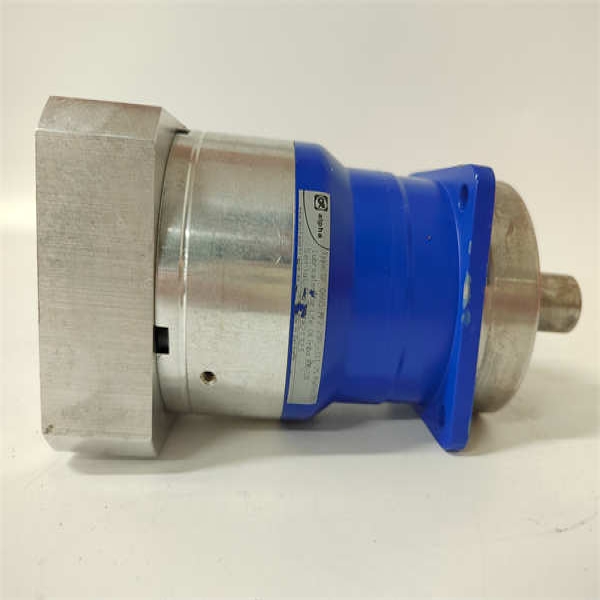

SP060S-MF2-20-1C1-2S is a precision planetary gear reducer designed by ALPHA,specifically designed to provide efficient and stable power transmission for industrial automation equipment.This reducer converts high-speed low torque input into low-speed high torque output through multi-stage planetary gear transmission.It is suitable for drive systems such as servo motors and stepper motors,and can achieve high-precision positioning and dynamic response.It is widely used in fields such as robots,CNC machine tools,and production lines.

Product parameters

model:SP060S-MF2-20-1C1-2S

Brand:ALPHA

Reduction ratio:20(secondary transmission)

Input speed:up to 4400 rpm

Rated torque:approximately 38 N·m

Maximum torque:approximately 57 N·m

Return gap:≤1 arcmin(high-precision positioning)

Efficiency:Single stage about 97%-98%,overall about 94%(secondary transmission)

Working temperature:-25°C to+70°C

Protection level:IP65(dustproof and waterproof)

Weight:Approximately 2 kg

Product specifications

Structural design:

Adopting helical gear transmission,low noise and low vibration.

The planetary gear bearings are designed with full needle rollers to enhance rigidity and load-bearing capacity.

The output shaft is integrated with the planetary carrier to ensure coaxiality and strength.

Installation method:flange installation,supports layout in any direction.

Compatible with mainstream servo motors such as Panasonic,Siemens,Yaskawa,etc.

Material process:The gear is made of 20CrMnTi alloy steel,carburized and quenched to HRC60,and ground to ensure accuracy.

Belonging series

Series:ALPHA SP series(high-performance planetary gearbox),suitable for high dynamic response and high-precision demand scenarios.

characteristic

High precision positioning:Return clearance≤1 arcmin,suitable for precise control.

High rigidity and load-bearing capacity:compact structure,strong radial/axial load capacity.

Efficient transmission:The helical gear design reduces energy loss and achieves an efficiency of over 94%.

Low noise vibration:Optimized tooth profile and assembly process for smooth operation.

Maintenance free design:Lifetime lubrication,IP65 protection,suitable for harsh environments.

Action and use

Core function:Reduce speed,increase torque,and match the power requirements of the motor and load.

Typical use:

Reduction and torque increase of servo/stepper motors.

High precision position control and dynamic response optimization.

Enhanced stability of complex transmission systems.

application area

Industrial automation:robot joints,robotic arms,conveyor belt drives.

CNC machine tools:feed axis,spindle transmission system.

Electronic manufacturing:semiconductor equipment,precision assembly lines.

Medical equipment:surgical robots,medical imaging equipment.

New energy:wind power variable pitch system,solar tracking device.

Aerospace:unmanned aerial vehicle gimbal,precision positioning mechanism.
