Description

216VC624 HESG324442R13-B is a key processing module in distributed control systems(DCS)such as ABB Symphony Plus,AC800,or AC800M,responsible for high-speed signal acquisition and logic processing.The module has 16 built-in analog inputs(AD conversion)and digital interfaces,which can filter,frequency analyze,and switch logic judgment real-time sampling signals,achieving fast processing of sensor signals such as temperature,pressure,and flow.ABB 216VC624 HESG324442R13-B provides stable control in complex control environments,particularly suitable for process industries and ship automation scenarios that require real-time decision-making.

This module is equipped with a 32-bit 80486DX-2 processor,paired with Flash memory and RAM,which can smoothly run complex control logic in the system.The communication interface includes RS-423,optional RS-232C,and parallel BUS communication with the back board to ensure high-speed information exchange with the main control unit.The module supports a 115-230 VAC power supply design and can operate stably in harsh environments ranging from-40°C to+70°C.It also has the ability to resist electromagnetic interference,ensuring high availability of industrial systems.

The module adopts the plug-in structure of S800 system,which can perform on-site heat exchange and significantly reduce maintenance costs.In addition,216VC624 HESG324442R13-B is compatible with buses such as PROFIBUS and Modbus,making it easy to expand network communication and suitable for large-scale production lines and intelligent device group control scenarios.

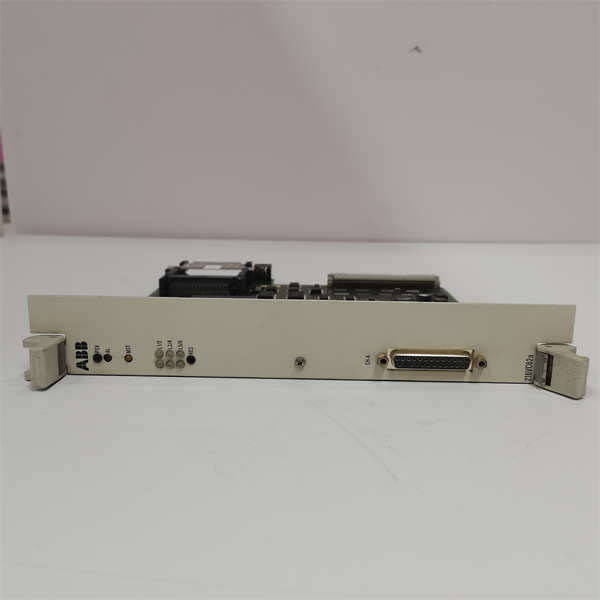

ABB 216VC62a HESG324442R13-B

Main features and advantages

High performance processing

The 216VC624 HESG324442R13-B is equipped with the 80486DX-2 processor,which combines high-precision sampling and DSP algorithms to achieve real-time signal processing and complex logic control.

Mixed signal support

Capable of mixed analog/digital acquisition,supporting AD conversion,filtering,frequency domain analysis and other processing to ensure accurate signal transmission.

Multi interface communication

Integrate RS-423/RS-232 interfaces with the back board BUS communication,support PROFIBUS/Modbus,multi protocol compatibility,and enhance system interconnection capabilities.

Strong anti-interference performance

The module design complies with industrial anti-interference standards,can withstand electromagnetic interference and vibration,and has EEPROM storage protection and power-off data storage.

Modular structure

Support hot plugging and quick replacement;Compatible with S800 standard rack,flexible deployment,and low maintenance cost.

Wide temperature power supply design

Supports 115-230 VAC power supply and can operate continuously in environments ranging from-40°C to+70°C,adapting to temperature and corrosion challenges.

technical specifications

Product Model:216VC624 HESG324442R13-B

Manufacturer:ABB

Product Type:Processor Unit Module

Processor type:80486DX-2(32-bit DSP)

Analog input:Supports 16 channel AD sampling

Communication interface:RS-423,RS-232(optional)

Backplane communication:S800 BUS/PROFIBUS/Modbus

Working voltage:115-230 VAC

Working temperature:-40°C to+70°C

Storage device:Flash+RAM+EEPROM

Hot swappable:Supports

Anti interference:Industrial grade electromagnetic compatibility design

application area

216VC624 HESG324442R13-B is widely used in scenarios such as process automation,petrochemicals,power,ship automation,and water treatment systems,undertaking digital and analog signal processing and control tasks.With its high-speed response and DSP capabilities,it can play a critical role in event driven systems,interlocking logic,safety control,and spectrum analysis equipment.The module can also synchronize multi-point acquisition and control,suitable for intelligent manufacturing and multi module group control architecture scenarios.

Related products

216VC624 HESG324442R13/E:with enhanced size or interface version module.

216EA62:24 channel analog input module,expanding signal acquisition density.

216AB61:32 digital output module,used for peripheral linkage signal transmission.

216DB61:16 input 16 output I/O module with trip function.

216NG63A:24 V DC power module,supporting dual redundant power supply.

216VC40B:Upgraded version processing module with higher performance and interface density.

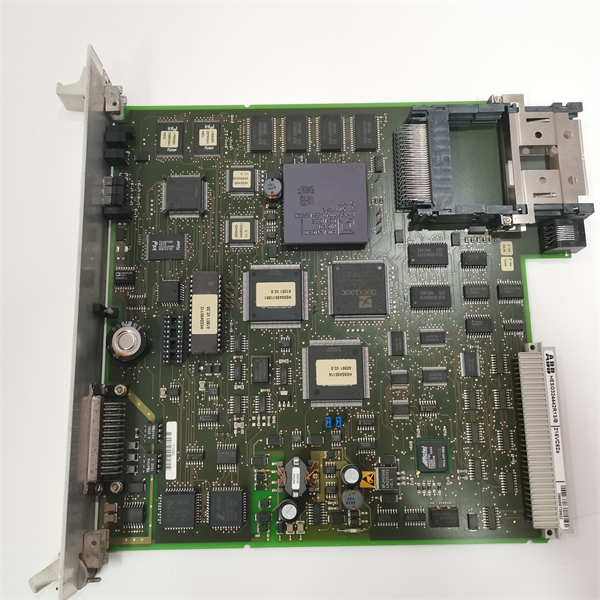

ABB 216VC62a HESG324442R13-B

Installation and maintenance

Preparation before installation:Please turn off the system power and disconnect the backplane power supply first.Ensure correct wiring and reliable grounding of the bus and signal lines.Insert 216VC624 HESG324442R13-B into the corresponding slot of the S800 standard rack,and establish a stable connection with the bus through the backplane,and connect it to 115-230 VAC power supply.

Maintenance suggestion:During system operation,the processing status and communication health can be viewed through LED indicators and DCS software.If any abnormalities are found,they can be replaced on-site by hot plugging without shutting down the machine.It is recommended to check the module interface connection and heat dissipation hole status every 6 months,and regularly backup the Flash storage parameters to prevent data loss.
