Description

The BENTLY 60M100-00 is a high-precision industrial accelerometer from Bently Nevada (a Baker Hughes business), engineered for continuous vibration monitoring of critical rotating machinery. As part of the legacy 60M series, this rugged velocity sensor delivers reliable mechanical fault detection in turbines, compressors, pumps, and fans operating under extreme conditions. The BENTLY 60M100-00 converts mechanical vibration into a proportional electrical signal (100 mV/in/s sensitivity) with exceptional signal-to-noise ratio, enabling early identification of imbalance, misalignment, bearing wear, and resonance issues. Its hermetically sealed, stainless steel housing withstands temperatures from -50°C to +120°C and environmental contaminants like steam, oil, and corrosive gases.

Designed for permanent installation, the BENTLY 60M100-00 features integral cable or terminal box connections for seamless integration with Bently Nevada’s 3300 XL monitoring systems. The sensor’s non-contact measurement principle eliminates wear, while its low-output impedance (<500>BENTLY 60M100-00 serves as a frontline defense against catastrophic machinery failures in mission-critical applications.<!--500-->

Technical Specifications

Main Features and Advantages

Robust Machinery Protection: Engineered for 24/7 operation in harsh environments, the BENTLY 60M100-00 detects incipient failures with high-frequency resolution. Hermetic sealing prevents moisture ingress in steam turbine applications. The stainless steel construction resolves chemical corrosion in refinery processes.

Plug-and-Play Reliability: Self-powered design eliminates wiring errors and external power failures. Wide frequency response (10 Hz–1 kHz) captures both low-speed gear mesh and high-frequency bearing defects. Calibration traceability to NIST standards ensures measurement accuracy over decades.

Simplified Integration: Direct compatibility with Bently Nevada’s 3300/3500 monitoring systems reduces engineering overhead. Hazardous area certifications (ATEX/IECEx) allow installation in explosive atmospheres without additional barriers. The BENTLY 60M100-00 maintains stable output across temperature fluctuations (±3% deviation from -30°C to 100°C).

Maintenance Optimization: Zero moving parts eliminate sensor wear. Continuous diagnostics via connected monitoring systems predict sensor health. Field-proven design reduces false alarms through electromagnetic interference (EMI) immunity up to 30 V/m.

Application Field

The BENTLY 60M100-00 excels in energy and process industries requiring uncompromising machinery protection:

Power Generation: Continuous vibration monitoring of steam turbine bearings and boiler feed pumps

Oil & Gas: Compressor train surveillance in offshore platforms and LNG liquefaction trains

Petrochemical: Cracking gas compressor protection in ethylene plants

Water Treatment: Critical pump monitoring in desalination facilities

Mining & Metals: Fan and blower protection in pelletizing plants

Marine: Main engine vibration surveillance on vessels

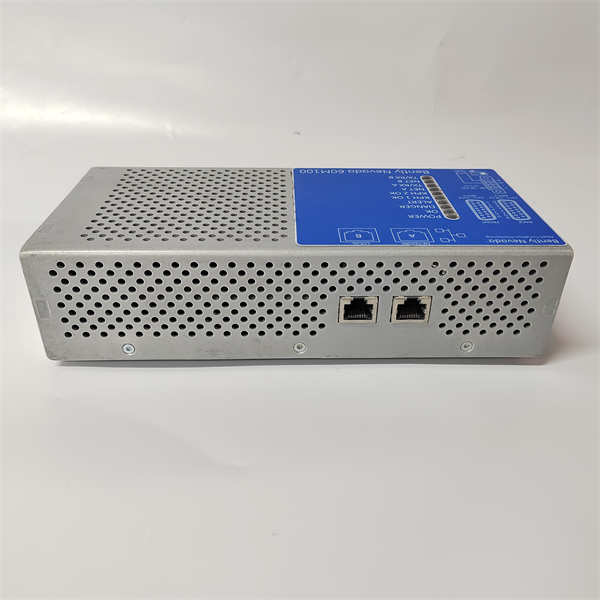

BENTLY 60M100-00

Related Products

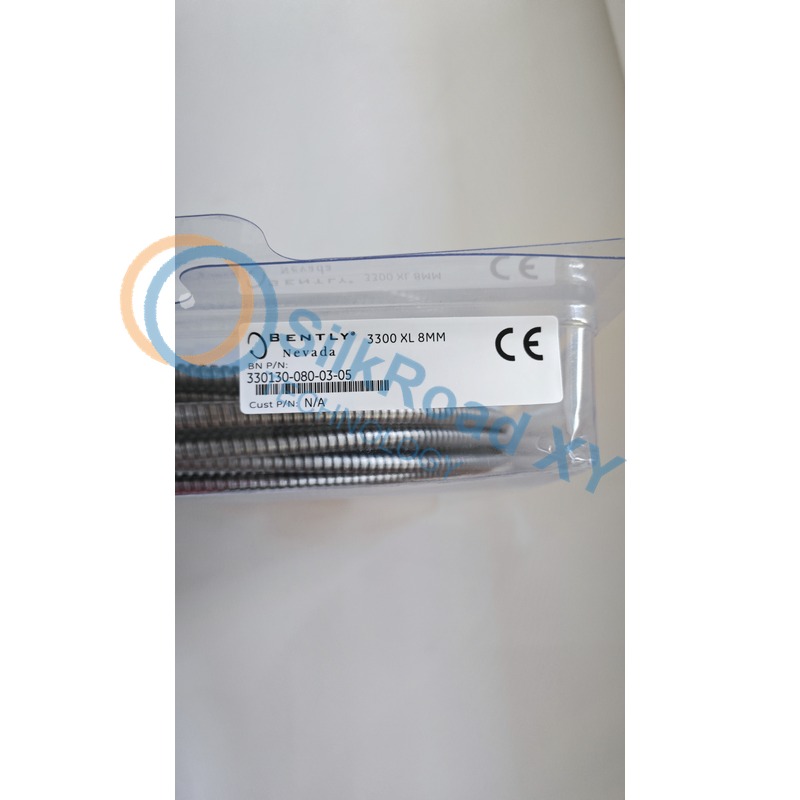

BENTLY 3300 XL 8mm Proximitor: Eddy-current displacement sensor for shaft vibration

BENTLY 3500/22M Transient Data Interface: Module for 60M100-00 signal processing

BENTLY 1900/65A Proximitor Cable: High-temperature coaxial cable for sensor networks

BENTLY 330130-040-00-00: Proximity transducer system with integrated monitor

BENTLY 133396-01: Accelerometer mounting bracket for vertical surfaces

Installation and Maintenance

Pre-installation preparation: Verify mounting surface flatness (< 0>1 m separation from >480 VAC lines).

Maintenance recommendations: Perform baseline readings after installation. Check cable integrity annually for abrasion/chemical damage. Calibrate every 36 months using portable shaker table. Replace if impact damage exceeds 500 g. Never disassemble the BENTLY 60M100-00 – return to certified service center for repair.
