Description

216VC624 HESG324442R112-F is a processing core board of ABB Symphony Plus or AC800 series,capable of handling complex control tasks.It integrates multi-channel analog inputs and digital interfaces,supports advanced algorithms such as signal filtering and frequency analysis,and improves system response speed with DSP technology.The module is equipped with an 80486DX-2 processor and works in conjunction with Flash,RAM,and EEPROM,making complex data processing and exception protection smoother and more stable.

This processing board provides Ethernet and RS-232/RS-423 communication capabilities,and is connected to other modules with high bandwidth through the S800 bus.The board follows ABB plug-in design specifications and can achieve hot swappable maintenance,significantly reducing maintenance costs.The board supports industrial grade communication protocols such as PROFIBUS/Modbus,which facilitates on-site system expansion and secondary development.

The module has a working temperature range of**-40°C to+70°C**,which can adapt to high vibration and strong electromagnetic environments.Its anti-interference ability and structural reliability are particularly suitable for heavy industry scenarios such as power plants,petrochemicals,and shipbuilding.

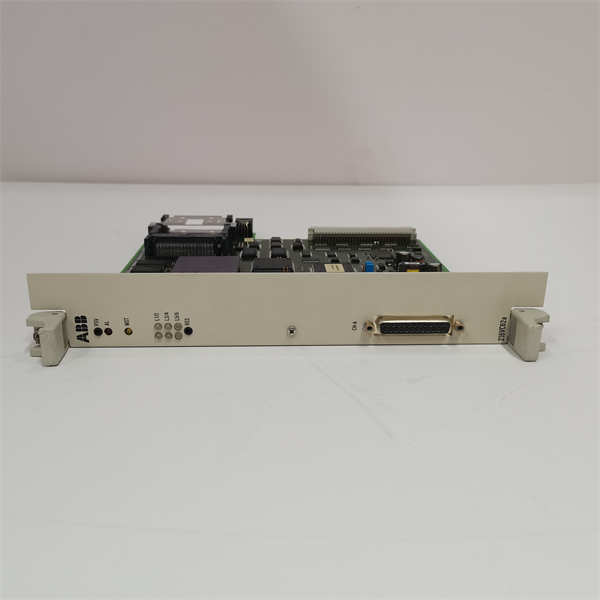

ABB 216VC62a HESG324442R112-F

Main features and advantages

Efficient CPU processing

Equipped with 80486DX-2 CPU and DSP algorithm,it has powerful real-time data processing capability,realizing complex control logic and spectrum analysis.

Mixed signal acquisition

Supports mixed digital and analog inputs,with AD conversion,filtering,and compensation mechanisms to improve measurement accuracy and system stability.

Multi protocol communication

Ethernet and RS-232/RS-423 interfaces,supporting PROFIBUS/Modbus for easy integration with SCADA,PLC,and DCS systems.

Hot swappable modular design

S800 system is standard compatible,supports on-site hot plugging,easy maintenance,and will not affect system operation.

Industrial grade weather resistance

-40-+70°C,resistant to electromagnetic interference,and supports high anti vibration structures,suitable for deployment in harsh industrial environments.

System expansion friendly

Support bus expansion and parallel connection of functional modules,facilitating the management of complex multitasking automation system requirements.

technical specifications

Product Model:216VC624 HESG324442R112-F

Manufacturer:ABB

Product type:Processor Unit Module

CPU:80486DX‑2+DSP

Analog input:supports mixed signal acquisition

Communication interface:Ethernet,RS-232/RS-423

Backplane bus:S800 BUS

Supply voltage:115-230 VAC

Working temperature:-40°C to+70°C

Storage type:Flash+RAM+EEPROM

Hot swappable:Supports

application area

216VC62a HESG324442R112‑F is widely used in power plant control system,petrochemical industry,ship automation and high-end manufacturing workshops.It can process complex measurement signals in real time and execute fast logical decisions.It is the key core of interlocking control,spectrum monitoring,safety protection,and equipment synchronization control,and is suitable for high reliability scenarios and dynamic real-time control requirements.

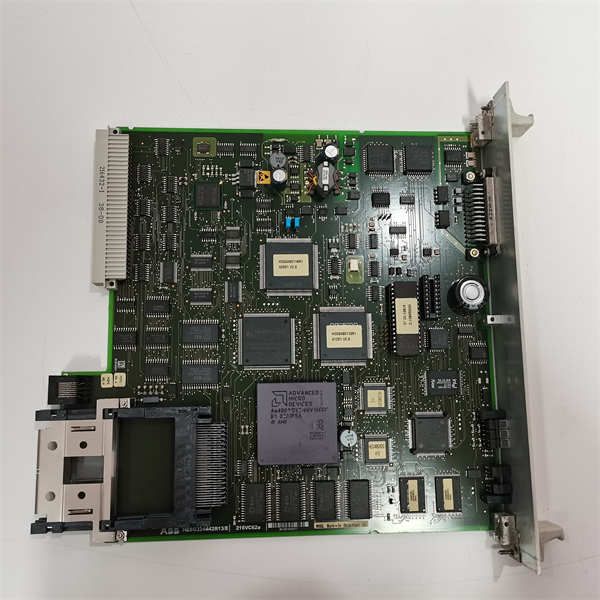

ABB 216VC62a HESG324442R112-F

Related products

216VC624 HESG324442R13/B:Previous generation processing module with stable functionality but without R112 upgrade.

216EA62:Analog input module,expanding the number of signal channels.

216AB61:Digital output module,responsible for controlling actuator commands.

216DB61:16 input/output module with short-circuit protection function.

216NG63A:24 V DC power module,providing power for I/O and processing units.

216VC62b:Upgraded version of 216VC624 series,with higher performance and interface density.

Installation and maintenance

Preparation before installation:Turn off the DCS system power and disconnect the backplane power supply.After ensuring that the slot and guide rail are clean and reliably grounded,insert 216VC624 HESG324442R112-F vertically into the corresponding slot,fasten the buckle,and connect it to the communication and power supply lines.

Maintenance suggestion:Regularly(every 6 months)check the communication interface,power supply,and heat dissipation status.Monitor the status of the board through system monitoring and promptly diagnose faults based on LED indications.If any abnormalities occur,the hot swappable feature can be used to quickly replace them,avoiding downtime and improving the continuous operation capability of the control system.
