Description

Bently Nevada 3500/93 135785-02C is a display interface module (Display Interface I/O) in the 3500 series mechanical protection system, responsible for transmitting real-time monitoring data of the entire system to external display terminals, such as 3500/94 VGA displays, upper computer systems, DCS, etc. It is an important component of the human-machine interface system.

It does not process vibration signals itself, but is responsible for outputting processed data images/text content, channel alarm status, system configuration and other information. It is an essential tool for on-site engineers to check faults, observe trends, and adjust parameters.

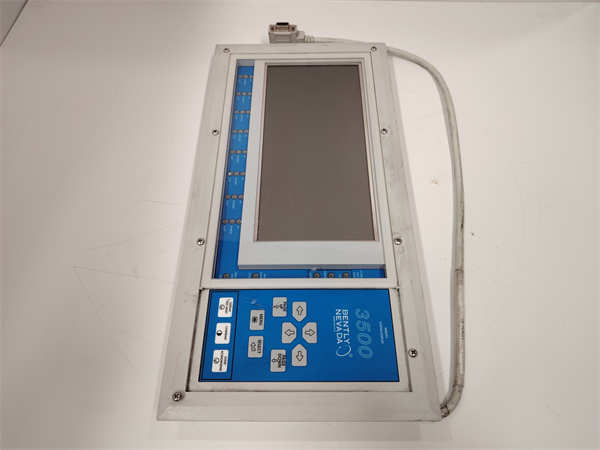

Bently 3500/93 135785-02C

?  Detailed Introduction

✅  Model disassembly

3500/93: Represents the model of the display interface module in the Bently system

135785-02C: is the specific version number, where “02C” represents the firmware/hardware revision number, supporting specific system versions

✅  Module positioning

Used to connect the system backplane with external display/communication devices

Usually used in conjunction with 3500/94 (VGA display), System 1 software platform, OPC server, etc

Provide graphical or character displays of system operating status, alarm status, device trends, etc

?  Technical specifications and parameters

Module Function: Display/Data Interface

Adaptation System: Bently Nevada 3500 Series

Data transmission format: ASCII character/graphic format

Interface type: RS-232/VGA/dedicated interface

Supporting display equipment: 3500/94 VGA monitor, HMI screen, upper industrial computer

Channel support: can output all configured monitoring channel data

Status display: Normal, Warning, Danger, Channel failure, Power on status

Working voltage: Powered by 3500 rack (no external power supply)

Working temperature range: 0 ℃~+60 ℃ (industrial standard)

Installation method: Plug in card, requires 3500 rack and I/O backplane

Firmware version: Fixed at 135785-02C, compatible with the corresponding system version

?  Product Features

✅  Core module of human-machine interface

As an HMI bridge, outputting system operation information in images/text is very intuitive

✅  Used in conjunction with VGA display module

Can work in conjunction with the 3500/94 module to achieve real-time dynamic display on the screen

✅  Support system alarm display

Real time display of alarm status for all monitoring points: OK, Alert, Danger, etc

✅  High reliability, plug-in design

Slot installation, easy maintenance, real-time and stable data transmission

✅  Compatible with OPC system platform

Can access System 1, PI system, etc. for trend analysis and remote operation and maintenance

?  application area

Mechanical condition monitoring system for steam turbine, compressor, and pump units

Online diagnostic system for power plants, refineries, and chemical enterprises’ units

Protection systems for key equipment such as large wind turbines, gas turbines, centrifugal compressors, etc

Support multi-channel status output to the central control room, large screen, or HMI station

?  Recommended Related Modules

3500/94: VGA Graphics Display Module

3500/22M: Communication Gateway Module

3500/42M: Vibration Monitoring Module

3500/32M: Relay Output Module

3500/05: Rack main frame

3500/15: Power module

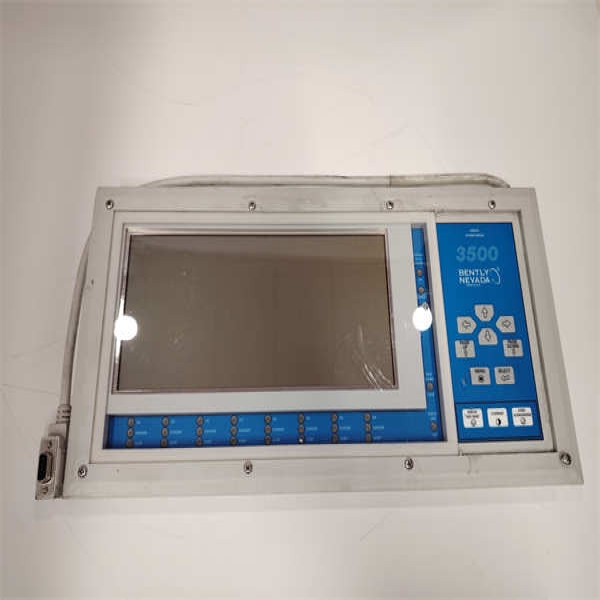

Bently 3500/93 135785-02C

?️  Installation and maintenance recommendations

Before installation, ensure that the power supply of the rack slot is turned off to avoid hot plugging and damaging the interface

Check if the module status light is on properly after insertion (green light indicates OK)

If it is compatible with 3500/94 display, it is necessary to connect the VGA signal cable and independent power supply

It is recommended to regularly check the good contact of module interfaces and backboards to avoid virtual connections

When ‘no display/garbled display’ appears, priority should be given to checking the compatibility between the display cable and module firmware
