Description

The SCANLAB INTELLISCANDE III14-532NM represents the pinnacle of precision laser beam steering technology, engineered for high-performance industrial and scientific applications. As a third-generation digital galvanometer scanner from SCANLAB, this device integrates advanced motor control, high-resolution encoders, and wavelength-specific optics to deliver exceptional accuracy in dynamic laser positioning. Designed for 532nm green lasers, the SCANLAB INTELLISCANDE III14-532NM features a 14mm mirror aperture optimized for minimal inertia and maximal beam clarity, enabling micron-level repeatability even at accelerations exceeding 50,000 rad/s². Its embedded digital drive electronics simplify integration while providing real-time diagnostics, reducing system complexity for OEMs.

Positioned within SCANLAB’s flagship INTELLISCANDE III series, this scanner excels in applications demanding ultra-fast, distortion-free beam deflection. The SCANLAB INTELLISCANDE III14-532NM operates as a single-axis solution, typically paired with a complementary unit for 2D systems. Its value lies in enabling high-throughput processes like micro-machining copper or transparent materials, where 532nm lasers offer superior absorption. By combining robust industrial design with sub-arcsecond positional feedback, the SCANLAB INTELLISCANDE III14-532NM ensures longevity in 24/7 manufacturing environments while maintaining SCANLAB’s reputation for zero-maintenance reliability.

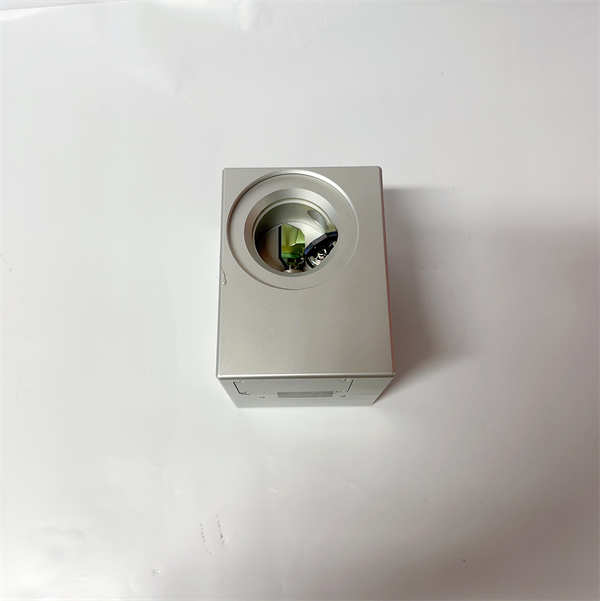

INTELLISCANDE III14-532NM SCANLAB

Technical Specifications

Main Features and Advantages

Precision Engineering: The SCANLAB INTELLISCANDE III14-532NM incorporates direct-shaft digital encoders that eliminate mechanical hysteresis, achieving positional repeatability under 1 μrad. This enables flawless vector marking on curved surfaces and high-aspect-ratio micro-drilling. Mirror coatings are specifically tuned for 532nm wavelength, ensuring >99.8% reflectivity to minimize laser power loss.

Integrated Intelligence: Onboard digital drive electronics provide real-time monitoring of temperature, vibration, and load conditions, preempting maintenance needs. The SPI interface allows daisy-chaining multiple scanners, reducing cabling by 70% compared to analog alternatives. Third-generation torque motors in the SCANLAB INTELLISCANDE III14-532NM deliver industry-leading acceleration while maintaining thermal stability during continuous operation.

Robust Performance: Hermetically sealed bearings and IP54-rated housing make this scanner resilient in dusty industrial environments. Its low-inertia 14mm mirror enables rapid direction changes without overshoot, critical for polygon-free contour scanning. The SCANLAB INTELLISCANDE III14-532NM also supports SCANLAB’s “Active Vibration Compensation” firmware, countering external disturbances in high-speed production lines.

Application Field

The SCANLAB INTELLISCANDE III14-532NM excels in precision manufacturing sectors, particularly where green lasers outperform IR alternatives. In electronics manufacturing, it drives PCB microvia drilling systems, leveraging 532nm’s copper absorption to create 20μm holes at 10,000 holes/second. Solar cell scribing lines utilize the scanner’s dynamic focus control for P2/P3 patterning of thin-film photovoltaics with ±3μm positional tolerance.

Medical device manufacturers deploy the SCANLAB INTELLISCANDE III14-532NM in stent cutting systems, where its vibration resistance ensures smooth edges on nitinol tubes. Scientific applications include confocal microscopy for live-cell imaging, capitalizing on the wavelength’s low phototoxicity. The scanner also enables high-speed marking of glass and transparent polymers in consumer goods production, solving traditional contrast challenges through nonlinear absorption effects unique to 532nm pulses.

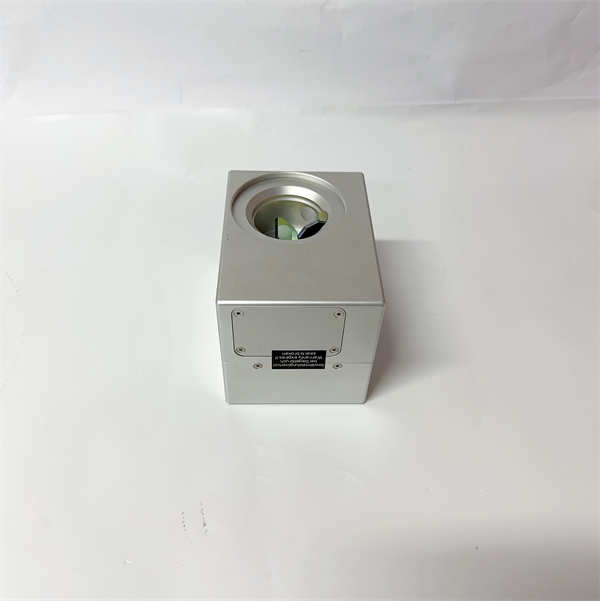

INTELLISCANDE III14-532NM SCANLAB

Related Products

SCANLAB INTELLISCANDE III20-1064NM: Larger 20mm mirror optimized for 1064nm IR lasers, ideal for deep engraving.

SCANLAB scanCube 14: Compact scan head integrating two INTELLISCANDE III scanners for 2D/3D systems.

SCANLAB RTC6: Dedicated motion controller supporting INTELLISCANDE III’s SPI protocol.

SCANLAB intelliSCAN DELTA 30: High-power variant for kW-class lasers with water-cooling.

SCANLAB INTELLISCANDE III14-355NM: UV-optimized version for semiconductor processing.

Installation and Maintenance

Pre-installation preparation: Verify mounting surface flatness (< 0>SCANLAB INTELLISCANDE III14-532NM. Ensure ambient EMI levels comply with EN 61000-6-2, as high-frequency interference may affect encoder signals. Route power cables separately from data lines using shielded twisted pairs.

Maintenance recommendations: Perform annual bearing lubrication using SCANLAB-approved fluorinated grease. Monitor internal temperature via diagnostic pins; sustained >45°C triggers automatic derating. Clean mirror surfaces quarterly with CO₂ snow jet, avoiding contact methods. Calibrate positional feedback using SCANLAB’s “Calibri” software suite after 2,000 operational hours.
