Description

The ABB XVC768101 3BHB007211R101 is a next-generation Multi-Protocol Motion Interface Module designed for ABB’s AC 800M PM866 controller series, delivering unparalleled flexibility in complex motion control architectures. As a cornerstone of ABB’s System 800xA automation ecosystem, this module bridges high-level control logic with servo drives, hydraulic valves, and stepper motors across PROFINET IRT, EtherCAT, and Powerlink networks simultaneously. The XVC768101 orchestrates up to 64 axes with deterministic cycle times down to 250 µs, enabling nanosecond-level synchronization for precision tasks like robotic welding paths or rotary printing registration. Its integrated safety logic (STO/SBC/SLS) complies with SIL 3/PLe standards, allowing safety-critical functions to execute directly at the motion layer. Engineered for Industry 4.0 readiness, the ABB XVC768101 embeds OPC UA Pub/Sub for real-time data streaming to MES/ERP systems while maintaining motion integrity—making it indispensable for adaptive manufacturing cells requiring both agility and precision.

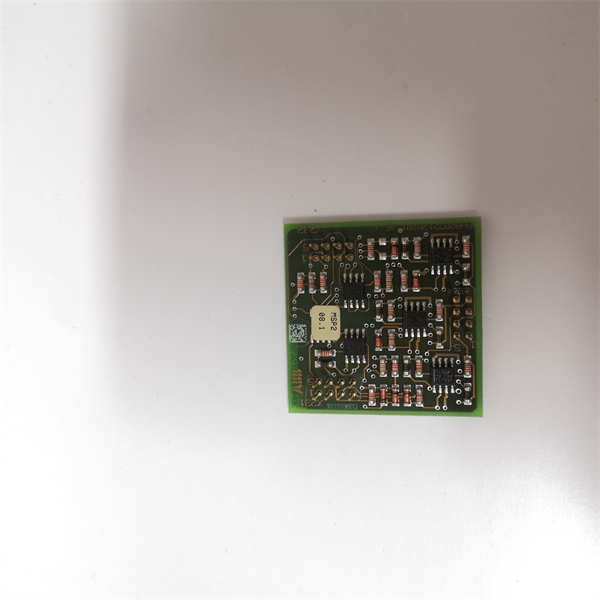

ABB XVC768101 3BHB007211R101

Technical Specifications

Main Features and Advantages

Multi-Network Convergence: Uniquely operates PROFINET IRT, EtherCAT, and POWERLINK networks in parallel, eliminating protocol gateways. The XVC768101 dynamically allocates bandwidth for motion streams versus I/O data, reducing cycle time variability by 90%.

Integrated Functional Safety: Hardware-based safety logic executes safety functions (STO, SS1) with ≤2 ms response time. Dual-channel monitoring of torque/position prevents hazardous motion without external safety relays.

Edge Intelligence: On-module ARM Cortex-R5 processors run predictive algorithms for bearing wear detection and thermal modeling. Compressed vibration spectra stream directly to ABB Ability™ cloud via OPC UA.

Cyber-Resilient Architecture: Implements secure boot with TPM 2.0 encryption and whitelisted network traffic control. Motion trajectories remain encrypted end-to-end.

Scalable Synchronization: IEEE 1588v2 Precision Time Protocol (PTP) enables cross-network timestamping at 100 ns resolution—critical for multi-robot collision avoidance.

Application Field

The ABB XVC768101 excels in multi-vendor automation environments demanding cross-protocol coordination. In automotive body shops, it synchronizes KUKA robots (PROFINET) with Beckhoff conveyors (EtherCAT) while maintaining 0.1mm weld path accuracy. Semiconductor facilities leverage its vacuum-rated operation for stepper motor control in wafer handling robots within ISO Class 1 cleanrooms.

For packaging lines, the module enables “flying splice” operations by electronically gearing servo-driven unwinders to printing cylinders at 800 m/min. In renewable energy, it coordinates pitch control across 100+ wind turbine blades using POWERLINK’s deterministic multicast. The XVC768101’s SIL 3 compliance allows hydraulic press force control in aerospace forging—where overload protection must trigger within 1 ms.

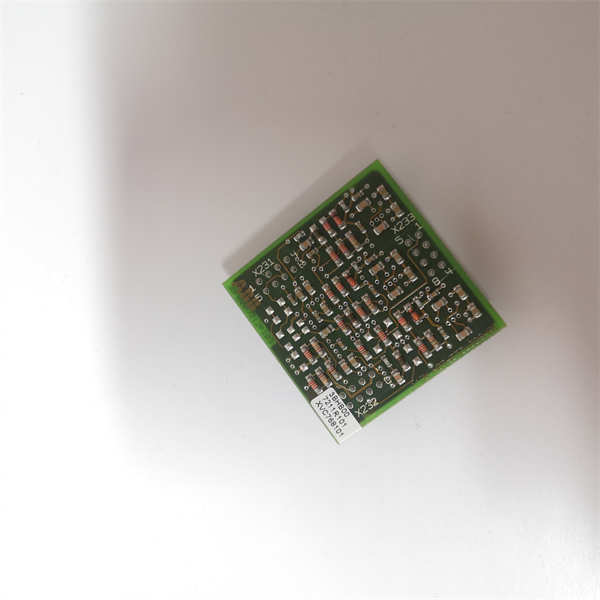

ABB XVC768101 3BHB007211R101

Related Products

PM866 3BSE050198R1: Primary controller for motion logic execution

HDS823 3BSE018741R1: ABB’s high-density servo drive for direct integration

CI873 3BSE056768R1: Ethernet APL interface for process data uplink

SA801F 3BSE022366R1: Safety I/O module for expanded safety functions

TB850 3BSE020886R1: Terminal board for multi-encoder feedback

PP885 3BSE042235R1: Redundant 24V power supply for motion racks

DSQC668: PROFINET device module for distributed I/O

Installation and Maintenance

Pre-installation preparation: Validate network topology using ABB’s Network Manager tool. Pre-configure axis parameters in Motion Builder software. Ensure fiber-optic cables meet OM4 standards for IRT traffic. Implement star-quad cabling for encoder signals in EMI-heavy environments.

Maintenance recommendations: Quarterly network diagnostics via Precision Time Protocol (PTP) grandmaster clocks. Monitor SFP temperature logs—replace if operating >70°C. Recalibrate safety limits after mechanical overhaul. Use ABB-approved static wrist straps when handling the XVC768101.
