The Reliance Electric 57C409 is a digital control module designed for precision regulation of DC motor drives in industrial automation systems. As part of Reliance’s SPRINT DC drive family (now Rockwell Automation), this board serves as the intelligence hub for converters ranging from 5–1500 HP, executing closed-loop speed/torque control with advanced algorithms. The Reliance Electric 57C409 integrates dual-microprocessor architecture (16-bit DSP + logic controller) to achieve ±0.1% speed regulation and<10>57C409 delivers unparalleled control stability for mission-critical processes.

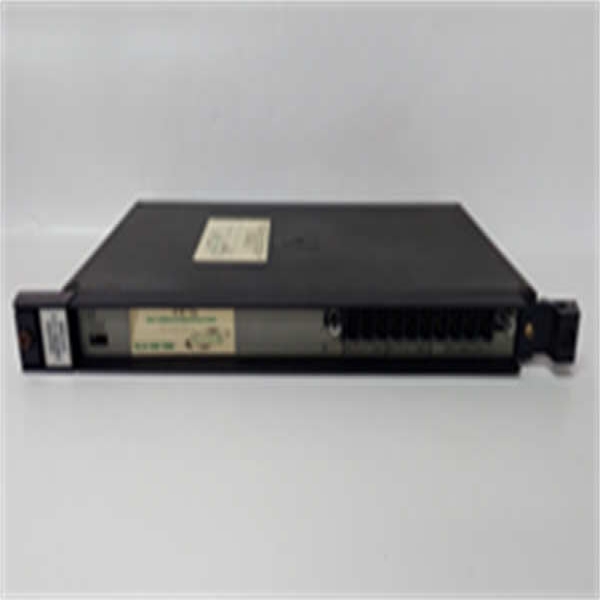

57C409 RELIANCE
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 57C409 |
| Manufacturer | Reliance Electric (Rockwell Automation) |
| Product Type | DC Drive Control Board |
| Input Voltage | 24 V DC ±10% (Isolated) |
| Microprocessors | 16-bit DSP + Dedicated Logic Controller |
| Control Modes | Speed, Torque, IR Compensation |
| Speed Regulation | ±0.1% (Base Speed) |
| Torque Response | <10> |
| Feedback Support | Tach (0–180 V DC), Encoder (A/B/Z), Resolver |
| Analog Inputs | 3 (0–10 V DC / 4–20 mA) |
| Analog Outputs | 2 (0–10 V DC) |
| Digital I/O | 4 Programmable Inputs, 2 Relay Outputs |
| Communication | RS-485 (Standard), DeviceNet (Optional) |
| Operating Temperature | 0°C to +55°C (Derating >40°C) |
| Vibration Resistance | 1g @ 10–150 Hz |
| Certifications | UL, CE, cULus |
Main Features and Advantages
Advanced Control Algorithms: The Reliance Electric 57C409 employs adaptive PID tuning with load inertia compensation, eliminating mechanical oscillations in high-inertia systems. Its “flying start” function synchronizes drive output to rotating motors within 100 ms, preventing current surges during power recovery.
Diagnostic Intelligence: Integrated waveform capture (512-sample buffer) records speed, current, and voltage during faults. Front-panel LEDs indicate status (Run/Fault/Tuning), while password-protected access prevents unauthorized parameter changes.
Application Flexibility: Pre-programmed macros for common machines (e.g., winders, extruders) reduce commissioning time by 70%. Custom logic can be implemented via function block programming.
Robust Design: Conformal-coated PCB withstands 95% humidity without corrosion. Gold-plated connectors ensure reliable contact in vibrating environments. Hot-swappable when used with redundant controllers.
Application Field
The Reliance Electric 57C409 excels in high-performance DC drive applications:
Steel Industry: Precision speed synchronization for tandem rolling mill stands
Paper Converting: Tension control in rewinding machines with dancer feedback
Mining: Torque-limiting for conveyor drives during jam conditions
Rubber Processing: IR compensation for extruder motors under load fluctuations
Marine: Dynamic braking control for shipboard winch systems
57C409 RELIANCE
Related Products
Reliance 57C410: Power supply module for 57C409 control board
Reliance 57C416: I/O expansion card for additional analog/digital signals
Reliance 0-52700-3: DeviceNet communication option module
Reliance 57C467: Gate driver board for SCR bridges
Reliance 57C402: Operator interface panel with LCD display
Rockwell 25B-D1P7N104: Modern AC drive alternative for DC retrofit
Reliance 57A600: Heat sink assembly for drive power section
Reliance 57C438: Current sensor board for motor feedback
