Description

The TOSHIBA HC422B is a high-performance, single-axis servo amplifier module from Toshiba’s extensive lineup of industrial motion control products. Designed as a critical drive component, this amplifier works in tandem with Toshiba’s proprietary servo motors to deliver precise and dynamic control of speed, torque, and position for industrial machinery. The core function of the TOSHIBA HC422B is to convert a control signal (typically from a PLC or motion controller) into high-power three-phase AC output to drive a servo motor with exceptional accuracy and responsiveness. It is engineered to meet the rigorous demands of high-speed automation, providing the muscle for precise movements in applications ranging from complex CNC machining to high-throughput packaging lines. The integration of advanced control algorithms within the TOSHIBA HC422B ensures smooth operation, minimizes settling time, and suppresses vibration, thereby enhancing overall equipment effectiveness (OEE) and production quality. Its robust design and reliable performance make it a trusted choice for engineers seeking to optimize automated motion systems.

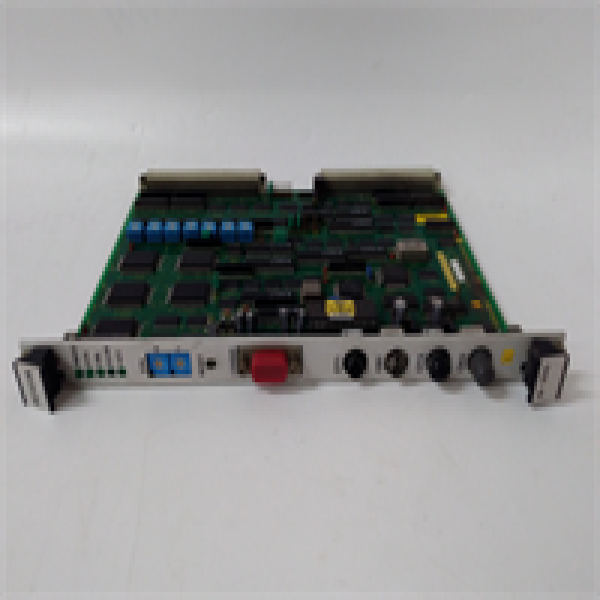

HC422B TOSHIBA

Technical Specifications

Main Features and Advantages

High Performance and Precision: The TOSHIBA HC422B is engineered for high-speed, high-precision positioning. It features advanced auto-tuning功能 that automatically adjusts control gains to match the mechanical load, ensuring optimal performance with minimal setup time. This results in shorter cycle times, higher accuracy, and improved surface finish in machining applications.

Robust Connectivity and Ease of Integration: Equipped with a standard RS-485 interface supporting the Modbus RTU protocol, the TOSHIBA HC422B can be seamlessly integrated into a wide range of automation networks for centralized monitoring and parameter configuration. Its comprehensive set of digital I/O points allows for flexible interconnection with programmable logic controllers (PLCs) and other peripheral devices, simplifying system design and wiring.

Superior Reliability and Built-in Protection: Designed for the harsh environment of the factory floor, this servo drive incorporates multiple layers of protection. Functions for overcurrent, overvoltage, overload, and overheat safeguarding are standard, ensuring the longevity of both the TOSHIBA HC422B amplifier itself and the servo motor it drives. This robust design minimizes unplanned downtime and reduces maintenance costs.

Compact and Efficient Design: Despite its high power output, the TOSHIBA HC422B features a compact form factor that saves valuable panel space. Utilizing highly efficient IGBT power technology, it generates less heat, contributing to higher overall system efficiency and reliability.

Application Field

The TOSHIBA HC422B finds its primary application in industrial automation scenarios demanding precise and dynamic motion control. It is a cornerstone technology in computer numerical control (CNC) machinery, including machining centers, lathes, and grinders, where it drives axes for cutting, milling, and shaping with micron-level accuracy. In the packaging industry, the TOSHIBA HC422B is deployed in high-speed wrappers, fillers, and cartoning machines to control the movement of products and materials with precise synchronization. Furthermore, it is essential in robotics for controlling articulated arms and in semiconductor manufacturing equipment for handling wafers and precise positioning during photolithography and assembly processes. Any application that requires repeatable, high-torque, and high-speed motion is an ideal candidate for the robust performance of the TOSHIBA HC422B servo amplifier.

Related Products

TOSHIBA HC202B: A lower-current (2.6A) servo amplifier from the same series, suitable for smaller motors and less demanding applications.

TOSHIBA HC652B: A higher-current (52A) servo amplifier for driving larger motors in heavy-duty industrial applications.

TOSHIBA TM Series Servo Motors: The complementary family of high-performance servo motors designed for optimal performance with the HC series amplifiers, such as the TM3 or TM5 models.

TOSHIBA V Series Inverters: For applications requiring speed control without precise positioning, the V series frequency inverters offer a complementary drive solution.

TOSHIBA SX Series PLCs: Programmable logic controllers that can be used to provide command signals and orchestrate multi-axis motion control systems utilizing the HC422B.
