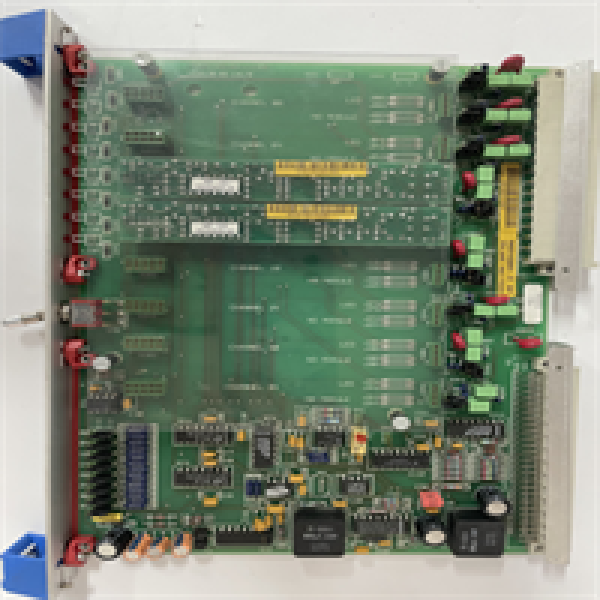

The ABB IBA 940143201 is a highly specialized interface module designed for integration within ABB’s extensive range of process automation and protection systems. This module serves as a critical communication and signal conditioning interface, typically functioning as an intelligent gateway between high-level control networks and field devices or subordinate control units. The core purpose of the ABB IBA 940143201 is to acquire, isolate, and process analog and digital signals from various transmitters, sensors, and switches, converting them into a standardized digital format for use by the system’s main controllers, such as those in ABB’s Advant or AC 800M series. It plays a vital role in distributed control system (DCS) architectures by enabling centralized monitoring and control of far-flung process areas. The module is engineered for exceptional reliability and precision, featuring advanced electrical isolation to protect sensitive system electronics from ground loops, voltage transients, and noise commonly found in industrial environments. The ABB IBA 940143201 is a key component in ensuring data integrity, system availability, and precise control in continuous process applications, embodying ABB’s commitment to robust and reliable automation technology.

IBA 940143201 ABB

Technical Specifications

Main Features and Advantages

Advanced Signal Conditioning and Flexibility: The ABB IBA 940143201 is not a simple pass-through module; it incorporates sophisticated signal conditioning. Each channel can typically be individually configured via software for a wide range of input types—from standard 4-20mA current loops and voltage signals to direct temperature measurements via RTDs or thermocouples. This flexibility drastically reduces the variety of spare modules needed and simplifies system design and inventory management.

Superior Noise Immunity and System Protection: A cornerstone of its design is comprehensive galvanic isolation. The ABB IBA 940143201 provides high-grade isolation between each field input channel and between the field side and the system’s internal bus. This design is critical for breaking ground loops, suppressing electromagnetic interference (EMI), and protecting the expensive central processing units from damaging voltage surges originating in the field, thereby ensuring unparalleled system stability and longevity.

High-Density and Space-Efficient Design: By accommodating multiple channels of configurable I/O on a single module, the ABB IBA 940143201 optimizes the use of valuable rack space within the control system cabinet. This high density translates into a lower overall system footprint and reduced cost per point, which is a significant advantage in large-scale automation projects with thousands of I/O points.

Seamless System Integration and Diagnostics: The module is designed for deep integration within the ABB ecosystem. It is configured and monitored through ABB’s proprietary engineering tools (e.g., Control Builder), allowing for easy scaling, calibration, and troubleshooting. Comprehensive diagnostic capabilities report module health, channel status, and out-of-range signals, enabling predictive maintenance and minimizing mean time to repair (MTTR).

Application Field

The ABB IBA 940143201 is deployed in capital-intensive, continuous process industries where the reliability and accuracy of the ABB Advant or MOD 300 DCS are paramount. It is a fundamental component in oil and gas refineries, where it interfaces with pressure, temperature, and flow transmitters on distillation columns and reactor feed systems. In pulp and paper mills, the ABB IBA 940143201 is used to acquire signals from analog sensors monitoring paper stock consistency, dryer section temperatures, and motor load conditions. Chemical processing plants utilize it for batch control and safety interlocking, while power generation facilities rely on it for monitoring critical parameters in boiler and turbine control loops. Essentially, the ABB IBA 940143201 is applied in any scenario requiring the robust, accurate, and isolated acquisition of field signals for a high-performance ABB distributed control system.

IBA 940143201 ABB

Related Products

ABB S800 I/O Modules: The newer generation of ABB’s distributed I/O for AC 800M controllers, representing the technological evolution.

ABB CI854 / CI855: Communication interface modules for the AC 800M controller, linking to various networks.

ABB AI825: An analog input module from the S800 series, providing similar functionality for newer systems.

ABB Baseplate/Fieldbus Module: The physical mounting unit and communication gateway that the IBA 940143201 connects to.

ABB DSQC Series I/O: A range of I/O modules for ABB’s robot controllers, showing the breadth of ABB’s interface offerings.

ABB Combi I/O Modules: Modules that combine input and output functions in a single unit for specific applications.
