Description

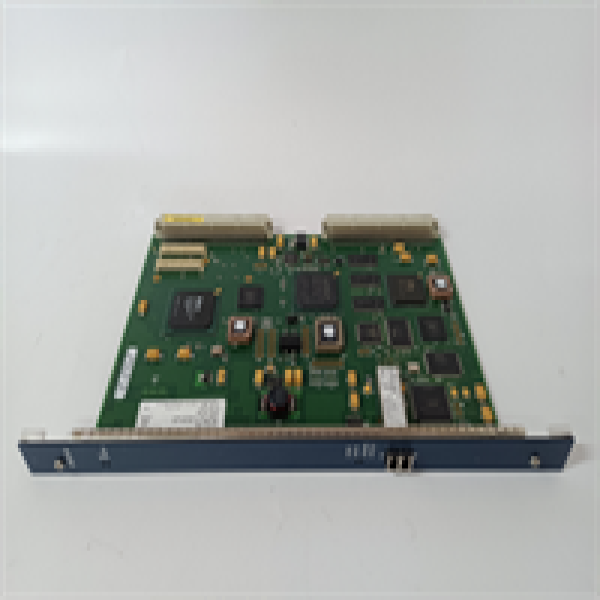

The GE Fanuc IC698CMX016 is a critical communications and control module within the renowned RX7i series, part of GE Fanuc’s powerful PACSystem family. This module serves as a high-performance Programmable Automation Controller (PAC) CPU, engineered to handle complex and demanding control applications that require extensive I/O capacity, high-speed processing, and robust networking capabilities. The GE Fanuc IC698CMX016 is built upon a high-speed PCI-based bus architecture, which allows for rapid data exchange between the CPU, I/O modules, and specialized communications coprocessors, ensuring deterministic control for time-critical processes.

At its core, the GE Fanuc IC698CMX016 features a powerful processor with substantial embedded user memory, capable of supporting large and intricate control programs for applications ranging from discrete manufacturing to complex continuous process control. Its key role is to execute control logic, manage a vast array of I/O points, and seamlessly communicate with other system components and higher-level supervisory systems like SCADA and MES. The reliability and scalability of the GE Fanuc IC698CMX016 make it a cornerstone for mission-critical automation systems where downtime is not an option, providing a robust platform that can be expanded and integrated to meet evolving operational needs.

Technical Specifications

Main Features and Advantages

The GE Fanuc IC698CMX016 offers a suite of advanced features that provide significant advantages in complex automation environments. Its high-speed PCI bus is a standout feature, enabling dramatically faster communication between the CPU and I/O modules compared to older VME-based systems. This results in faster system response times and improved control loop performance, which is essential for high-speed machinery and precise process control applications. The substantial 16 MB user memory allows engineers to develop sophisticated control strategies without being constrained by memory limitations, supporting extensive documentation and symbolic programming.

Another major advantage is its exceptional I/O handling capacity. The ability to manage tens of thousands of I/O points makes the GE Fanuc IC698CMX016 suitable for large, plant-wide control systems, consolidating control into a single, powerful platform. The module’s ruggedized design ensures reliable operation in typical industrial environments, with a wide operating temperature range. Furthermore, its compatibility with the extensive RX7i I/O module library provides unparalleled flexibility, allowing for a tailored system configuration that meets exact application requirements. The front-accessible serial port simplifies initial configuration, diagnostics, and connection to HMIs or other serial devices.

Application Field

The GE Fanuc IC698CMX016 is deployed in industries that demand the highest levels of reliability, speed, and control complexity. In manufacturing and automotive assembly lines, it provides the centralized intelligence for coordinating robots, conveyor systems, and quality control stations, ensuring high throughput and precision. For critical infrastructure, the GE Fanuc IC698CMX016 is often found in water treatment plants and wastewater management facilities, where it manages processes like filtration, chemical dosing, and pump control, guaranteeing public safety and regulatory compliance.

In the energy sector, including oil and gas pipelines and power generation plants, this controller is used for supervisory control and data acquisition (SCADA) applications, monitoring and controlling distributed assets over large geographical areas. Its robustness and deterministic performance also make it ideal for heavy industries such as metals and mining, where it can withstand harsh conditions while controlling complex machinery like rolling mills and material handling systems. The scalability of the GE Fanuc IC698CMX016 allows it to be the centerpiece of both large-scale greenfield projects and major modernization upgrades for existing brownfield sites.

Related Products

IC698CRE020: A redundant CPU module for the RX7i series, providing high-availability functionality for applications requiring zero-downtime fault tolerance.

IC698CHS117: A 17-slot RX7i rack (chassis) that provides the PCI backplane for housing the IC698CMX016 CPU and other I/O modules.

IC698PSA350: A 350-watt power supply module designed to provide reliable power to a fully loaded RX7i chassis and its modules, including the IC698CMX016.

IC698ETM001: An Ethernet Interface Module (ETM) that can be installed in the rack to provide high-speed Ethernet networking capability to the IC698CMX016 CPU.

IC697CPM925: A CPU module from the older 90-30 series, often considered when discussing migration or upgrade paths to the more advanced IC698CMX016.

IC698ACC720: A VME bus adapter module that allows the RX7i platform to interface with legacy VME-based I/O systems, protecting existing investments.
