Description

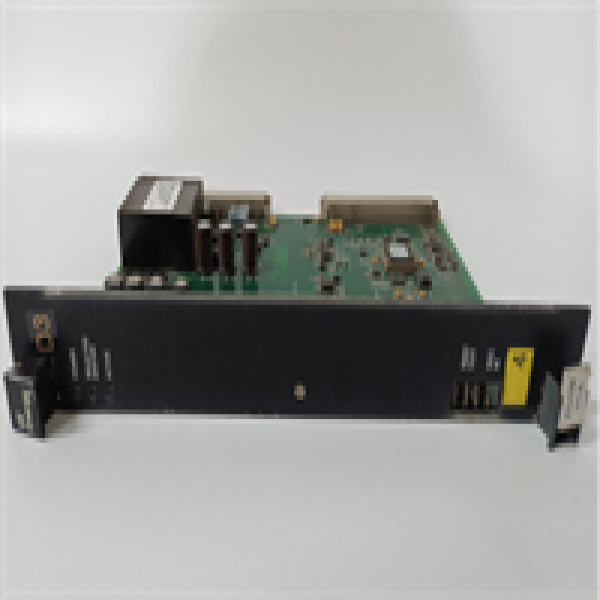

The IS200EGDMH1AFF is an advanced Excitation Gate Drive Module designed by General Electric as a crucial component within the Mark VI Speedtronic turbine control system. This sophisticated module represents the latest evolution in excitation control technology, specifically engineered to provide precise gate drive signals for thyristor-based excitation systems in large synchronous generators. The primary function of the IS200EGDMH1AFF is to translate control commands from the main turbine processor into accurately timed, high-power gate pulses that regulate generator field current, thereby maintaining stable terminal voltage and reactive power output under dynamic load conditions. As part of GE’s integrated turbine-generator control architecture, this module ensures optimal power quality and grid compliance while providing comprehensive protection for the excitation system.

Building upon the proven platform of previous versions, the IS200EGDMH1AFF incorporates enhanced processing capabilities and improved noise immunity for superior performance in modern power generation applications. The module operates within the VME bus structure of the Mark VI system, maintaining seamless communication with other control components while executing critical excitation control algorithms with exceptional speed and accuracy. The advanced design of the IS200EGDMH1AFF features upgraded gate drive circuitry that delivers higher peak current capability, ensuring reliable thyristor triggering even under demanding electrical conditions. This module revision reflects GE’s commitment to continuous improvement, incorporating field-proven enhancements that increase reliability, simplify maintenance, and extend service life in critical power generation applications.

IS200EGDMH1AFF GE

Technical Specifications

Main Features and Advantages

The IS200EGDMH1AFF introduces several significant advancements in excitation control technology, beginning with its enhanced gate drive capability that delivers higher peak current for improved thyristor triggering reliability. The module features intelligent pulse timing technology that automatically compensates for system phase shifts and harmonic distortions, maintaining precise firing angles under varying generator loading conditions. Each of the six gate drive channels now includes individual health monitoring that tracks pulse integrity, output current levels, and circuit performance in real-time. The IS200EGDMH1AFF also incorporates advanced heat dissipation design that maintains optimal operating temperatures during continuous high-load operation, significantly improving long-term reliability compared to previous versions.

Enhanced System Integration and Diagnostics: A major improvement in the IS200EGDMH1AFF is its comprehensive diagnostic suite that provides detailed performance analytics and predictive maintenance data directly to the control system. The module now features continuous waveform analysis that monitors synchronization signal quality and detects potential issues in the excitation power circuit before they affect system operation. Enhanced communication capabilities allow the IS200EGDMH1AFF to provide real-time performance data including gate drive efficiency, temperature trends, and historical operating statistics. The module’s upgraded isolation system provides superior noise immunity in electrically noisy generator environments, ensuring accurate pulse timing even during system transients. These advanced features combine to reduce maintenance requirements, improve system availability, and provide operators with unprecedented visibility into excitation system performance.

Application Field

The IS200EGDMH1AFF is specifically designed for modern power generation applications requiring precise excitation control, particularly in GE Frame 7HA.03 and 9HA.02 gas turbines where advanced grid support capabilities are essential. The module excels in applications demanding fast response excitation control for frequency regulation, voltage stability, and black start capabilities. In combined cycle power plants, the IS200EGDMH1AFF provides coordinated excitation control that maintains optimal power factor and voltage stability during rapid load changes between gas and steam turbine operations. The module’s enhanced capabilities make it ideal for grid code compliance applications where exact voltage control and reactive power management are critical for interconnection requirements.

The robust design of the IS200EGDMH1AFF makes it particularly suitable for renewable integration applications where generators must respond quickly to grid disturbances caused by intermittent renewable sources. In industrial power generation facilities, the module provides reliable excitation control for islanded operation and load-following applications where voltage stability is crucial for process continuity. The IS200EGDMH1AFF also finds application in synchronous condenser operations for voltage support on weak transmission systems, where its precise control capabilities maintain system stability during varying network conditions. The module’s advanced diagnostics and communication features make it especially valuable for remote monitoring applications and predictive maintenance programs in distributed generation facilities where onsite technical resources may be limited.
