Description

The IS200ERDDH1ABA is a sophisticated Ethernet Remote Drop Device module developed by General Electric as an integral component of the Mark VI Speedtronic turbine control system. This advanced communication module serves as a critical interface between the central turbine controller and remote I/O subsystems, enabling distributed control architecture through high-speed industrial Ethernet connectivity. The primary function of the IS200ERDDH1ABA is to extend the control system’s reach by providing a reliable communication link to remote input/output modules located throughout the turbine package, allowing for decentralized data acquisition and control execution while maintaining centralized processing intelligence. As part of GE’s comprehensive control strategy, this module facilitates the implementation of modular wiring schemes that reduce installation costs and improve system maintainability.

Operating within the robust framework of the Mark VI system, the IS200ERDDH1ABA demonstrates exceptional reliability in managing real-time data exchange between the main control rack and distributed field devices. The module supports industry-standard Ethernet protocols optimized for industrial applications, ensuring deterministic communication performance essential for critical turbine control functions. The advanced design of the IS200ERDDH1ABA incorporates sophisticated network management features including quality of service (QoS) prioritization, network diagnostics, and fault tolerance mechanisms that maintain communication integrity even under challenging network conditions. This capability is particularly valuable in large turbine installations where field devices may be distributed across significant distances, requiring robust communication infrastructure to ensure coordinated control and comprehensive system monitoring.

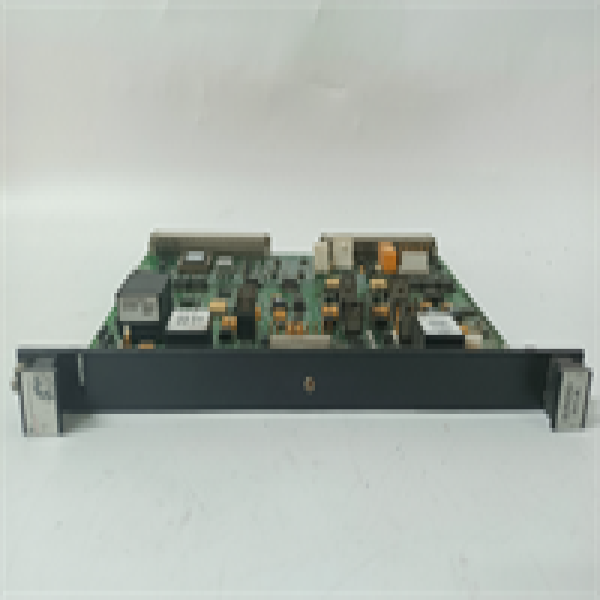

IS200ERDDH1ABA GE

Technical Specifications

Main Features and Advantages

The IS200ERDDH1ABA offers advanced networking capabilities with its dual-port architecture that supports both daisy-chain and star network configurations, providing flexibility in system layout and expansion. The module features auto-negotiation technology that automatically detects network speed and optimizes communication parameters, simplifying installation and reducing configuration errors. The IS200ERDDH1ABA incorporates sophisticated traffic management with quality of service (QoS) features that prioritize critical control data over non-time-sensitive information, ensuring deterministic performance for essential turbine protection and control functions. The module’s robust industrial design includes enhanced electromagnetic compatibility (EMC) protection that ensures reliable operation in electrically noisy environments typical of power generation facilities. Advanced diagnostics provide real-time monitoring of network health, including port status, traffic statistics, and error rates, enabling proactive maintenance and rapid fault identification.

Enhanced System Integration and Reliability: A significant advantage of the IS200ERDDH1ABA is its seamless integration with the Mark VI control architecture, providing native support for GE’s high-speed peer-to-peer communication and deterministic I/O scanning. The module features redundant network capability when used with appropriate infrastructure, ensuring communication continuity even during network segment failures. The IS200ERDDH1ABA supports hot-swappable operation in properly configured systems, allowing for module replacement without shutdown of the entire control system. The module’s non-volatile memory retains configuration parameters during power cycles, ensuring rapid recovery after power restoration. These features combine to provide a highly reliable communication infrastructure that supports distributed control strategies while maintaining the centralized intelligence and coordination essential for optimal turbine operation and protection.

Application Field

The IS200ERDDH1ABA is extensively deployed in large-scale power generation applications where distributed I/O architecture provides advantages in wiring simplification, maintenance accessibility, and system scalability. In combined cycle power plants, the module enables strategic placement of remote I/O racks near turbine auxiliaries, fuel skids, and heat recovery steam generator systems, significantly reducing field wiring costs while improving signal integrity. The IS200ERDDH1ABA is particularly valuable in multi-turbine installations where centralized control of multiple units from a single control room requires extensive remote communication capabilities. The module’s robust industrial design makes it suitable for installation in harsh environments such as turbine deck locations, where temperature, vibration, and electrical noise conditions challenge conventional networking equipment.

The distributed architecture enabled by the IS200ERDDH1ABA finds important application in plant modernization projects, where it facilitates phased migration from legacy control systems while maintaining operational continuity. In offshore platform power generation and remote mining applications, the module supports compact control system designs that minimize space requirements while maintaining comprehensive monitoring and control capabilities. The IS200ERDDH1ABA also plays a critical role in large industrial facilities with captive power plants, where integrated control of power generation and process systems requires flexible communication infrastructure. The module’s support for standard Ethernet protocols enables integration with plant-wide monitoring systems, supporting data acquisition for performance monitoring, predictive maintenance, and operational optimization across the entire facility.

IS200ERDDH1ABA GE
