GE IS200JPDDG1AAA is a rugged, high-reliability Power Distribution Module (PDM) engineered exclusively for GE’s Mark VIe Distributed Control System (DCS)—the central nervous system for gas and steam turbine control in power generation. As part of GE’s IS200 series, this module simplifies power delivery to field devices (e.g., fuel valves, lubrication pumps, sensor circuits) and downstream Mark VIe I/O modules, consolidating multiple power feeds into a single, manageable unit. Its integrated overcurrent protection, surge immunity, and channel-level monitoring eliminate the need for separate power supplies and reduce wiring complexity in control cabinets. Positioned as a backbone component for plant dependability, the IS200JPDDG1AAA cuts commissioning time with plug-and-play compatibility and real-time status visibility via GE’s ControlST software. Its value lies in minimizing downtime: by protecting downstream devices from overloads or surges and enabling remote power diagnostics, it prevents costly equipment damage and streamlines maintenance for operators. For OEMs building turbine control systems, the IS200JPDDG1AAA offers scalability—supporting up to 16 field devices per module—to adapt to both new combined cycle gas turbine (CCGT) plants and retrofits of legacy steam turbines.

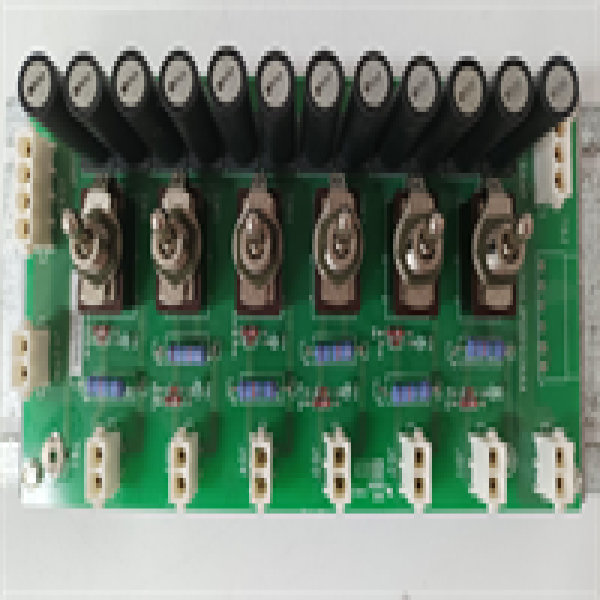

IS200JPDDG1AAA GE
Technical Specifications
| Parameter Name | Parameter Value |
| Manufacturer | General Electric (GE) |
| Product Type | Power Distribution Module (PDM) for Mark VIe DCS |
| Product Model | GE IS200JPDDG1AAA |
| Number of Output Channels | 16 isolated 24 V DC outputs |
| Current Per Channel | 2 A (adjustable via software); 16 A total system current |
| Overcurrent Protection | Individual electronic fuses per channel (resettable via ControlST) |
| Surge Immunity | IEC 61000-4-5 (1 kV line-to-line, 2 kV line-to-ground) |
| Communication Protocol | GE High-Speed Link (HSL) for status monitoring |
| Operating Temperature | -40°C to +85°C |
| Dimensions (HxWxD) | 170 mm x 100 mm x 25 mm |
| Current Consumption | 150 mA (max at 24 V DC) |
| Certifications | UL 508, CE, ATEX Zone 2, IEC 61508 (SIL 2 compliant for power integrity) |
Main Features and Advantages
The GE IS200JPDDG1AAA stands out for its uncompromising power reliability, seamless Mark VIe integration, and proactive diagnostics—critical for power plant safety and uptime. First, its 16-channel design with individual electronic fuses protects downstream devices (e.g., a fuel gas solenoid valve or bearing temperature sensor) from overloads or short circuits—eliminating the need for bulky, maintenance-prone electromechanical breakers. This reduces cabinet clutter and simplifies troubleshooting: a fault on Channel 7 triggers an immediate alert in ControlST, directing technicians to the exact device needing repair. Second, real-time status monitoring via HSL lets operators view channel health (on/off, fault, current draw) from the Mark VIe HMI—no need to physically inspect cabinets during operation. Third, its rugged construction withstands power plant extremes: conformal coating resists dust and moisture, while a -40°C to +85°C range works in outdoor transformer yards or arctic wind farms.
For example, a Middle Eastern CCGT plant using the IS200JPDDG1AAA to power 12 lubrication oil pump circuits avoided a turbine trip when a pump short-circuited—the module’s fuse isolated the fault in milliseconds, keeping other pumps running. Unlike generic PDMs, it’s designed for Mark VIe synergy: ControlST automatically maps channels to I/O modules, reducing configuration time by 40%. OEMs praise its modularity: stacking two IS200JPDDG1AAA modules supports 32 field devices from a single Mark VIe controller, adapting to growing plant needs without replacing hardware.
Application Field
GE IS200JPDDG1AAA is indispensable in power generation and heavy industry where reliable power distribution to critical field devices drives uptime and safety. In CCGT plants, it powers fuel gas control valves, HRSG exhaust fan motors, and boiler water level sensors—consolidating power feeds from 8 separate supplies to 1 module. For steam turbines, it energizes lubrication oil pumps, gland sealing systems, and fire detection circuits—protecting rotating equipment from damage. A common use case is retrofitting aging plants: the module replaces outdated power distribution panels, adding remote monitoring and surge protection to legacy systems—enabling predictive maintenance and reducing cabinet space by 50%.
In biomass-fired facilities, it handles corrosive environment signals thanks to its sealed design and 24 V DC isolation. For grid stability, it provides redundant power to Mark VIe communication modules, ensuring compliance with NERC grid codes. Unlike generic PDMs, it’s built for 24/7 operation: its high-efficiency power supplies operate at 95% efficiency, reducing heat output and extending cabinet cooling system life. For example, a Texas power plant uses 4 IS200JPDDG1AAA modules to power 64 field devices—from wind turbine pitch actuators to gas compressor controls—cutting troubleshooting time by 35% and improving safety compliance.
IS200JPDDG1AAA GE
Related Products
GE IS200ISBBG2AAB: 16-channel binary input module for Mark VIe—pairs with the IS200JPDDG1AAA to monitor status of field devices powered by the PDM.
GE IS200VLA2ADE: Voltage input analog module—complements the IS200JPDDG1AAA by measuring 0-10V signals from pressure transducers powered by the module.
GE Mark VIe Control Station: Main DCS controller—integrates with the IS200JPDDG1AAA via HSL for centralized power and process control.
GE ControlST Software: Configuration suite—lets users set current limits, monitor channel status, and log power faults for the IS200JPDDG1AAA.
GE THUM Adapter Kit: Terminal block assembly—simplifies wiring to the IS200JPDDG1AAA, reducing installation time by 25%.
