Description

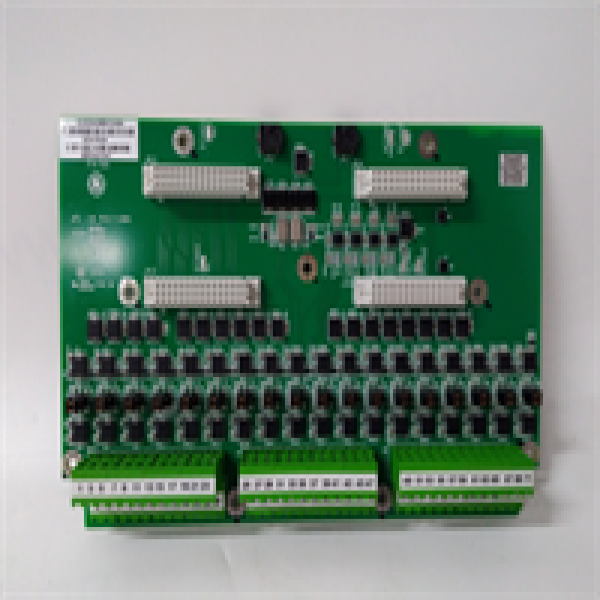

GE IS200SAMBH1ABA is an 8-channel analog output module engineered exclusively for GE’s Mark VIe Distributed Control System (DCS)—the core platform for controlling gas and steam turbines in power generation. As part of GE’s IS200 series, this module translates Mark VIe controller commands into precise analog signals (4-20mA current, 0-10V voltage) to drive critical field devices like fuel gas valves, steam admission valves, and lubrication pumps. Its high-speed link (HSL) communication protocol ensures millisecond-latency signal delivery, a necessity for tight process control (e.g., maintaining turbine exhaust temperature within ±1°C). Positioned as a workhorse for plant efficiency, the IS200SAMBH1ABA reduces commissioning time with plug-and-play compatibility and built-in channel diagnostics—eliminating manual calibration and guesswork. Its value lies in enhancing control precision: by delivering ±0.1% full-scale accuracy, it optimizes fuel consumption, reduces emissions, and extends actuator life. For OEMs and end-users, it balances flexibility with reliability—supporting both new combined cycle gas turbine (CCGT) plants and retrofits of legacy steam turbines.

IS200SAMBH1ABA GE

Technical Specifications

Main Features and Advantages

The GE IS200SAMBH1ABA excels in three critical areas: precision control, seamless Mark VIe integration, and proactive maintenance—key for power plants where process variability directly impacts profitability. First, its 8-channel design with ±0.1% full-scale accuracy delivers the tight control needed for turbine auxiliary systems: for example, regulating fuel gas valve position to maintain optimal air-fuel ratios, reducing emissions by 5% in CCGT plants. Second, HSL communication ensures low-latency signal delivery—critical for PID loops controlling steam temperature or pressure, where delays can cause costly trips. Third, built-in diagnostics simplify troubleshooting: ControlST software displays real-time data like channel current/voltage output, fault status, and load impedance—letting operators identify issues (e.g., a stuck valve actuator) before they escalate.

Unlike generic analog modules, the IS200SAMBH1ABA is purpose-built for Mark VIe: ControlST automatically configures channels to match downstream devices (e.g., setting a channel to 4-20mA for a fuel valve), cutting setup time by 50%. OEMs praise its durability: conformal coating resists dust and moisture, while a -40°C to +85°C range works in outdoor transformer yards or arctic wind farms. For end-users, this translates to lower costs: a European power plant using 10 IS200SAMBH1ABA modules cut annual fuel costs by $200k—thanks to improved combustion efficiency from precise valve control.

Application Field

GE IS200SAMBH1ABA is indispensable in power generation and heavy industry where precise analog control drives efficiency and safety. In combined cycle gas turbine (CCGT) plants, it controls fuel gas valves, HRSG bypass dampers, and exhaust fan speed—optimizing heat recovery and reducing fuel waste. For steam turbines, it regulates steam admission valves, gland sealing pressure, and bearing lubrication flow—protecting rotating equipment from damage. A common use case is retrofitting aging plants: the module replaces outdated analog output cards, adding HSL communication to link with modern Mark VIe controllers—enabling remote setpoint adjustments and predictive maintenance.

In biomass-fired facilities, it handles corrosive environment signals thanks to its sealed design. For grid stability, it provides precise voltage control to generator exciters, ensuring compliance with NERC grid codes. Unlike generic modules, it’s built for 24/7 operation: its high-efficiency output stages operate at 90% efficiency, reducing heat output and extending cabinet cooling system life. For example, a Texas CCGT plant uses 8 IS200SAMBH1ABA modules to control 64 fuel valves—cutting NOx emissions by 8% and improving turbine efficiency by 2%.

IS200SAMBH1ABA GE

Related Products

GE IS200ISBBG2AAB: 16-channel binary input module for Mark VIe—monitors status of devices controlled by the IS200SAMBH1ABA (e.g., valve position switches).

GE IS200VLA2ADE: Voltage input analog module—measures feedback from actuators driven by the IS200SAMBH1ABA (e.g., pressure transducers on fuel lines).

GE Mark VIe Control Station: Main DCS controller—integrates with the IS200SAMBH1ABA via HSL for centralized process control.

GE ControlST Software: Configuration suite—lets users set output ranges, calibrate channels, and log faults for the IS200SAMBH1ABA.

GE THUM Adapter Kit: Terminal block assembly—simplifies wiring to the IS200SAMBH1ABA, reducing installation time by 25%.
