Description

The GE IS200SPIDG1ABA is a highly specialized Servo Drive Interface Board that forms an essential link within the Mark VI series turbine control system. This module is specifically engineered to manage the critical interface between the turbine’s primary control processors and the servo valves that act as the final control element for fuel and steam management. The core function of the IS200SPIDG1ABA is to receive precise command signals from the central processor and translate them into high-fidelity, amplified output signals capable of driving the electromagnetic coils of hydraulic servo actuators. This precise control over servo valve position directly dictates the flow of fuel or steam into the turbine, making the IS200SPIDG1ABA a cornerstone for achieving exact speed, load, and pressure regulation.

Designed for integration into the VME-based rack of the Mark VI system, the IS200SPIDG1ABA operates in real-time to ensure the turbine responds accurately and instantaneously to control demands. Its design prioritizes reliability and signal integrity, as any failure in this component can directly impact turbine stability and safety. The board incorporates sophisticated circuitry for signal conditioning, amplification, and feedback monitoring. The value of the GE IS200SPIDG1ABA is immense; it directly influences the turbine’s operational efficiency, emission control, and overall dynamic performance, ensuring smooth startups, stable synchronization, and precise load following capabilities that are critical in modern power generation.

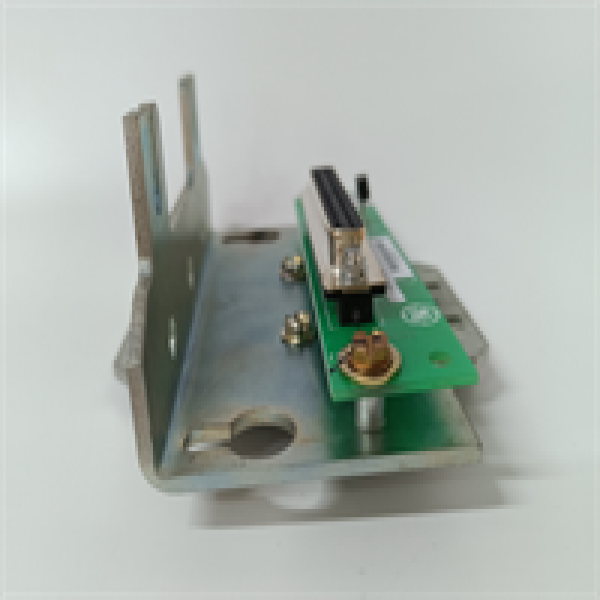

IS200SPIDG1ABA GE

Technical Specifications

Main Features and Advantages

The GE IS200SPIDG1ABA is distinguished by its high-power output capability and robust control loop design. A primary feature is its ability to generate the precise, high-current signals required to rapidly and accurately position industrial servo valves, which demand significant power for fast response times. The board is engineered to maintain signal integrity even in the electrically noisy environment of a power plant, ensuring that the servo valve receives a clean command signal without interference. This results in smooth and stable actuator movement, which is crucial for preventing oscillations and instability in the turbine control loop.

Integrated diagnostics and feedback handling are critical advantages of the IS200SPIDG1ABA. The board typically interfaces with an LVDT mounted on the servo actuator, which provides real-time feedback on the actual valve position. The module processes this feedback signal and communicates it back to the central processor, enabling closed-loop control and allowing the system to verify that the valve position matches the commanded signal. This closed-loop architecture, managed by the IS200SPIDG1ABA, is fundamental to the Mark VI system’s ability to detect faults such as a stuck valve or a failing LVDT, triggering alarms or protective actions to maintain safe operation. The module’s design ensures high reliability, which is non-negotiable for its role in controlling critical turbine functions.

Application Field

The application of the GE IS200SPIDG1ABA is exclusively focused on the control of large industrial gas and steam turbines within the power generation and large mechanical drive sectors. In a gas turbine, the IS200SPIDG1ABA is directly responsible for controlling the fuel servo valves that regulate the flow of gas or liquid fuel into the combustor. This precise control is vital for managing turbine acceleration during startup, maintaining exact speed during synchronization with the electrical grid, and adjusting the fuel flow to meet load demands while minimizing emissions. In steam turbine applications, the module controls servo valves that actuate the governor valves governing steam flow, directly impacting turbine speed and power output.

The IS200SPIDG1ABA is also critical in combined-cycle power plants where operational flexibility and fast response times are required to balance grid demands. Furthermore, it finds application in turbines used for mechanical drives in oil and gas facilities, such as driving compressors for natural gas pipelines. In every instance, the IS200SPIDG1ABA performs the vital function of translating digital control logic into precise physical action. Its performance directly affects the turbine’s efficiency, reliability, and ability to comply with strict operational and environmental regulations, making it a key component in ensuring the profitability and safety of critical energy infrastructure.

IS200SPIDG1ABA GE

Related Products

IS200SPIDG1A: The base model of this servo drive interface board, potentially with minor revisions differences from the IS200SPIDG1ABA.

IS215UCVEM06A: The VME Processor Board (VPROC) for the Mark VI system, which generates the command signals sent to the IS200SPIDG1ABA.

IS200TBCIH2C: A Terminal Board that often provides the interface point for the field wiring connecting the IS200SPIDG1ABA to the servo actuators and LVDTs.

IS200EPSMG1A: A Power Supply Module for the Mark VI rack, providing the necessary power to the IS200SPIDG1ABA.

IS200WETBH1A: An I/O Pack Processor board that may handle communication between various I/O modules and the main processor in larger system configurations.

Mark VI Control System: The overarching turbine control platform that the IS200SPIDG1ABA is an integral component of.
