Description

The GE IS200TREAH2AED is a critical Triple Modular Redundant (TMR) Ethernet Adapter Module designed for the Mark Vie turbine control system. This module serves as a high-availability communication gateway, providing the essential network interface between the triple-redundant central processors of the control system and a plant-wide Ethernet network. The primary function of the IS200TREAH2AED is to facilitate the seamless exchange of data by implementing three independent Ethernet channels, each connected to one of the three redundant VPROC processors within a TMR configuration. This architecture ensures that control system data remains available for monitoring, historization, and higher-level system integration even if one or, in some cases, two of the processor channels experience a fault.

Operating within the robust Mark Vie framework, the IS200TREAH2AED is engineered for maximum network reliability and data integrity. It acts as a critical bridge, allowing operators at workstations to view real-time turbine data, enabling historians to collect performance information, and permitting plant DCS systems to interface with the turbine controller. The module handles the complexity of managing three separate data streams, presenting a single, coherent interface to the external network. The reliability of the GE IS200TREAH2AED is fundamental to maintaining situational awareness and operational control, as any failure in this communication link can isolate the turbine control system from the rest of the plant, effectively blinding operators to its status.

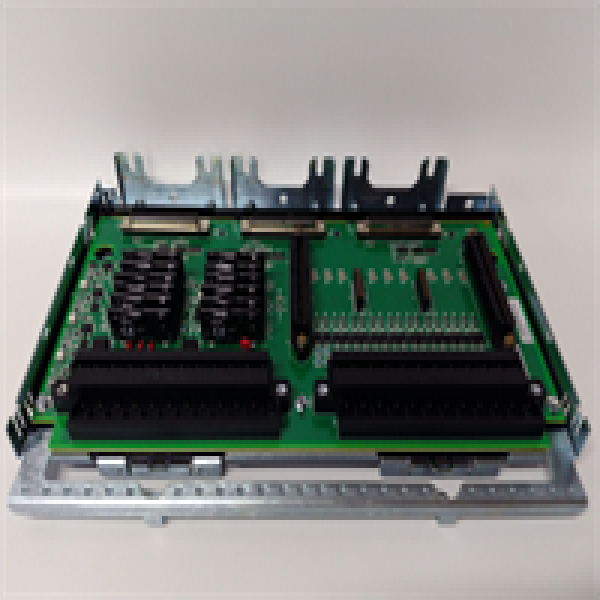

IS200TREAH2AED GE

Technical Specifications

Main Features and Advantages

The most significant feature of the GE IS200TREAH2AED is its inherent Triple Modular Redundant design, which provides exceptional communication availability. By maintaining three separate and isolated network paths, the module ensures that a hardware failure in one Ethernet channel or its associated processor does not disrupt the overall data flow to the plant network. This design eliminates a single point of failure in the critical communication link. The module seamlessly manages the redundancy, automatically switching traffic to the healthy channels without requiring intervention from the external network devices, thus providing a continuous and reliable data stream for operators and plant systems.

High-speed performance and robust integration are key advantages of this adapter. The IS200TREAH2AED supports Gigabit Ethernet, ensuring that there is sufficient bandwidth for high-speed data exchange, including the transmission of real-time turbine parameters, sequence-of-events (SOE) records, and asset management data. Its integration with the Mark Vie platform is seamless, being recognized and configured directly through the ToolboxST software suite. This simplifies network setup and diagnostics. The module’s robust design ensures stable operation in the electrically noisy control room environment, providing a reliable communications backbone that is crucial for the centralized monitoring and control of critical turbine assets.

Application Field

The application of the GE IS200TREAH2AED is central to the integrated control architecture of modern power generation facilities. It is deployed in gas and steam turbine units controlled by the Mark Vie system where high availability and data integrity are paramount. The primary application is to provide the data highway between the redundant turbine control processors and the plant’s Distributed Control System (DCS), allowing for unified control of the entire power generation unit from a central operator interface. It is also essential for connecting to data historians that log turbine performance for efficiency analysis and predictive maintenance.

Furthermore, the IS200TREAH2AED enables remote engineering access (with proper security) for GE support personnel to perform diagnostics and support, reducing mean time to repair. In combined-cycle power plants, this module is vital for the tight integration between the gas turbine, steam turbine, and balance-of-plant controls. The reliable data provided through the IS200TREAH2AED ensures that operators have a complete and accurate view of the turbine’s status, enabling informed decision-making and ensuring that the unit can be safely and efficiently monitored and controlled from anywhere within the plant network.

IS200TREAH2AED GE

Related Products

IS200TREAH2A: A base model of the TMR Ethernet adapter, potentially an earlier version.

IS420ESWBG4A: A Mark Vie I/O Pack that houses the processor and communication modules like the IS200TREAH2AED.

IS200VPROC: The triple redundant processor modules that the IS200TREAH2AED interfaces with.

IS200ETHCx: A potential standard (non-TMR) Ethernet communication module for non-critical network links.

IS200SRTPx: A Serial RTD Processor module, highlighting a different type of I/O module within the same system.

ToolboxST: The engineering software used to configure the network parameters of the IS200TREAH2AED.
