Description

The GE IS200TRLYH1BGF is a sophisticated Relay Output Module designed for the Mark VI turbine control system. This module serves as a critical interface for controlling high-power auxiliary devices by providing robust, isolated relay contacts that can switch significant electrical loads. The primary function of the IS200TRLYH1BGF is to receive low-voltage logic-level commands from the control system’s processors and use internal electromechanical or solid-state relays to open or close external circuits powering motors, solenoid valves, alarms, and other plant equipment. It effectively translates the digital decisions of the control logic into physical actions within the turbine auxiliary systems.

Engineered for reliability in an industrial environment, the IS200TRLYH1BGF provides essential electrical isolation between the sensitive low-voltage electronics of the Mark VI rack and the often noisy and high-power field circuits. This isolation protects the control system from voltage transients, inductive kicks from motors and solenoids, and other electrical disturbances that could damage sensitive components. The module is designed with multiple independent relay channels, allowing it to control several devices simultaneously. The dependable operation of the GE IS200TRLYH1BGF is crucial for the sequenced operation of turbine auxiliaries, such as during startup and shutdown procedures, and for activating critical alarms and indicators that inform operators of the unit’s status.

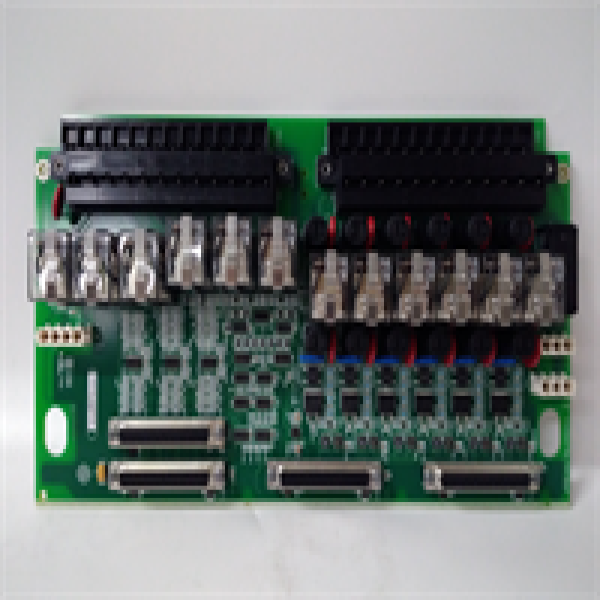

IS200TRLYH1BGF GE

Technical Specifications

Main Features and Advantages

The GE IS200TRLYH1BGF is characterized by its robust switching capability and high degree of isolation. A key feature is the use of Form-C (SPDT) contacts, which provide a normally open and a normally closed contact per channel. This flexibility allows the module to be configured for either energize-to-activate or de-energize-to-activate logic, making it adaptable to various safety and control requirements. The high electrical isolation rating is a critical advantage, ensuring that a short circuit or voltage spike on a field device connected to one channel will not propagate back to the control system or affect adjacent channels. This design significantly enhances the overall mean time between failures (MTBF) of the control system.

Ease of use and maintenance are significant benefits of this module. The IS200TRLYH1BGF typically includes LED status indicators for each output channel, providing immediate visual confirmation of the relay’s commanded state at the module itself, which is invaluable for troubleshooting. The relays are often rated for a high number of operational cycles, ensuring long-term reliability. The module’s design allows for straightforward configuration within the Mark VI’s ToolboxST software, where each output point can be easily mapped to a specific control logic variable. The combination of proven relay technology, strong isolation, and diagnostic visibility makes the IS200TRLYH1BGF a dependable and serviceable solution for discrete control tasks in a demanding power plant environment.

Application Field

The application of the GE IS200TRLYH1BGF is widespread throughout the auxiliary systems of gas and steam turbine units controlled by the Mark VI system. It is commonly used to control medium-power devices that are essential for turbine operation but do not require the ultra-high reliability of the safety-rated trip system. Typical applications include starting and stopping lube oil pumps, turning on cooling fans, operating auxiliary hydraulic pumps, and controlling solenoid valves for various fluid systems. The module is also extensively used for activating audible alarms and panel-mounted indicator lights in the control room, providing vital status information to the operators.

Furthermore, the IS200TRLYH1BGF plays a key role in the automated startup and shutdown sequences of the turbine. It executes commands to open and close valves or start motors in a precise order, ensuring the unit is brought online or taken offline safely and efficiently. Its robust relay contacts are ideal for interfacing with existing plant equipment that may require a dry contact signal for control. The reliability of the IS200TRLYH1BGF directly impacts the availability of the turbine’s auxiliary support systems, which are necessary for the main unit to operate. Its failure could lead to the inability to start a critical pump or fan, potentially causing an operational delay or forcing a unit shutdown.

IS200TRLYH1BGF GE

Related Products

IS200TRLYH1B: The base model of this relay output module family.

IS200TBCIH2C: A Termination Board Assembly that provides the screw terminals for field wiring connected to the IS200TRLYH1BGF relay contacts.

IS200DRLYH1B: A potential Digital Relay Output module with similar functionality.

IS200EPSMG1A: The Power Supply Module that provides power to the IS200TRLYH1BGF and other modules in the rack.

IS200VAOHH1B: An Analog Output Handler, representing a different type of output (analog vs. discrete) within the same system.

IS200TPROH1BCB: A Trip Protection Output Module, highlighting the difference between a standard control relay and a safety-critical output.
