Description

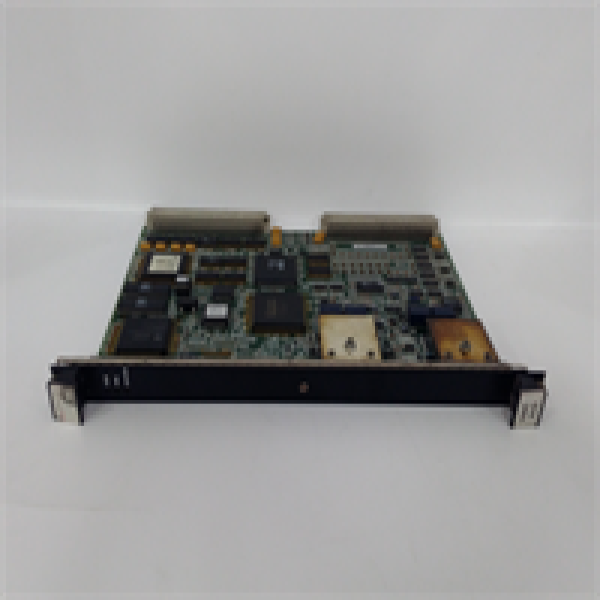

The GE IS200VAICH1DAB is a high-performance VME Analog Input Control Handler module designed for the Mark VI turbine control system. This module serves as a versatile and high-density interface for acquiring a wide range of analog signals from field transmitters and sensors across the turbine and its auxiliary systems. The primary function of the IS200VAICH1DAB is to receive standard analog current or voltage signals, such as the ubiquitous 4-20 mA loop, and accurately convert these analog measurements into high-resolution digital values for use by the system’s central processors. It acts as the sensory nerve endings for the control system, providing critical data on process variables like pressure, flow, level, and position.

Engineered for integration into the VME rack of the Mark VI system, the IS200VAICH1DAB provides exceptional channel density, allowing a single module to monitor numerous process points, thereby optimizing hardware footprint and system cost. The module incorporates individual signal conditioning for each channel, which includes scaling, filtering, and electrical isolation. This isolation is crucial for protecting the sensitive control system electronics from ground loops, power surges, and other electrical noise commonly found in industrial environments. The accuracy and reliability of the data provided by the GE IS200VAICH1DAB are fundamental for both closed-loop control algorithms and operator decision-making, ensuring the turbine operates efficiently and within its safe operating limits.

IS200VAICH1DAB GE

Technical Specifications

Main Features and Advantages

The GE IS200VAICH1DAB is distinguished by its flexibility and comprehensive diagnostic capabilities. A key feature is its software-configurable input type per channel. This allows a single IS200VAICH1DAB module to interface directly with a diverse array of sensors—from 4-20 mA pressure transmitters to 0-10V DC position sensors—without requiring external signal conditioners. This flexibility simplifies system design, reduces spare part requirements, and allows for easy reconfiguration if process needs change. The module’s high-resolution 16-bit ADC ensures that even small changes in the process variable are detected, providing the control system with the precise data needed for tight regulatory control.

Integrated diagnostics and robust construction are significant advantages. The IS200VAICH1DAB continuously monitors each input channel for fault conditions such as signal wire break (open circuit), short circuit, and signal values that exceed the configured range. These diagnostics are reported directly to the control processor, enabling immediate operator alerts and facilitating predictive maintenance by identifying failing sensors or wiring issues before they cause a process interruption. The module’s electrical isolation and high-quality components ensure long-term calibration stability and reliable operation in the electrically noisy environment of a power plant, contributing to high system availability and reduced lifecycle costs.

Application Field

The application of the GE IS200VAICH1DAB is extensive throughout the turbine island and its auxiliary systems in power generation facilities. It is used to monitor critical process variables such as lube oil pressure, fuel gas supply pressure, compressor discharge pressure, and condenser vacuum. In addition to pressure, it acquires signals for fluid flow rates, tank levels, and valve positions, providing a comprehensive picture of the unit’s operational status. This data is essential for the control system’s sequencing logic during startup and shutdown, as well as for continuous regulatory control during normal operation.

The module is also vital for performance monitoring and equipment protection. By tracking efficiencies and operating points, the data from the IS200VAICH1DAB helps optimize turbine performance. Furthermore, many of its inputs are used for alarm and trip functions; for example, a low lube oil pressure signal acquired by the module can initiate a turbine trip to prevent bearing damage. The reliability of the IS200VAICH1DAB is therefore critical for both the operational efficiency and the mechanical safety of the turbine, making it a ubiquitous component in gas, steam, and combined-cycle power plants controlled by the Mark VI system.

IS200VAICH1DAB GE

Related Products

IS200VAICH1D: The base model of this analog input module family.

IS200TBCIH2C: A Termination Board Assembly that provides the screw terminal interface for field wiring connected to the IS200VAICH1DAB.

IS200STAIH1A: A similar Analog Input module, potentially with different specifications or for a different series.

IS200EPSMG1A: The Power Supply Module that provides power to the IS200VAICH1DAB within the VME rack.

IS200VAOHH1B: An Analog Output Handler module, performing the inverse function of the IS200VAICH1DAB.
