Description

The GE IS200VTCCH1CBB is a critical Valve Test and Calibration Communication Handler module designed for the Mark VI turbine control system. This specialized module provides the essential interface and control logic for performing automated online testing of the turbine’s critical safety valves, primarily the Main Stop Valves (MSVs) and Control Valves (CVs). The primary function of the IS200VTCCH1CBB is to manage the sophisticated sequence that allows these valves to be partially stroked or tested during normal turbine operation without causing a load disturbance or trip. This capability is vital for demonstrating the operational readiness of these safety-critical components as required by safety regulations and insurance standards.

Engineered for high reliability, the IS200VTCCH1CBB works in conjunction with the turbine’s main control logic to temporarily override the normal valve control signal and execute a precise test sequence. It monitors the valve’s response via its associated Linear Variable Differential Transformer (LVDT) feedback and compares the movement against expected parameters. The module ensures the test is conducted within safe limits, aborting the sequence if any abnormal conditions are detected. The functionality provided by the GE IS200VTCCH1CBB is crucial for avoiding costly shutdowns that would otherwise be necessary to perform manual valve testing, thereby significantly enhancing plant availability while ensuring compliance with functional safety requirements.

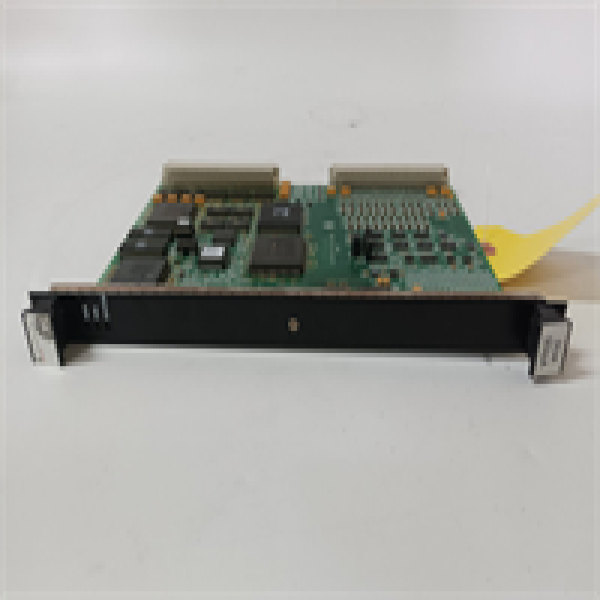

IS200VTCCH1CBB GE

Technical Specifications

Main Features and Advantages

The GE IS200VTCCH1CBB is distinguished by its automated, integrated test sequences and built-in safety protocols. A key feature is its ability to execute a controlled partial stroke of a safety valve. Instead of a full closure, which would cause a turbine trip, the module commands a small, precise movement that is sufficient to verify the valve’s mechanical freedom and control system response without impacting turbine power output. This process is fully automated and can be scheduled at regular intervals, ensuring consistent compliance with testing mandates. The module records key test data, such as stroke time and response characteristics, for trend analysis and documentation.

Enhanced safety and operational flexibility are the primary advantages of this module. The IS200VTCCH1CBB incorporates interlocks that prevent a valve test from being initiated during unstable turbine conditions, such as during startup, shutdown, or major load changes. This ensures that testing only occurs when the unit is stable, minimizing risk. The ability to test valves online provides immense operational flexibility, eliminating the need for planned outages solely for valve testing and extending the time between major manual inspections. This directly increases plant availability and revenue. The module’s specialized design offloads this complex function from the main controller, ensuring that the testing logic is executed with high reliability and without interfering with primary control tasks.

Application Field

The application of the GE IS200VTCCH1CBB is primarily in the control systems of large steam turbines used in fossil-fuel and nuclear power plants. Its core function is the online testing of the main steam valves that are critical for the safe shutdown of the turbine. These valves must be proven operable at regular intervals to meet nuclear regulatory requirements (e.g., 10 CFR 50), insurance guidelines, and general industrial safety standards. By using the IS200VTCCH1CBB, plant operators can fulfill these mandatory surveillance requirements without reducing power or taking the unit offline.

The module is also applied in combined-cycle plants where the steam turbine must be tested with the same rigor. The data gathered from each test provides a valuable history of valve performance, allowing maintenance personnel to identify degrading trends, such as increasing stroke times or sluggish response, which can indicate developing issues like stem friction or servo valve problems. This enables predictive maintenance, allowing parts to be replaced during a planned outage rather than experiencing a failure during operation. The IS200VTCCH1CBB is, therefore, a key component for maintaining both the safety certification and the operational reliability of a modern steam turbine plant.

IS200VTCCH1CBB GE

Related Products

IS200VTCCH1C: The base model of this valve test module family.

IS200TSVCH1AJE: A Servo Valve Control Module that the IS200VTCCH1CBB may interface with to control the valve during a test.

IS200VTCCG1A: A related valve test card, potentially for a different valve type or system.

IS200TBCIH2C: A Termination Board that provides the interface for LVDT feedback signals used by the IS200VTCCH1CBB.

Mark VI Controller (VPROC): The main processor that authorizes and monitors the test sequences run by the IS200VTCCH1CBB.
