Description

The IS210AEBIH1BED is a sophisticated analog input/output module developed by GE Energy (now GE Vernova) for the Mark VI series turbine control system. This advanced module serves as a critical interface component that bridges the gap between the turbine controller and various analog field devices, enabling precise monitoring and control of continuous process variables. The IS210AEBIH1BED functions as an Analog Electronic Board Interface, designed to handle both input signals from measurement devices and output signals to control elements within the turbine system. This dual functionality makes it an essential component for maintaining precise control over turbine operations, ensuring optimal performance while adhering to strict safety parameters.

As part of GE’s comprehensive Speedtronic control platform, the IS210AEBIH1BED exemplifies the integration of high-density signal processing with robust industrial design. The module is engineered to operate within the challenging environment of power generation facilities, where temperature fluctuations, electrical noise, and vibration are constant challenges. The IS210AEBIH1BED provides the necessary signal conditioning, isolation, and conversion capabilities to ensure that analog signals remain accurate and reliable throughout their journey from field sensors to the central controller and back to final control elements. In the complex hierarchy of the Mark VI system, the IS210AEBIH1BED plays a pivotal role in executing control algorithms by providing the necessary analog interface capabilities for parameters such as temperature, pressure, flow, and position that are critical for safe and efficient turbine operation.

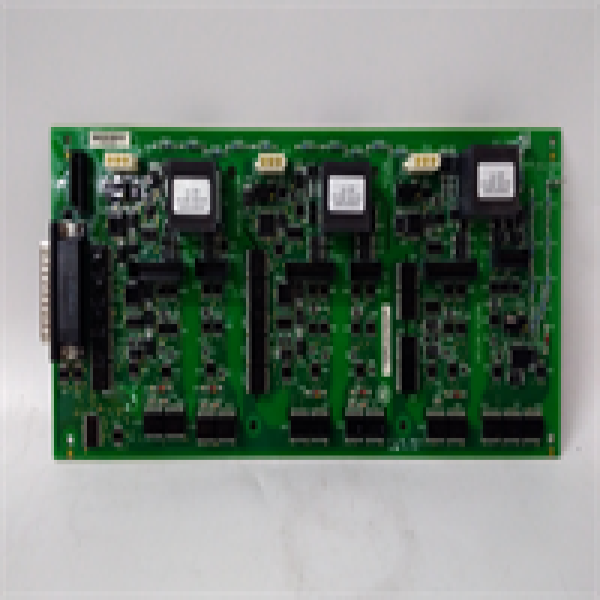

IS210AEBIH1BED GE

Technical Specifications

Main Features and Advantages

The IS210AEBIH1BED offers exceptional versatility through its combined analog input and output capabilities, which significantly reduces the hardware footprint required for comprehensive turbine control. The module provides high-precision signal conversion with 16-bit resolution, ensuring that even small changes in process variables are accurately detected and transmitted. This level of precision is crucial for maintaining tight control over turbine parameters where minor deviations can impact efficiency or safety. Each channel on the IS210AEBIH1BED features individual signal conditioning circuitry that can be configured for different signal types through software settings in the Mark VI engineering tools, providing remarkable flexibility for various application requirements.

Advanced diagnostics and robust protection: The IS210AEBIH1BED incorporates comprehensive diagnostic capabilities that continuously monitor module health and signal integrity. These diagnostics can detect conditions such as wire breaks, short circuits, and signal out-of-range events, providing early warning of potential issues before they affect turbine operation. The module features robust electrical isolation between channels and from the system backplane, protecting the sensitive control system from field-side electrical disturbances and ground loops. This isolation ensures that a problem in one channel does not affect others, maintaining overall system reliability. The IS210AEBIH1BED is designed for high availability with hot-swappable capabilities in supported configurations, allowing for module replacement without shutting down the entire turbine control system, thereby minimizing maintenance-related downtime.

Application Field

The IS210AEBIH1BED finds extensive application throughout gas and steam turbine control systems where precise analog signal handling is required. In combustion turbine applications, the module interfaces with critical sensors measuring fuel flow, inlet guide vane position, exhaust temperature, and compressor pressure ratios. These measurements are essential for the turbine control system to maintain efficient combustion and prevent operating conditions that could lead to equipment damage. The IS210AEBIH1BED also provides control outputs to positioning actuators that regulate fuel valves, inlet guide vanes, and other control elements that determine turbine performance and emissions.

In steam turbine control systems, the IS210AEBIH1BED monitors parameters such as steam chest pressure, bearing metal temperatures, and valve positions, while also providing control signals to hydraulic actuators that govern steam admission valves. The module’s high channel density makes it particularly valuable in complex applications where space in the control cabinet is limited but extensive analog signal processing is required. Beyond traditional power generation, the IS210AEBIH1BED is deployed in mechanical drive applications for compressors and pumps in the oil and gas industry, where reliable analog signal processing is critical for safe and efficient operation. The precision and reliability of the IS210AEBIH1BED make it suitable for any application requiring accurate analog signal interface within the GE Mark VI control architecture.

IS210AEBIH1BED GE

Related Products

IS210AEBIH1BEC: Similar analog electronic board interface with potential variation in channel count or firmware.

IS215ACLEH1A: Analog control module with different I/O configuration for the Mark VI system.

IS200AEBIH1AAA: Earlier version analog electronic board interface for Mark V or earlier systems.

IS210DAMAG1A: Digital input module that complements analog functionality in the same rack.

IS215UCVEH1A: VME processor module that communicates with the IS210AEBIH1BED.

IS200AEPCH1A: Analog input termination panel used in conjunction with the IS210AEBIH1BED.

IS210AEDBH1A: Analog output module with specialized functionality for specific output requirements.

Bently Nevada 3500 System: Vibration monitoring system that often interfaces with Mark VI systems using modules like the IS210AEBIH1BED.
