Description

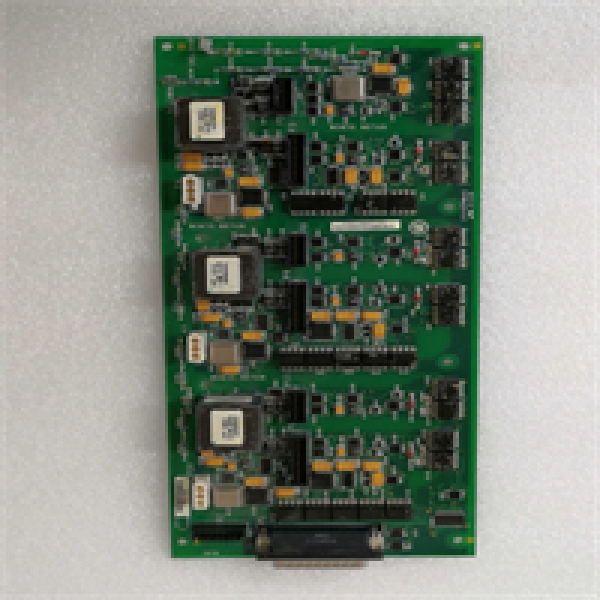

The IS210AEBIH3BEC is an advanced Analog Electronic Board Interface developed by GE Vernova for the Mark VI turbine control system platform. This sophisticated module represents a critical component in modern turbine control architectures, serving as a high-density interface between the central controller and various analog field devices throughout the power generation facility. The IS210AEBIH3BEC specializes in processing both analog input signals from monitoring instruments and analog output signals to control elements, providing bidirectional communication capability that supports comprehensive turbine management. As part of GE’s evolution in control technology, this module incorporates enhanced processing capabilities and improved signal integrity features compared to earlier versions, ensuring precise measurement and control of critical parameters essential for safe and efficient turbine operation.

Designed for integration within the Mark VI system rack, the IS210AEBIH3BEC demonstrates GE’s commitment to robust industrial design and operational excellence in demanding power generation environments. The module functions as a smart interface that conditions, isolates, and converts analog signals with high precision, enabling the main turbine controller to accurately monitor process variables such as temperature, pressure, flow, and position while simultaneously providing precise control signals to actuators and positioning devices. The strategic importance of the IS210AEBIH3BEC within the control hierarchy lies in its ability to maintain signal integrity across long cable runs and in electrically noisy environments, ensuring that control decisions are based on accurate, reliable data. This capability is particularly crucial in turbine applications where measurement accuracy directly impacts efficiency, emissions compliance, and equipment protection.

IS210AEBIH3BEC GE

Technical Specifications

Main Features and Advantages

The IS210AEBIH3BEC delivers exceptional performance through its high channel density and advanced signal processing capabilities. The module’s 16-channel configuration maximizes rack space utilization while providing comprehensive analog interface functionality. Each channel features independent signal conditioning circuitry that can be individually configured for voltage or current operation through software settings in the Mark VI engineering tools, eliminating the need for hardware modifications when changing signal types. The IS210AEBIH3BEC incorporates high-resolution 16-bit analog-to-digital and digital-to-analog converters that ensure precise measurement and control, even for signals representing small percentage changes in process variables. This level of resolution is essential for maintaining tight control loops in critical turbine applications where precision directly impacts efficiency and emissions.

Enhanced diagnostics and system integration: The IS210AEBIH3BEC features comprehensive built-in diagnostics that continuously monitor module health, signal validity, and communication status. These diagnostics can detect conditions such as signal wire break, short circuit, over-range, and under-range conditions, providing early warning of potential issues before they affect turbine operation. The module’s robust electrical isolation protects the control system from field-side transients and ground potential differences, ensuring reliable operation in electrically noisy environments. The IS210AEBIH3BEC is designed for seamless integration with the Mark VI system architecture, supporting hot-swap replacement in compatible configurations to minimize downtime during maintenance operations. The module’s firmware includes features for automatic configuration validation and communication establishment with the main processor, simplifying installation and reducing commissioning time.

Application Field

The IS210AEBIH3BEC finds extensive application in both gas and steam turbine control systems where high-density analog signal processing is required. In advanced gas turbine applications, the module interfaces with critical sensors measuring compressor discharge pressure, fuel flow rates, exhaust temperature, and actuator position feedback signals. These measurements enable the turbine control system to maintain optimal combustion conditions, maximize efficiency, and ensure compliance with emissions regulations. The IS210AEBIH3BEC also provides precise control outputs to hydraulic actuators that position inlet guide vanes, fuel valves, and other control elements that determine turbine performance characteristics. The module’s high channel count makes it particularly valuable in complex combined-cycle power plants where multiple systems require extensive analog monitoring and control.

In steam turbine control applications, the IS210AEBIH3BEC monitors critical parameters including steam chest pressures, bearing temperatures, and valve positions while providing control signals to electro-hydraulic actuators that govern steam admission valves. The module’s precision and reliability make it suitable for implementation in safety-critical control loops where accurate measurement and responsive control action are essential for equipment protection. Beyond traditional power generation, the IS210AEBIH3BEC is deployed in industrial drive applications for compressors, pumps, and other rotating equipment where reliable analog signal processing is required for precise speed and load control. The versatility and robustness of the IS210AEBIH3BEC make it a preferred choice for engineers designing control systems that demand high reliability and precision in challenging industrial environments.

Related Products

IS210AEBIH1BED: Previous version analog electronic board interface with similar functionality.

IS210AEBIH2BEB: Intermediate revision with potential feature enhancements.

IS215ACLEH1B: Analog control module with complementary functionality for expanded I/O requirements.

IS210DAMAG2A: Digital input module that works alongside the IS210AEBIH3BEC in control applications.

IS215UCVEH2B: VME processor module that communicates with the IS210AEBIH3BEC.

IS210AEPCH1A: Analog input termination panel used for field wiring connection to the IS210AEBIH3BEC.

IS210AEDBH2A: Specialized analog output module for specific control applications.

IS210AEIAH1A: Analog input module offering alternative configuration options.
