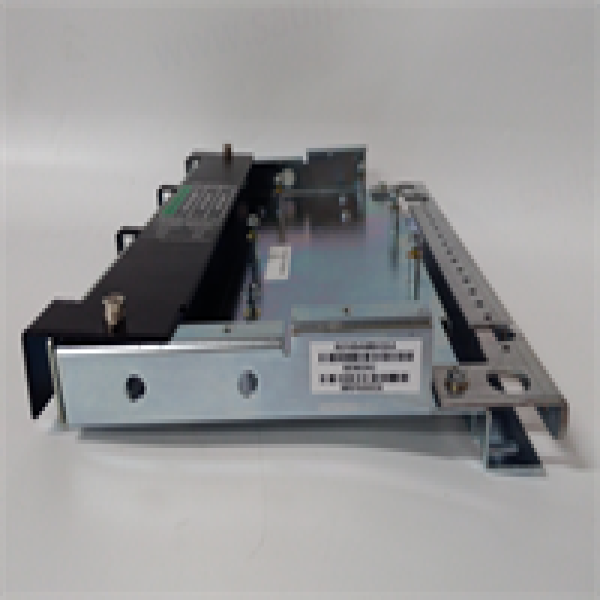

The IS210SAMBH2AA is a critical Servo Actuator Module developed by GE Vernova for the Mark VI and Mark VIe turbine control systems. This specialized interface module serves as the primary control link between the turbine’s main controller and the electro-hydraulic servo actuators that position critical control elements throughout the turbine system. The IS210SAMBH2AA is specifically engineered to provide high-performance motion control for hydraulic actuators governing fuel valves, inlet guide vanes, steam admission valves, and other final control elements that require precise positioning. This module converts control signals from the main processor into precise commands for servo valves while simultaneously monitoring actuator position feedback to ensure accurate and responsive control actions.

As an integral component of GE’s Speedtronic control platform, the IS210SAMBH2AA plays a vital role in maintaining turbine stability, efficiency, and safety during operation. The module is designed to meet the demanding requirements of turbine control applications where rapid response, precise positioning, and reliable operation are essential. The IS210SAMBH2AA incorporates advanced control algorithms that manage the complex dynamics of hydraulic actuation systems, providing smooth and stable control across the entire operating range of the turbine. The module’s robust design ensures reliable performance in the challenging environment of power generation facilities, where temperature variations, vibration, and electrical noise are constant factors. The reliability of the IS210SAMBH2AA directly impacts turbine availability and operational safety, making it a critical component in the overall control system architecture.

IS210SAMBH2AA GE

Technical Specifications

Main Features and Advantages

The IS210SAMBH2AA delivers exceptional performance through its advanced servo control capabilities and comprehensive diagnostic features. The module provides four independent servo control channels, each capable of driving industrial servo valves with high-resolution ±10V DC or current output signals. Each channel includes dedicated circuitry for LVDT/RVDT position feedback measurement with programmable excitation voltage and frequency, ensuring compatibility with various position transducer types. The IS210SAMBH2AA incorporates sophisticated control algorithms including PID compensation with configurable parameters, velocity and acceleration limiting, and adaptive gain scheduling to maintain optimal control performance across different operating conditions. The module’s high-speed control update rate ensures responsive and stable actuator positioning, which is critical for maintaining turbine stability during load changes and transient conditions.

Advanced safety and diagnostic capabilities: The IS210SAMBH2AA features comprehensive monitoring and protection functions that ensure safe operation of hydraulic actuators. The module continuously monitors servo valve current, feedback signal quality, and position tracking error, enabling detection of abnormal conditions such as sticking actuators, failed position transducers, or servo valve malfunctions. The IS210SAMBH2AA includes configurable fault responses that can initiate safe shutdown sequences or activate redundant systems when critical faults are detected. The module’s robust electrical isolation protects the control system from field-side electrical disturbances while ensuring accurate signal measurement in electrically noisy environments. The IS210SAMBH2AA supports hot-swap replacement in compatible system configurations, allowing maintenance activities without requiring complete system shutdown, thereby maximizing turbine availability and reducing operational downtime.

Application Field

The IS210SAMBH2AA finds critical application in turbine control systems where precise hydraulic actuator positioning is required for optimal turbine performance and safety. In gas turbine applications, the module controls servo actuators that position fuel valves, inlet guide vanes, and compressor bleed valves. These precise control actions are essential for maintaining stable combustion, optimizing compressor efficiency, and preventing surge conditions during rapid load changes. The IS210SAMBH2AA enables the turbine control system to implement complex control algorithms that coordinate multiple actuators to maintain optimal turbine operation across varying ambient conditions and load demands.

In steam turbine control systems, the IS210SAMBH2AA governs electro-hydraulic actuators that position main steam admission valves, reheat valves, and extraction control valves. The module’s high-precision control ensures accurate steam flow regulation, which is critical for maintaining turbine efficiency, controlling ramp rates during startup and shutdown, and protecting against mechanical stress. Beyond traditional power generation, the IS210SAMBH2AA is deployed in mechanical drive applications for compressors and pumps in the oil and gas industry, where precise speed and load control are essential for operational safety and process efficiency. The module’s reliability and precision make it suitable for any application requiring high-performance hydraulic actuator control within the GE Mark VI/Mark VIe control architecture, particularly in safety-critical control loops where actuator response directly impacts system stability and equipment protection.

IS210SAMBH2AA GE
