Description

The REXROTH PPC-R22.1N-T-NN-P1-NN-FW is a high-performance, robust Industrial Panel PC (PPC) from Bosch Rexroth’s acclaimed IndraControl series, designed to serve as the central visualization, operation, and computing unit in demanding industrial environments. This model combines a powerful Intel processor with a high-brightness TFT display and a responsive multi-touch screen, all integrated into a compact, ruggedized housing that meets stringent IP65 protection class standards for front-of-panel operation. The core function of the REXROTH PPC-R22.1N-T-NN-P1-NN-FW is to provide machine operators and system integrators with a reliable and intuitive human-machine interface (HMI) that can also execute complex control logic and data processing tasks directly on the device, effectively merging the roles of a traditional HMI and a PLC in some applications.

As part of a modular system, the extensive suffix code “T-NN-P1-NN-FW” specifies its exact configuration, including display type, touch technology, processor performance, memory, and pre-installed software features. This specific configuration of the REXROTH PPC-R22.1N-T-NN-P1-NN-FW is engineered for seamless integration into Bosch Rexroth’s total automation solution, particularly with IndraMotion and IndraWorks engineering software, enabling streamlined machine development from design to commissioning. By selecting the REXROTH PPC-R22.1N-T-NN-P1-NN-FW, OEMs and end-users invest in a computing platform that guarantees high availability, resistance to dust, moisture, and electromagnetic interference, and the processing power needed for advanced Industry 4.0 applications, such as data analytics and connectivity to higher-level MES systems.

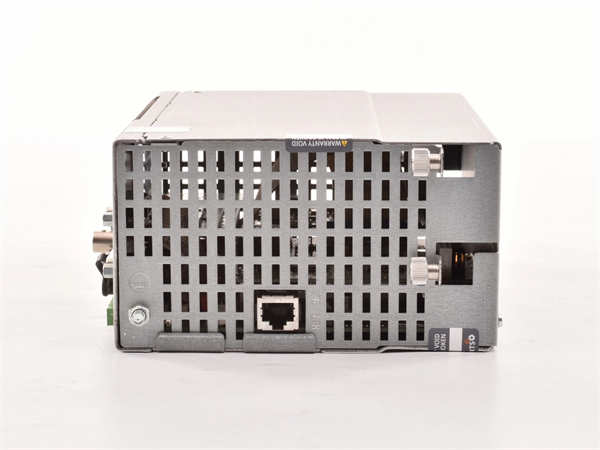

REXROTH PPC-R22.1N-T-NN-P1-NN-FW

Technical Specifications

Main Features and Advantages

The REXROTH PPC-R22.1N-T-NN-P1-NN-FW is distinguished by its robust mechanical construction and high-quality display. The aluminum die-cast housing ensures excellent heat dissipation and provides high electromagnetic compatibility (EMC) and resistance to shock and vibration, making it suitable for installation directly on machinery. The front panel boasts an IP65 rating, allowing it to be cleaned with water and solvents and making it impervious to dust, which is critical for food and beverage, pharmaceutical, and metalworking industries. The high-brightness, Full HD display ensures excellent readability even under strong ambient light conditions, while the projected capacitive touch screen offers intuitive and precise multi-touch gesture control.

Computational Power and Seamless Integration: A key advantage of the REXROTH PPC-R22.1N-T-NN-P1-NN-FW is its powerful Intel processor architecture. This transforms it from a simple display terminal into a potent industrial computer capable of running complex visualization software, handling data logging, and even executing soft-PLC or motion control runtime systems directly on the same hardware. This integration significantly reduces hardware footprint, wiring costs, and potential failure points. The device comes with a rich set of interfaces, including multiple Ethernet ports for network separation (e.g., plant network and machine network), USB ports for peripherals, and legacy serial ports. Its native integration with the Bosch Rexroth IndraWorks engineering environment simplifies the entire project lifecycle, from configuration and programming to diagnostics and maintenance of the REXROTH PPC-R22.1N-T-NN-P1-NN-FW, ensuring maximum productivity for machine builders.

Application Field

The REXROTH PPC-R22.1N-T-NN-P1-NN-FW is ideally suited for applications requiring a central, robust, and intelligent operator interface with local computing power. In the field of machine tools and metal forming machinery, it serves as the main control panel, providing real-time visualization of complex machining processes, axis positions, and tool data. Its processing power allows it to run advanced HMI applications that display 3D models and simulation data, enhancing operator situational awareness and enabling faster setup and troubleshooting.

Within the packaging industry, the REXROTH PPC-R22.1N-T-NN-P1-NN-FW is deployed on primary and secondary packaging machines, as well as on palletizing robots. Here, it manages recipe changes, monitors production speeds, and displays machine efficiency (OEE) data. The robust IP65 front makes it easy to clean and sanitize, which is also a critical requirement in the food, beverage, and pharmaceutical industries for compliance with hygiene standards. Furthermore, the REXROTH PPC-R22.1N-T-NN-P1-NN-FW is a perfect fit for automated assembly lines and test stands in the automotive and electronics sectors, where its reliability and connectivity support the collection and processing of large amounts of production and quality data, feeding it into Manufacturing Execution Systems (MES) for traceability and process optimization.

Related Products

REXROTH PPC-R-02.1N: A smaller version (15-inch) of the same product family for applications with space constraints.

REXROTH PPC-R45.1N: A larger, high-end 45-inch Panel PC for extensive visualization walls and control rooms.

REXROTH IndraControl VCP20: A compact, cost-effective operator panel for less complex visualization tasks.

REXROTH IndraMotion MLC: A modular motion logic controller that can be networked with the PPC for distributed control architectures.

REXROTH IndraDrive: The drive system family that is perfectly synchronized with control solutions using the PPC-R22.1N-T-NN-P1-NN-FW.

REXROTH IndraWorks: The unified engineering software platform used to configure, program, and commission the entire system, including the Panel PC.

REXROTH MTC-01: A mobile terminal controller that can wirelessly connect to the system, complementing the fixed PPC-R22.1N-T-NN-P1-NN-FW.

REXROTH PPC-R22.1N-T-NN-P1-NN-FW

Installation and Maintenance

Pre-installation preparation: Before installing the REXROTH PPC-R22.1N-T-NN-P1-NN-FW, verify that the mounting cutout dimensions in the control panel door are precisely machined according to the datasheet. Ensure the 24 VDC power supply is stable, adequately rated for the unit’s power consumption, and properly fused. The ambient temperature around the installation site should be within the specified operating range to prevent overheating. All necessary communication cables (Ethernet, etc.) should be prepared and routed to the location, taking care to maintain separation from power cables to minimize electrical noise interference.

Maintenance recommendations: The REXROTH PPC-R22.1N-T-NN-P1-NN-FW is designed for minimal maintenance. Regular activity should focus on keeping the front screen clean using a soft, damp cloth and approved cleaning agents to maintain optical clarity and touch sensitivity. Ensure that the ventilation openings on the sides and rear of the unit are not obstructed to allow for proper airflow from the internal fan. It is good practice to periodically check the tightness of the mounting seals and the power terminal connections. For the internal solid-state drive of the REXROTH PPC-R22.1N-T-NN-P1-NN-FW, regular backups of the system image and project data are strongly recommended to enable quick recovery in case of a failure. Operating system and firmware updates should be applied by qualified personnel during planned maintenance windows.
