Description

The ABB SR511 3BSE000863R1 is a high-performance, 16-channel digital input module belonging to the renowned ABB S800 I/O family. It serves as a critical interface component within ABB’s Advant OCS (Open Control System) and later evolution to System 800xA, designed to acquire discrete status signals from the field (such as switch positions, valve feedback, and alarm contacts) and transmit them reliably to the upper-level controller. The core function of the SR511 3BSE000863R1 is to convert 24V DC field signals into logic levels that the control system can process, providing essential data for logic control, interlocking, and sequence operations.

As a member of the modular and highly flexible S800 I/O series, this module is designed for installation on a standard S800 I/O rack and communicates with the controller via a high-speed fieldbus. Its positioning is that of a robust and versatile workhorse in process and discrete manufacturing automation, offering a balance of high channel density, reliable isolation, and ease of configuration. The ABB SR511 3BSE000863R1 is engineered to meet the demands of harsh industrial environments, ensuring long-term stable operation and minimizing unscheduled downtime, thereby delivering significant value in system reliability and maintenance cost reduction.

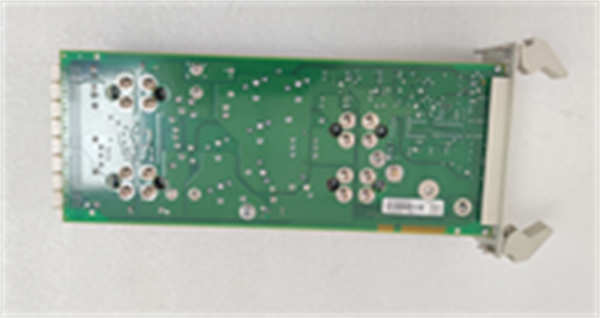

SR511 3BSE000863R1 ABB

Technical Specifications

Main Features and Advantages

High-Density Channel Design: The ABB SR511 3BSE000863R1 integrates 16 independent digital input channels on a single module, maximizing space utilization within the control cabinet. This high density helps reduce the number of modules required for large-scale applications, lowering overall system cost and complexity while simplifying cabling.

Superior Reliability and Isolation: Each input channel is equipped with electrical isolation and features debounce filtering, effectively suppressing electromagnetic interference from the field and preventing signal misreading caused by contact jitter. This robust design ensures that the SR511 3BSE000863R1 can operate stably in electrically noisy industrial environments, providing highly accurate and reliable data input for the control system.

Ease of Installation and Maintenance: The module supports hot-swapping when used in conjunction with a compatible S800 I/O rack and redundant configuration, allowing for online module replacement without shutting down the system, which greatly reduces maintenance time. The use of a removable front connector streamlines the wiring process and facilitates module replacement. Clear per-channel and module-level LED indicators enable quick fault diagnosis and location, minimizing mean time to repair (MTTR).

Seamless System Integration: As a native component of the ABB S800 I/O family, the ABB SR511 3BSE000863R1 is seamlessly supported by ABB’s engineering tools like Control Builder. Configuration and integration are straightforward, ensuring full compatibility and optimized performance within ABB’s ecosystem, from legacy Advant OCS to the modern System 800xA.

Application Field

The ABB SR511 3BSE000863R1 finds widespread application across various industries that require reliable acquisition of discrete signals. In the petrochemical and oil & gas sectors, it is extensively used to monitor the status of pumps, valves, level switches, and pressure switches, forming the foundation for critical safety interlock and process control loops. Its robust design makes it suitable for the challenging conditions found in these plants.

In power generation, particularly in thermal and hydroelectric power plants, the SR511 3BSE000863R1 is employed to collect status information from circuit breakers, isolators, and protection relay contacts, supporting the automation of auxiliary systems and grid control. It is also a common sight in pulp and paper, water and wastewater treatment, and marine industries for tasks such as conveyor belt sequencing, bin level detection, and motor-run feedback. Essentially, any application that requires the dependable conversion of physical contact states (ON/OFF) into a format usable by a high-level control system is an ideal scenario for the ABB SR511 3BSE000863R1.

Related Products

**S800 I/O Racks (e.g., **
TU833 3BSE013240R1): The essential mounting and communication backbone required to host the SR511 module.

**Bus Interface Modules (e.g., **
CI853 3BSE030220R1): These modules act as the gateway, connecting the S800 I/O rack (and its modules like the SR511) to the controller’s master bus.

**Analog Input Module **

SD821 3BSE008514R1: A complementary module in the S800 series for acquiring analog signals like 4-20mA, often used alongside the SR511 in a control system.

**Digital Output Module **

SS822 3BSE008517R1: Used for outputting on/off signals to actuators like solenoid valves and motor starters, working in conjunction with the input from the SR511.

**Power Supply Modules (e.g., **

SD822 3BSE018105R1): Provide stable power to the entire S800 I/O rack and all installed modules, including the SR511.

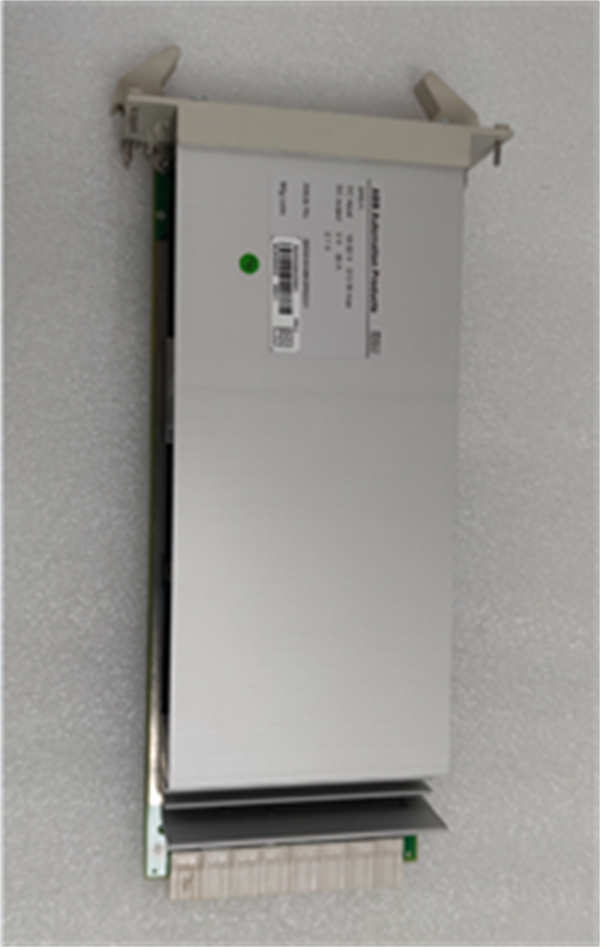

SR511 3BSE000863R1 ABB

Installation and Maintenance

Pre-installation preparation: Before installing the ABB SR511 3BSE000863R1, ensure that the system power is turned off unless the system supports hot swapping. Verify that the S800 baseplate is securely mounted and that the appropriate bus interface module is correctly configured. Have the correct removable front connector on hand and prepare the field wiring diagrams to ensure correct terminal assignments. It is crucial to confirm that the input voltage to each channel does not exceed the 24V DC specification to prevent damage to the SR511 module.

Maintenance recommendations: During operation, regularly inspect the status LEDs on the SR511 3BSE000863R1; a healthy module should have a green “OK” LED lit. If a channel LED is inactive when the field signal is present, check the field device, wiring, and fuse. When replacing the module, ensure you use an identical model and follow the proper hot-swap procedure if applicable. Keep the module and its connectors clean from dust and contaminants. Always refer to the official ABB documentation for detailed safety and maintenance procedures.
