Description

The GE SR745-W2-P5-G5-HI is a sophisticated Motor Management Relay from the renowned GE Multilin 700 series, designed to provide comprehensive protection, control, and monitoring for medium-voltage motors. This specific model, SR745-W2-P5-G5-HI, is a fully configured version that integrates advanced protection functions with a robust set of communication and I/O capabilities. It acts as an intelligent guardian for critical motors, continuously monitoring electrical and thermal conditions to prevent damage from faults such as overload, phase unbalance, stall, jam, ground fault, and undercurrent. The core value of the GE Multilin SR745-W2-P5-G5-HI lies in its ability to not only trip during abnormal conditions but also to provide detailed metering, event recording, and trend data, enabling predictive maintenance and reducing unplanned downtime.

As a central component in industrial motor control centers (MCCs), the GE SR745-W2-P5-G5-HI simplifies system architecture by replacing multiple discrete devices. Its flexible design supports a wide range of control schemes, from direct-on-line to complex reduced-voltage starting. The “W2-P5-G5-HI” suffix indicates a specific factory configuration including a high-current power supply, specific contact I/O, and communication modules, making it a ready-to-deploy solution for demanding applications. By offering a blend of reliable protection and rich operational data, the GE SR745-W2-P5-G5-HI delivers significant value in enhancing motor reliability, optimizing performance, and simplifying maintenance workflows across various industries.

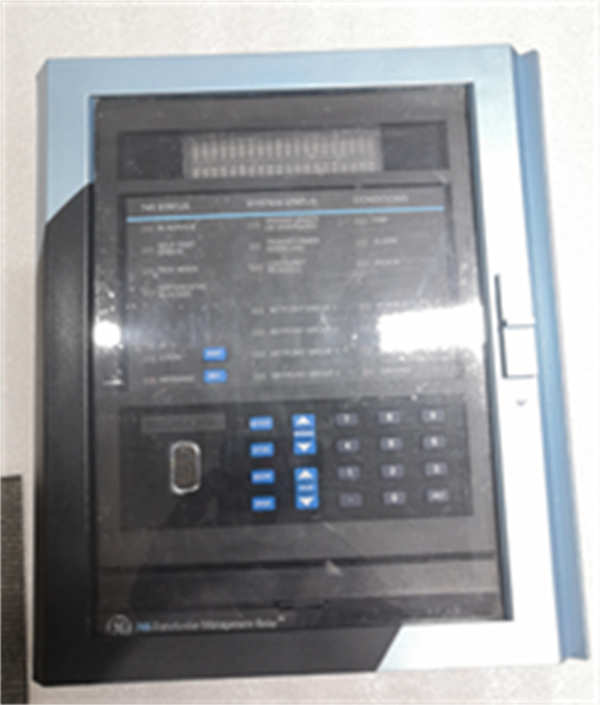

SR745-W2-P5-G5-HI GE

Technical Specifications

Main Features and Advantages

Advanced Motor Thermal Protection: The GE SR745-W2-P5-G5-HI utilizes a sophisticated thermal model that accurately replicates the heating and cooling characteristics of the protected motor. It accounts for positive and negative sequence currents, providing superior overload protection during starts and run conditions, especially under unbalanced voltage scenarios. This ensures the motor’s insulation life is preserved, preventing damage from repeated overheating cycles.

Comprehensive Diagnostics and Metering: This relay goes beyond simple protection by acting as a powerful monitoring tool. It provides real-time metering for all key electrical parameters, including current, voltage, power, and energy. The integrated oscillography and sequence of events (SOE) recorder capture detailed waveform and timestamped event data during faults, allowing for rapid root cause analysis and reducing mean-time-to-repair (MTTR) for the GE SR745-W2-P5-G5-HI and the motor it protects.

Flexible Control and Integration: Equipped with multiple digital inputs and relay outputs, the GE SR745-W2-P5-G5-HI can execute complex control logic directly, reducing the load on the central PLC. Its built-in Modbus TCP/IP (Ethernet) communication allows for seamless integration into modern DCS, SCADA, and plant-wide monitoring systems, enabling remote access to all protection settings, real-time data, and historical records. This connectivity is a key advantage of the SR745-W2-P5-G5-HI, facilitating data-driven decision-making.

Application Field

The GE SR745-W2-P5-G5-HI is engineered for critical motor applications across a wide spectrum of heavy industries. In the water and wastewater treatment sector, it is indispensable for protecting large pump motors, guarding against jam conditions and loss-of-load, which can prevent catastrophic equipment failure and ensure continuous operation. Its robust protection is equally vital in mining and material handling for conveyor belts, crushers, and draglines, where mechanical overloads and stalls are common risks.

Within oil and gas facilities, the GE SR745-W2-P5-G5-HI is deployed to protect compressors and fans, whose failure can lead to entire process train shutdowns and significant financial loss. Its advanced thermal model is crucial for managing the demanding start and run profiles of these high-inertia loads. Similarly, in power generation plants, the relay ensures the reliability of induced draft fans, boiler feed pumps, and other auxiliary drives. The comprehensive monitoring capabilities of the GE SR745-W2-P5-G5-HI make it an ideal solution for any application where motor health is directly tied to production availability and operational safety.

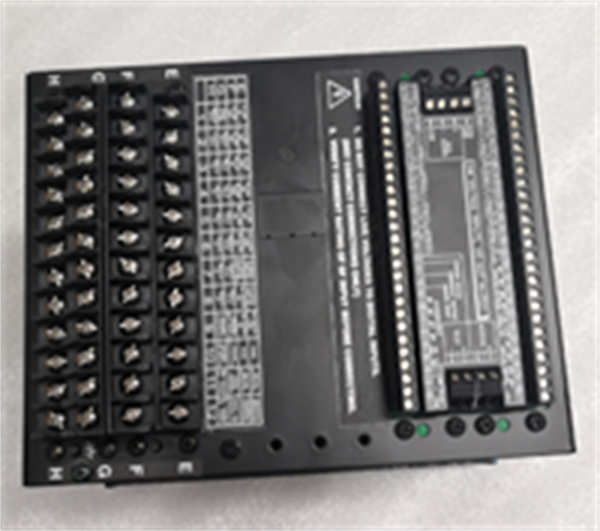

SR745-W2-P5-G5-HI GE

Related Products

GE Multilin SR745: The base model upon which the SR745-W2-P5-G5-HI is configured, with fewer default features.

GE Multilin SR750: A similar motor management relay from the same family, often with differing standard I/O or communication options.

GE Multilin 869: A more advanced, next-generation motor protection relay offering enhanced functionality and larger display.

GE Multilin F650: A digital feeder protection relay often used to protect the circuit supplying the motor control center where the SR745-W2-P5-G5-HI is installed.

GE Multilin UR-series (e.g., UR L6110): Universal relays that can be configured for motor protection, providing an alternative platform for certain applications.

Installation and Maintenance

Pre-installation preparation: Before installing the GE SR745-W2-P5-G5-HI, carefully review the installation manual to verify the wiring diagrams for current transformers (CTs), voltage inputs (if used), control power, and binary I/O. Ensure the CT ratios and motor nameplate data (FLA, service factor, thermal limits) are accurately recorded for configuration. The mounting location should be in a well-ventilated area of the switchgear or MCC, respecting the specified operating temperature range for the SR745-W2-P5-G5-HI.

Maintenance recommendations: Regular maintenance for the GE SR745-W2-P5-G5-HI primarily involves verifying its operational health through its self-diagnostics and reviewing stored event logs and thermal data. Periodically, a functional test should be performed using a secondary injection test set to validate the accuracy of key protection functions like overcurrent and ground fault. Ensure that the firmware of the GE SR745-W2-P5-G5-HI is kept up to date to benefit from the latest features and security patches. Always de-energize the equipment before performing any physical maintenance.
