Description

The GE SR750-P5-G5-S1-HI-A20-R is a highly advanced and fully-featured motor and feeder management relay from the esteemed GE Multilin 750 series. This specific model represents a comprehensive factory configuration designed to provide an all-in-one solution for protecting, controlling, and monitoring critical assets in industrial power systems. The GE Multilin SR750-P5-G5-S1-HI-A20-R combines robust protection functions for both motors and electrical feeders with sophisticated control logic, high-fidelity metering, and extensive communication capabilities. It serves as an intelligent sentinel on your network, capable of handling complex protection schemes that would traditionally require multiple discrete devices, thereby simplifying system design and enhancing reliability.

The detailed suffix code indicates its extensive capabilities: ‘P5’ denotes a specific set of contact I/O, ‘G5’ includes advanced communication modules, ‘S1’ specifies the standard display, ‘HI’ is a high-range power supply, and ‘A20-R’ signifies a highly configured unit with specific hardware and software options. This makes the GE SR750-P5-G5-S1-HI-A20-R a ready-to-deploy platform for the most demanding applications. By offering unparalleled visibility into system health and performance through its detailed metering, event recording, and oscillography, the GE SR750-P5-G5-S1-HI-A20-R delivers immense value in minimizing downtime, optimizing maintenance schedules, and protecting high-value equipment from catastrophic failure.

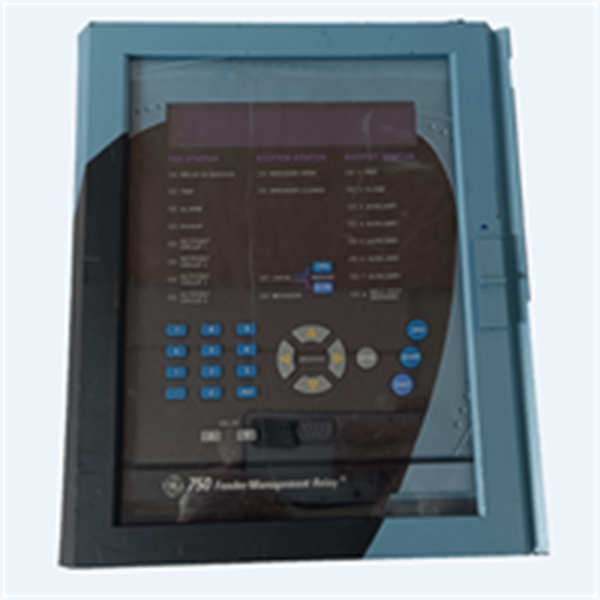

SR750-P5-G1-S1-HI-A20-R GE

Technical Specifications

Main Features and Advantages

Dual-Role Protection Capability: A key strength of the GE SR750-P5-G5-S1-HI-A20-R is its versatility in protecting both motor and feeder applications within a single device. For motors, it offers advanced thermal modeling, start protection, and jam detection. For feeders, it provides comprehensive overcurrent, directional power, and voltage protection. This flexibility allows for standardized hardware across a facility, reducing spare parts inventory and training costs.

Advanced Communication and Integration: Equipped with dual Modbus RS485 ports and a Profibus DP module, the GE SR750-P5-G5-S1-HI-A20-R is built for seamless integration into diverse industrial automation architectures. It can communicate simultaneously with different master systems, such as a PLC via Profibus and a plant-wide SCADA via Modbus, ensuring all operational and diagnostic data from the SR750-P5-G5-S1-HI-A20-R is accessible for informed decision-making.

Powerful FlexLogic™ and Diagnostics: The integrated FlexLogic™ programmable logic allows users to create custom control and protection schemes without external hardware. This, combined with high-resolution oscillography and a detailed sequence of events (SOE) recorder, enables precise fault analysis and rapid system restoration. The ability of the GE SR750-P5-G5-S1-HI-A20-R to record waveform data during disturbances is invaluable for identifying the root cause of complex power system issues.

Application Field

The GE SR750-P5-G5-S1-HI-A20-R is engineered for complex and critical applications across a wide range of industries. In large industrial plants like metal smelting or automotive manufacturing, it is ideal for protecting main incoming feeders, bus tie circuits, and large process motors, ensuring stability across the entire electrical distribution network. Its robust I/O and communication suite make it a perfect fit for these interconnected environments.

Within the water and wastewater sector, the GE SR750-P5-G5-S1-HI-A20-R provides superior protection for high-inertia pump motors, guarding against jam conditions and providing essential power quality metering. In oil and gas and mining, where reliability is paramount, it protects critical drives like compressors and conveyor systems in harsh environments. The Profibus DP communication of the GE SR750-P5-G5-S1-HI-A20-R is particularly valuable in these settings, allowing for direct and fast integration into PLC-based control systems commonly used for process automation, streamlining data exchange and control commands.

Related Products

GE Multilin SR750: The base platform model without the specific configuration of the SR750-P5-G5-S1-HI-A20-R.

GE Multilin SR745: A motor-focused management relay, often compared with the SR750 for motor-centric applications.

GE Multilin SR760: A more advanced feeder management relay with additional protection and automation features.

GE Multilin 869: A next-generation, high-end motor protection relay offering enhanced graphics and functionality.

GE Multilin UR-series (UR L6110): A universal relay platform that can be configured for similar protection functions, providing an alternative architecture.

Installation and Maintenance

Pre-installation preparation: Prior to installing the GE SR750-P5-G5-S1-HI-A20-R, a thorough review of the specific configuration sheet for this model is essential to understand its pre-defined I/O and communication setup. Verify the CT and VT ratios, ensure the control power matches the ‘HI’ specification, and confirm the Profibus DP node address and baud rate settings. The panel cutout and mounting must comply with the dimensional drawings to ensure proper grounding and heat dissipation for the SR750-P5-G5-S1-HI-A20-R.

Maintenance recommendations: Routine maintenance for the GE SR750-P5-G5-S1-HI-A20-R should include periodic checks of its self-diagnostics status and a review of its stored event and fault records. The LED indicators and LCD display provide immediate health status. It is recommended to periodically verify the accuracy of its metering values against standard references and test critical protection functions via secondary injection. Keeping the configuration files of the GE SR750-P5-G5-S1-HI-A20-R securely backed up is crucial for quick recovery in case of a replacement.
