Description

The ABB 3ASC25H219B DATX133 represents the cutting edge of industrial communication technology, serving as a high-performance PROFINET interface module specifically engineered for ABB’s ACS880 drive series. This sophisticated communication module functions as a vital gateway that seamlessly integrates drive systems into modern industrial Ethernet networks, enabling real-time data exchange and control within Industry 4.0 environments. The primary mission of the ABB 3ASC25H219B DATX133 is to bridge the powerful motor control capabilities of ACS880 drives with the high-speed, deterministic requirements of PROFINET IO networks, facilitating precise synchronization and comprehensive monitoring across automated systems. This module transforms the drive into an intelligent network node capable of exchanging extensive parameter sets, status information, and diagnostic data with higher-level control systems.

As an integral component of ABB’s modular drive architecture, the ABB 3ASC25H219B DATX133 expands the connectivity horizon beyond traditional fieldbus systems, offering the bandwidth and flexibility required for today’s data-intensive industrial applications. The module supports both standard PROFINET RT (Real-Time) and IRT (Isochronous Real-Time) communication, making it suitable for applications demanding precise motion synchronization and coordinated drive control. The value proposition of the ABB 3ASC25H219B DATX133 lies in its ability to reduce wiring complexity through network integration, enhance system diagnostics through comprehensive data accessibility, and enable advanced control strategies through high-speed, deterministic communication. Its industrial-grade design ensures reliable operation in demanding environments, establishing it as a cornerstone for modern automated systems where connectivity, data transparency, and control precision are paramount.

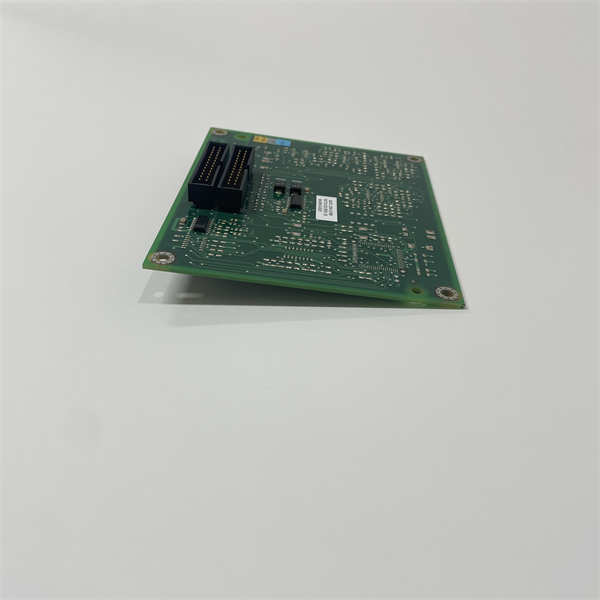

ABB 3ASC25H219B DATX133

Technical Specifications

Main Features and Advantages

High-Performance PROFINET Integration: The ABB 3ASC25H219B DATX133 delivers exceptional network performance with support for PROFINET IRT (Isochronous Real-Time), enabling precise synchronization of multiple drives for complex motion control applications. This capability is crucial for applications requiring tight coordination between axes, such as in printing machines, packaging lines, and material handling systems. The module’s dual-port switch architecture allows for linear network topology, simplifying cabling and reducing installation costs while maintaining network integrity and performance.

Advanced Diagnostic Capabilities: This module provides comprehensive diagnostic features that extend from the network level down to individual drive parameters. The ABB 3ASC25H219B DATX133 supports PROFINET diagnostics according to PROFIenergy profile, enabling energy management functions and detailed fault localization. Network statistics, communication status, and drive health information are readily accessible through standard engineering tools, facilitating quick troubleshooting and reducing system downtime through predictive maintenance capabilities.

Robust Industrial Design: Engineered for harsh industrial environments, the ABB 3ASC25H219B DATX133 features robust electrical isolation and noise immunity characteristics that ensure reliable communication in electrically noisy conditions. The module’s construction withstands vibration, temperature variations, and industrial contaminants, maintaining stable operation in demanding applications. Its industrial-grade components and validated design guarantee long-term reliability and consistent performance in continuous operation scenarios.

Seamless Engineering Integration: The ABB 3ASC25H219B DATX133 offers straightforward integration with common engineering environments through standardized GSDML device description files. Configuration and parameterization are handled efficiently within familiar PLC programming tools, reducing engineering time and minimizing configuration errors. The module supports device replacement without removable medium (FRMW), enabling quick module replacement while automatically restoring parameters from the controller, significantly reducing maintenance downtime.

Application Field

The ABB 3ASC25H219B DATX133 finds extensive application in industries requiring high-speed, synchronized drive control and comprehensive data integration. In automotive manufacturing, the module enables precise synchronization of robotic cells, conveyor systems, and automated guided vehicles through PROFINET IRT, ensuring millimeter-perfect coordination in assembly processes. The high-speed data exchange capability of the ABB 3ASC25H219B DATX133 supports real-time monitoring of drive performance and predictive maintenance strategies, crucial for maintaining uninterrupted production flow in highly automated facilities.

In packaging and converting industries, the module facilitates tight speed and position synchronization between multiple drives controlling web handling, printing, and sealing operations. The deterministic communication provided by the ABB 3ASC25H219B DATX133 ensures consistent product quality and minimizes material waste through precise coordination of all machine sections. The module’s comprehensive diagnostic capabilities help maintain high equipment effectiveness by providing early warnings of potential issues before they impact production.

The ABB 3ASC25H219B DATX133 also plays a vital role in material handling and logistics centers, where it integrates drive systems for sortation equipment, stacker cranes, and conveyor networks into centralized control systems. In food and beverage processing, the module enables remote monitoring and control of mixer drives, pump systems, and filling machines while withstanding the challenging environmental conditions. For water treatment and infrastructure applications, the ABB 3ASC25H219B DATX133 provides reliable network connectivity for critical pump and blower drives, supporting system-wide optimization and energy management through continuous data availability.

Related Products

ABB 3ASC25H204 DAPU100: The main Drive Application and Control Unit that the DATX133 module interfaces with in ACS880 drives.

ABB 3ASC25H214 DATX130: A communication module variant supporting different protocol configurations for diverse network requirements.

ABB 3ASC25H215E DATX131: Multi-protocol communication module offering DeviceNet and PROFIBUS support as an alternative to PROFINET.

ABB SDCS-IOB-4: I/O Extension Module that complements the network capabilities of the DATX133 with additional local I/O interfaces.

ABB SDCS-PIN-51: Pulse Encoder Interface Module for applications requiring high-precision feedback to drives connected via DATX133.

ABB ACS880-01: Cabinet-built drive unit designed to accommodate the ABB 3ASC25H219B DATX133 communication module.

ABB ACS880-04: Modular drive unit providing the physical slot and electrical interface for the DATX133 module installation.

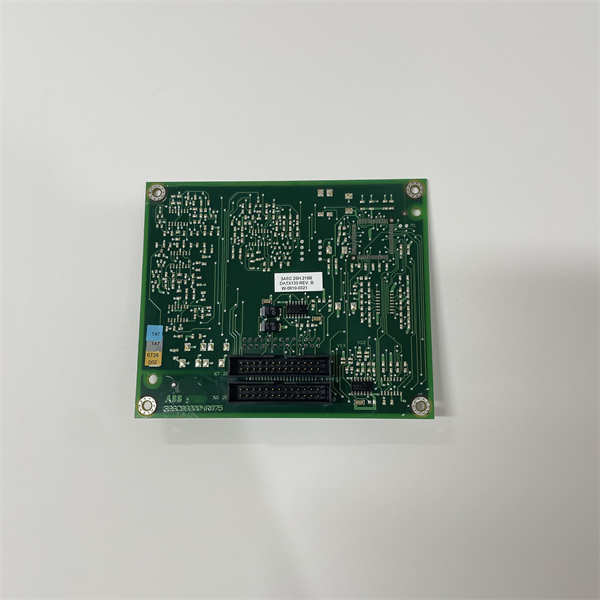

ABB 3ASC25H219B DATX133

Installation and Maintenance

Pre-installation preparation: Before installing the ABB 3ASC25H219B DATX133, ensure complete power isolation of the ACS880 drive and verify network requirements including IP address assignment, device name configuration, and network topology planning. Prepare the necessary PROFINET cabling and ensure availability of the latest GSDML file for your engineering tool. For the ABB 3ASC25H219B DATX133, verify compatibility with your drive firmware version and plan the network integration considering real-time communication requirements and network load calculations.

Maintenance recommendations: Regular maintenance for the ABB 3ASC25H219B DATX133 involves monitoring network performance through available diagnostic tools and periodically checking physical connections for integrity. The module’s status indicators provide immediate visual feedback about communication health, while network statistics available through engineering tools offer detailed performance metrics. For the ABB 3ASC25H219B DATX133, maintain updated firmware and documentation, and establish regular backup procedures for device parameters to facilitate quick recovery in case of module replacement. Network cable integrity should be verified periodically, and environmental conditions should be monitored to ensure they remain within specified operating ranges.
