Description

The GE SR745-W2-P1-G1-HI-A-L-R is a sophisticated power quality and energy meter from GE’s renowned Multilin series, designed for comprehensive electrical parameter monitoring in industrial, commercial, and utility applications. This specific model, with its detailed suffix string, indicates a fully-configured unit with specific options for power supply, input types, communication protocols, display, and additional features. The SR745 serves as a vital data acquisition node within an electrical system, providing precise measurement of volts, amps, power, energy, power factor, and harmonics, enabling users to manage energy consumption, analyze power quality, and ensure billing accuracy.As part of the Multilin family, the GE SR745 is engineered for high accuracy and reliability. The “W2” suffix typically denotes a wide-range power supply, allowing the meter to be installed in various voltage systems without needing a specific supply unit. The “P1” and “G1” options often refer to specific voltage/current input ranges and standard communication protocols like Modbus RTU, making the SR745-W2-P1-G1-HI-A-L-R ready for integration into most automation networks. The “HI” indicates a high-intensity display for clear visibility, while “A”, “L”, and “R” suffixes cover aspects like agency approvals, language, and relay output options, making this particular variant a versatile and ready-to-deploy solution for complex monitoring tasks.

Technical Specifications

Main Features and Advantages

The GE SR745-W2-P1-G1-HI-A-L-R offers a combination of precision and flexibility that makes it a standout choice for power monitoring. Its high-accuracy measurement capabilities, often achieving Class 0.2 for energy, make it suitable for revenue-grade metering and cost allocation purposes. The meter provides detailed power quality analysis, including total harmonic distortion (THD) for voltage and current, allowing users to identify and troubleshoot power quality issues that could affect equipment performance and lifespan.Configuration versatility is a key advantage of the SR745. The specific suffix code W2-P1-G1-HI-A-L-R signifies a unit pre-configured with a wide-ranging power supply, specific input scaling, standard communication, a high-visibility display, agency approvals, and relay outputs. This eliminates guesswork during procurement and ensures the meter arrives ready for its intended application. The robust communication capabilities, typically including Modbus RTU, allow the GE SR745 to seamlessly integrate into SCADA, BMS, or other energy management systems, enabling real-time data monitoring, historical trending, and remote configuration.The SR745-W2-P1-G1-HI-A-L-R is built for durability and ease of use. The high-intensity display ensures parameters are easily readable even in low-light conditions. The inclusion of relay outputs provides a direct means for implementing alarm-based control schemes, such as triggering a warning light or shedding a non-critical load upon detecting a demand threshold. This combination of advanced analytics, flexible integration, and robust hardware makes the GE SR745 a comprehensive solution for optimizing energy usage and improving electrical system reliability.

Application Field

The GE SR745-W2-P1-G1-HI-A-L-R is ideally suited for a wide range of applications requiring detailed electrical monitoring. In industrial facilities, it is commonly used for main incoming service monitoring, large motor or feeder circuit monitoring, and for sub-metering different production areas or cost centers. The revenue-grade accuracy of the SR745 makes it perfect for internal cost allocation and verifying utility bills, while its power quality features help maintain the health of sensitive manufacturing equipment.In commercial buildings and campuses, the SR745 serves as a key component for building management systems (BMS). It provides the data necessary for energy management initiatives, allowing facility managers to track consumption patterns, identify waste, and verify the savings from energy efficiency projects. The SR745-W2-P1-G1-HI-A-L-R can be deployed at the main switchboard and at major distribution panels to create a comprehensive picture of energy flow throughout the property.For renewable energy installations, such as solar or wind farms, the GE SR745 meter is used at the point of interconnection with the grid to accurately measure the energy exported. Its robust communication capabilities allow for remote monitoring of the system’s performance. The power quality measurements also ensure that the renewable generation source complies with utility interconnection standards, making the SR745-W2-P1-G1-HI-A-L-R a critical component for both performance monitoring and regulatory compliance.

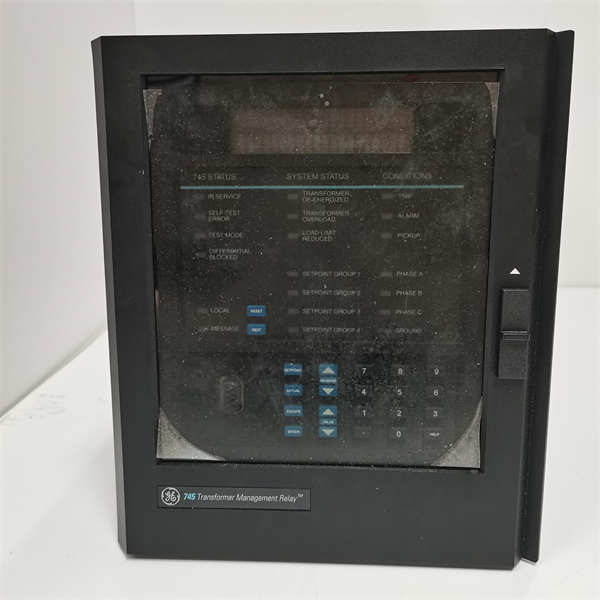

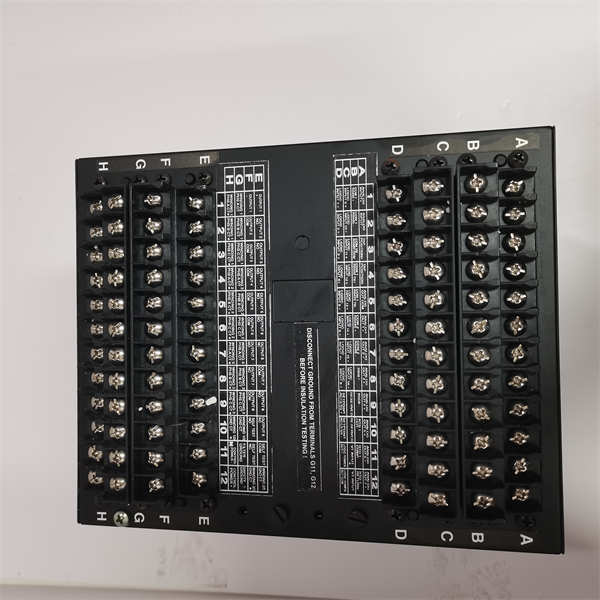

GE SR745-W2-P1-G1-HI-A-L-R

Related Products

1. GE SR735: A similar Multilin power meter, often with a slightly different feature set or form factor.

2. GE SR770: A more advanced model in the series, potentially offering higher accuracy or additional analysis features.

3. GE F650: A digital relay that also offers extensive metering and recording capabilities, suitable for protection and control applications.

4. GE EPM 6000: Another series of energy and power quality meters from GE, designed for different market segments or panel layouts.

5. Current Transformers (CTs): Essential accessories for the SR745 to measure current, such as GE ML-15 or equivalent CTs.

6. Potential Transformers (PTs): Used when the system voltage exceeds the direct input capability of the meter.

7. GE Communicator Software: Configuration and setup software used to program and retrieve data from the SR745 meter.

8. Modbus Gateway: Devices like GE D400 that can protocol translate Modbus RTU to Modbus TCP/IP or other networks for easier integration.

Installation and Maintenance

Pre-installation preparation: Before installing the GE SR745-W2-P1-G1-HI-A-L-R, verify that the incoming power is disconnected. Ensure you have the correct current transformers (CTs) with the proper ratio and rating. Check the wiring diagrams provided in the manual specific to the “P1” input configuration. Have the necessary tools ready, including DIN rail mounting hardware, wire strippers, and appropriate screwdrivers. It is also advisable to have the GE Communicator software and a communication cable available for initial configuration and testing of the SR745 meter.Maintenance recommendations: The GE SR745 is a solid-state device requiring minimal maintenance. Periodic visual inspections should be conducted to check for any signs of physical damage, loose wiring, or abnormal display readings. Ensure the communication ports remain clean and secure. Regularly verify that the measured values on the SR745-W2-P1-G1-HI-A-L-R display align with other system measurements or expectations. The internal firmware should be checked periodically for updates from GE to ensure optimal performance and access to the latest features. Keeping a record of the meter’s configuration settings is also recommended for easy replacement if necessary.
