Description

The GE SR745-W2-P1-G1-HI-A-L-R-E is a sophisticated multi-function feeder protection relay manufactured by General Electric, designed to provide comprehensive protection and management for electrical distribution systems. This advanced relay represents GE’s commitment to delivering high-performance protection solutions that ensure operational reliability and system stability in medium-voltage power distribution networks. The SR745-W2-P1-G1-HI-A-L-R-E incorporates state-of-the-art protection algorithms and monitoring capabilities, making it suitable for critical feeder applications in industrial, commercial, and utility power systems where precise protection and control are essential.As part of GE’s extensive SR745 series protection portfolio, the GE SR745-W2-P1-G1-HI-A-L-R-E offers a complete suite of protection functions including overcurrent protection, ground fault detection, voltage protection, and frequency protection. The relay’s advanced design features multiple input options for current and voltage measurements, enabling comprehensive system condition assessment. The SR745-W2-P1-G1-HI-A-L-R-E integrates seamlessly with control systems through various communication protocols, providing real-time data for condition monitoring and system optimization in complex electrical distribution networks.The GE SR745-W2-P1-G1-HI-A-L-R-E delivers exceptional protection accuracy and reliability for feeder applications, supporting systems ranging from simple radial feeders to complex network configurations in demanding industrial environments. Its specialized configuration options and comprehensive diagnostic features make it an ideal solution for applications requiring precise feeder protection and advanced monitoring capabilities. The relay’s robust construction ensures reliable performance even in challenging electrical environments, contributing to overall system reliability and reduced maintenance costs.

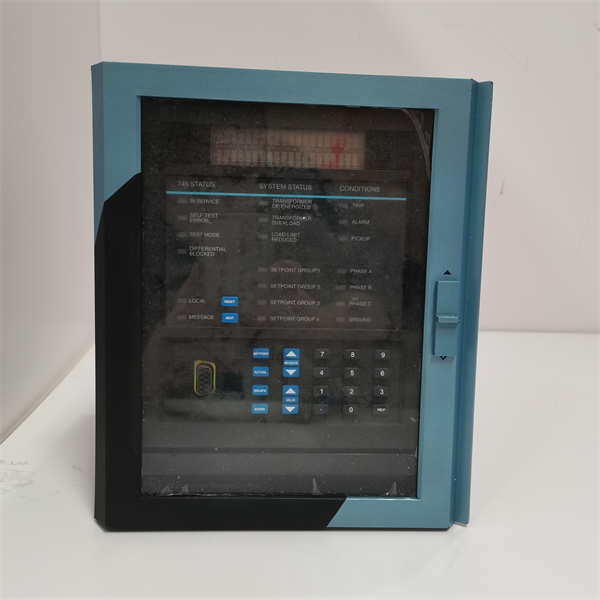

GE SR745-W2-P1-G1-HI-A-L-R-E

Technical Specifications

Main Features and Advantages

Advanced Feeder Protection: The GE SR745-W2-P1-G1-HI-A-L-R-E incorporates sophisticated protection algorithms including directional overcurrent protection, sensitive ground fault detection, and voltage-based protection elements. The relay’s comprehensive protection suite includes multiple setting groups, allowing adaptation to different system configurations and operational scenarios. These advanced algorithms ensure optimal feeder protection while maintaining coordination with other protective devices in the distribution system.Comprehensive Monitoring Capabilities: The SR745-W2-P1-G1-HI-A-L-R-E provides extensive system monitoring functions including power quality analysis, energy metering, and sequence of events recording. The relay’s advanced metering capabilities include real-time measurement of current, voltage, power, power factor, and energy consumption with high accuracy. These monitoring features support condition-based maintenance strategies and enable optimization of distribution system operation.Flexible Communication Integration: Supporting multiple communication protocols including dual Ethernet ports with IEC 61850, Modbus TCP, and DNP3, the GE SR745-W2-P1-G1-HI-A-L-R-E enables seamless integration with various control systems and SCADA platforms. The relay’s communication capabilities facilitate real-time data exchange for system monitoring, remote configuration, and historical data analysis. The redundant communication ports ensure high availability for critical protection and control applications.User-Friendly Interface and Configuration: The relay features a full graphics LCD interface with clear display of measured values, status information, and event records. The GE SR745-W2-P1-G1-HI-A-L-R-E’s intuitive menu-driven configuration simplifies setup and operation, while its comprehensive event recording capabilities provide detailed information for troubleshooting and analysis. The easy-to-use interface reduces training requirements and enables quick configuration changes, enhancing operational efficiency.

Application Field

In industrial power distribution systems, the GE SR745-W2-P1-G1-HI-A-L-R-E feeder protection relays provide critical protection for medium-voltage feeders supplying manufacturing processes. The relays monitor electrical parameters continuously, detecting faults and abnormal conditions in distribution networks. The SR745-W2-P1-G1-HI-A-L-R-E’s advanced protection functions ensure selective coordination, minimizing the impact of faults on production processes and maintaining power supply reliability.For utility distribution networks, the GE SR745-W2-P1-G1-HI-A-L-R-E protects feeders in substations and distribution centers. The relay’s comprehensive protection functions safeguard distribution equipment against overcurrent conditions, ground faults, and voltage abnormalities. The SR745-W2-P1-G1-HI-A-L-R-E’s communication capabilities enable integration with utility SCADA systems, providing operators with real-time visibility into feeder status and performance of critical distribution assets.In commercial and institutional facilities, the protection relay ensures reliable operation of medium-voltage distribution systems feeding large campuses, hospitals, and data centers. The GE SR745-W2-P1-G1-HI-A-L-R-E’s robust design provides accurate protection against electrical faults while supporting power quality monitoring. The relay’s advanced monitoring features support energy management programs, contributing to operational efficiency and cost reduction in large facility operations.

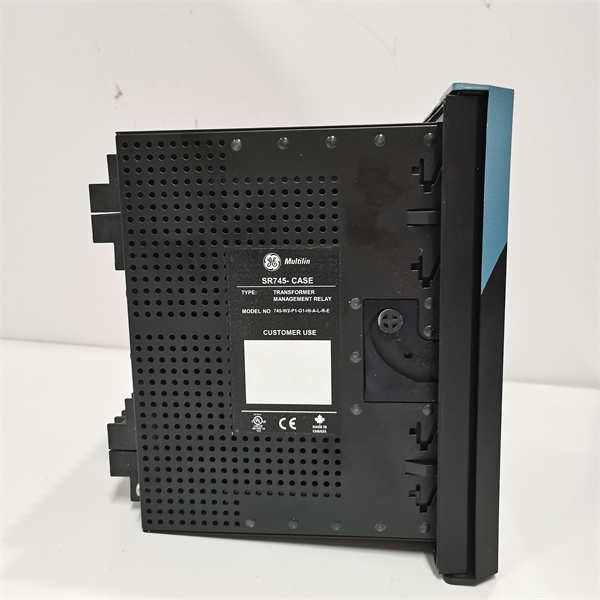

GE SR745-W2-P1-G1-HI-A-L-R-E

Related Products

SR745-W2-P1-G1-HI-A-L-R: Basic version without Ethernet optionSR750: Transformer protection relay for complete system protectionSR469: Motor protection relay for motor applicationsSR489: Motor protection relay with enhanced featuresF650: Generator protection relay for rotating equipmentUR Family: Universal relay platform for various applicationsQuickSet software: Configuration and monitoring softwareGE Communicator: Advanced communication software

Installation and Maintenance

Pre-installation preparation: The GE SR745-W2-P1-G1-HI-A-L-R-E requires proper mounting in a control panel with adequate ventilation and clearance. Ensure correct CT and VT connections following manufacturer guidelines, with particular attention to polarity and rating specifications. Verify power supply compatibility and use appropriate wiring practices to prevent electrical noise interference. Follow torque specifications for terminal connections to ensure reliable operation and maintain safety standards.Maintenance recommendations: Regular verification of protection settings and calibration ensures ongoing accuracy of the GE SR745-W2-P1-G1-HI-A-L-R-E. Monitor relay diagnostics and review event records periodically to identify potential issues. Maintain current firmware versions and backup configuration settings to prevent data loss. The relay’s comprehensive self-diagnostics provide early warning of potential issues, supporting proactive maintenance planning and reducing unexpected downtime in critical operations.
