Description

The RELIANCE VZ7000 UVZ701E is a high-performance AC drive manufactured by Reliance Electric, designed for demanding industrial applications requiring precise motor control and robust performance. This advanced variable frequency drive represents the pinnacle of Reliance’s drive technology, incorporating cutting-edge power electronics and sophisticated control algorithms to deliver exceptional performance in the most challenging industrial environments. The VZ7000 UVZ701E combines advanced features with rugged construction, making it suitable for heavy-duty applications where reliability, precision, and durability are paramount requirements.As part of the premium VZ7000 series, the RELIANCE UVZ701E drive offers comprehensive motor control capabilities featuring enhanced thermal management, advanced diagnostics, and extensive communication options. The drive’s design incorporates the latest IGBT technology and high-speed DSP processing, delivering precise speed and torque control across the entire operating range. The VZ7000 UVZ701E integrates seamlessly with modern automation systems through multiple industrial protocols, providing flexible integration options while maintaining the industrial robustness expected from Reliance Electric’s flagship products.The RELIANCE VZ7000 UVZ701E delivers outstanding performance for critical industrial applications, supporting operations in heavy manufacturing, mining, metals processing, and other demanding industries. Its heavy-duty design and advanced cooling system ensure reliable operation in extreme conditions, while comprehensive protection features safeguard both the drive and connected equipment. The drive’s intuitive interface and advanced programming capabilities simplify setup and operation, contributing to reduced commissioning time and enhanced operational efficiency in mission-critical applications.

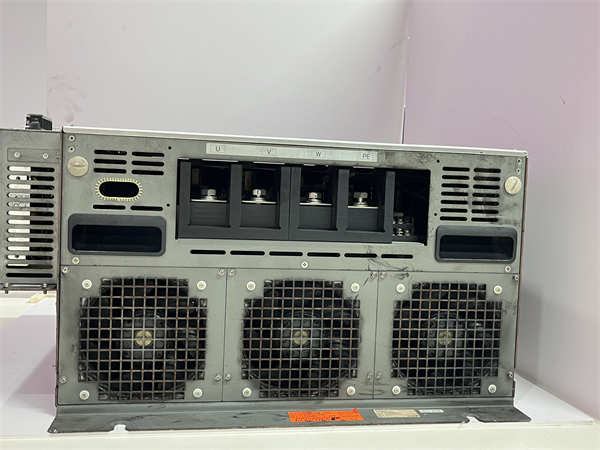

RELIANCE VZ7000 UVZ701E

Technical Specifications

Technical Specifications

Main Features and Advantages

Advanced Control Technology: The RELIANCE VZ7000 UVZ701E utilizes sophisticated flux vector control technology that provides exceptional torque performance and precise speed regulation, achieving ±0.1% speed regulation accuracy even under varying load conditions. The drive’s advanced control algorithms include automatic motor adaptation and intelligent tuning capabilities, ensuring optimal performance with various motor types. The high-speed processing capability supports complex applications requiring rapid response and precise control, making the VZ7000 UVZ701E suitable for the most demanding industrial processes.Robust Construction and Reliability: Engineered for heavy-duty applications, the VZ7000 UVZ701E features a rugged design with IP54/NEMA 12 protection, ensuring reliable operation in harsh industrial environments with dust, moisture, and chemical exposure. The drive’s advanced thermal management system includes oversized heat sinks and intelligent cooling fan control, maintaining optimal operating temperatures even under full load conditions. The robust construction and high-quality components ensure long service life and minimal downtime in continuous operation scenarios.Comprehensive Connectivity and Integration: With support for multiple industrial protocols including EtherNet/IP, PROFINET, and Modbus TCP, the RELIANCE VZ7000 UVZ701E offers seamless integration into modern automation architectures. The drive’s dual Ethernet ports enable daisy-chain connectivity and network redundancy, while the embedded web server provides remote access for monitoring and configuration. These advanced connectivity features support Industry 4.0 initiatives and enable comprehensive data exchange for predictive maintenance and optimization.Enhanced Safety and Protection: The drive incorporates comprehensive safety features including Safe Torque Off (STO) functionality, comprehensive fault protection, and advanced diagnostics. The VZ7000 UVZ701E’s protection system monitors all critical parameters and provides detailed fault analysis with time-stamped event logging. The drive’s robust design includes high immunity to power disturbances and electrical noise, ensuring reliable operation in electrically challenging environments.

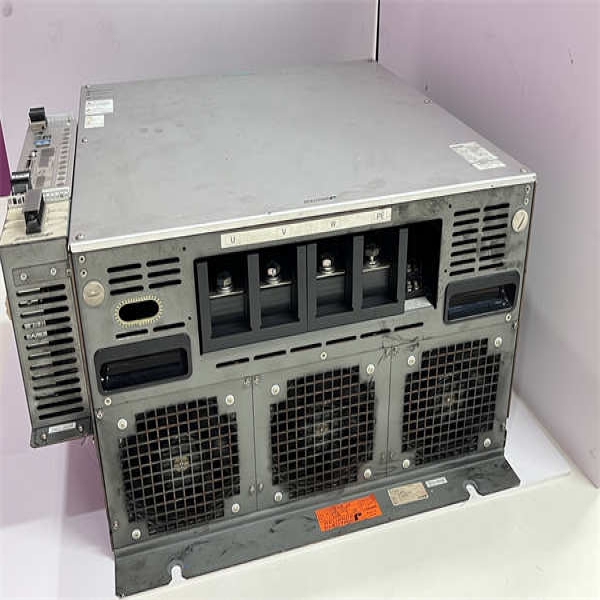

RELIANCE VZ7000 UVZ701E

Application Field

In heavy manufacturing and metals processing industries, the RELIANCE VZ7000 UVZ701E AC drives provide critical control for rolling mills, extruders, and large processing equipment. The drive’s high torque capability and precise control ensure consistent product quality in continuous production processes. The VZ7000 UVZ701E’s robust design withstands the extreme conditions found in metals processing facilities, while its advanced features support energy optimization and process improvement initiatives.For mining and mineral processing applications, the drive controls crushers, conveyors, and grinding mills in demanding environmental conditions. The RELIANCE VZ7000 UVZ701E’s high reliability and advanced protection features ensure continuous operation in remote locations where downtime can have significant operational impacts. The drive’s ability to handle high starting torques and variable loads makes it ideal for mining applications where equipment demands fluctuate significantly.In large HVAC systems for industrial facilities and commercial complexes, the VZ7000 UVZ701E optimizes energy consumption while maintaining precise environmental control. The drive’s advanced energy management features and quiet operation make it suitable for applications where both performance and efficiency are critical. The RELIANCE VZ7000 UVZ701E’s reliability ensures uninterrupted operation in critical environments such as data centers, hospitals, and manufacturing facilities.

Related Products

VZ7000 UVZ702E: Higher power version for larger motor requirementsVZ7000 UVZ703E: Enhanced version with additional featuresVZ3000G Series: Mid-range drives for standard applicationsAutoMate Control System: Integrated control platformSP500 Drive: Alternative drive solutionPowerFlex Series: Complementary drive familyControl Modules: Expansion and accessory modulesCommunication Cards: Protocol expansion options

Installation and Maintenance

Pre-installation preparation: The RELIANCE VZ7000 UVZ701E requires proper mounting in a well-ventilated enclosure with adequate clearance for heat dissipation and maintenance access. Ensure correct power wiring using appropriate cable sizes and proper torque specifications for all connections. Install necessary line reactors and filters based on specific application requirements. Complete comprehensive parameter configuration and system testing before initial startup to ensure optimal performance and reliability.Maintenance recommendations: Regular inspection of power connections, cooling systems, and control wiring ensures long-term reliability of the VZ7000 UVZ701E. Monitor drive temperatures and performance parameters through the integrated diagnostics system. Perform periodic maintenance including cleaning of cooling surfaces, verification of control settings, and firmware updates. The drive’s comprehensive diagnostic capabilities provide early warning of potential issues, enabling proactive maintenance planning and minimizing unexpected downtime.
