Description

The GE WESDAC D20ME is a robust and versatile Remote Terminal Unit (RTU) that serves as a cornerstone of the renowned GE WESDAC distributed SCADA (Supervisory Control and Data Acquisition) system. Designed for deployment in remote, unmanned, and often environmentally challenging locations, the GE WESDAC D20ME acts as an intelligent data concentrator and control executor at the edge of the network. Its primary function is to continuously acquire data from a wide array of field sensors—such as flow, pressure, level, and temperature transmitters—and execute control commands issued from a central master station. The unit is engineered for high reliability and autonomous operation, capable of performing local control logic even when communication with the central site is temporarily lost.As a key component of the WESDAC family, the GE WESDAC D20ME is built to withstand the rigors of industrial and utility applications. It typically features a modular architecture, allowing for customization of I/O (Input/Output) cards to match the specific requirements of the site, whether it’s for analog and digital monitoring or complex control sequences. The value of the GE WESDAC D20ME lies in its ability to provide a reliable window into remote operations, enabling operators to monitor asset health, optimize performance, and respond swiftly to alarms. Its robust communication capabilities support various legacy and modern protocols, ensuring seamless integration into both dedicated and shared network infrastructures. This makes the GE WESDAC D20ME a trusted solution for gathering critical operational intelligence from the field.

Technical Specifications

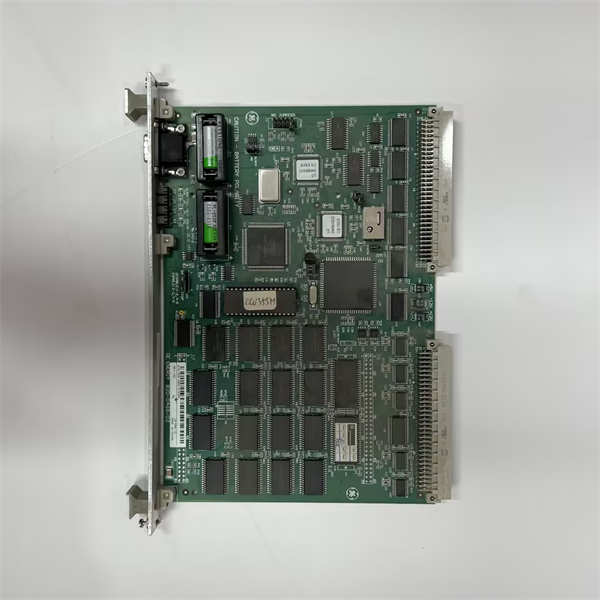

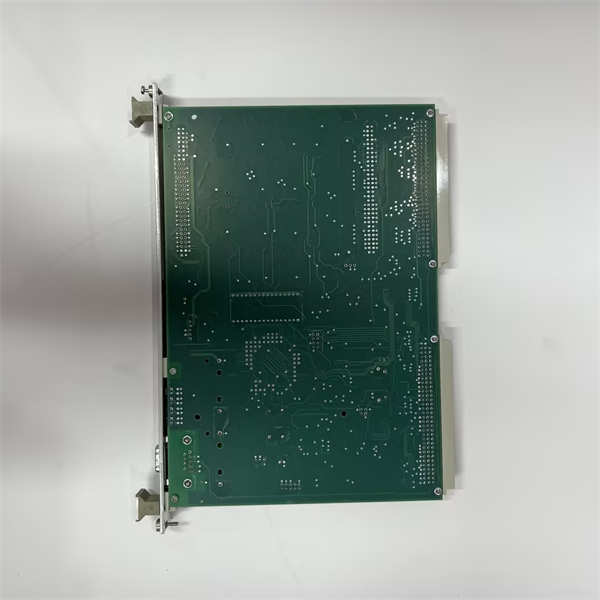

GE WESDAC D20ME RTU

Main Features and Advantages

Ruggedized design for extreme environments: The GE WESDAC D20ME is built to operate reliably in locations with wide temperature fluctuations, high humidity, and significant electromagnetic interference. This rugged construction minimizes downtime and maintenance needs, which is critical for inaccessible sites.Autonomous control and data logging: A significant advantage of the GE WESDAC D20ME is its ability to execute pre-programmed control logic independently. It can buffer historical data and event logs locally, transmitting them to the master station upon request or when communication is restored, ensuring no loss of critical information.Flexible and modular I/O system: The unit typically supports a range of plug-in modules for analog inputs (AI), analog outputs (AO), digital inputs (DI), and digital outputs (DO). This modularity allows engineers to tailor the GE WESDAC D20ME precisely to the application, from simple monitoring to complex control schemes, providing excellent scalability.Versatile communication capabilities: The GE WESDAC D20ME supports multiple communication methods, including dial-up, leased lines, radio, and satellite links. It often uses robust, time-tested protocols like DNP3 or Modbus, ensuring reliable data exchange with the central SCADA master station and compatibility with a wide range of intelligent electronic devices (IEDs) in the field.

Application Field

The GE WESDAC D20ME is predominantly deployed in industries that manage geographically dispersed assets. In the oil and gas sector, it is a workhorse for monitoring and controlling remote wellheads, pipeline compressor stations, and block valve stations, providing essential data on pressure, flow, and equipment status to ensure safe and efficient operation over vast distances.Within the water and wastewater industry, the GE WESDAC D20ME is used to automate pump stations, monitor reservoir levels, and control treatment processes across a distribution network. Its ability to operate autonomously is crucial for managing these critical public infrastructure assets, ensuring continuous service even during communication outages.The unit is also extensively applied in the electrical power industry for substation automation, feeder monitoring, and distributed generation site management. Furthermore, the GE WESDAC D20ME finds use in environmental monitoring systems, such as tracking weather conditions, river levels, and air quality across remote sensing networks. Its robustness and reliability make it the ideal choice for any application where equipment must function unattended for long periods in challenging conditions.

Related Products

• GE WESDAC D20MX: A more advanced or extended version within the D20 series, often with enhanced processing power or communication options.

• GE WESDAC D20RC: A related communication module or a remote controller variant designed for specific network architectures.

• GE WESDAC D20IO: A specific I/O expansion module that can be connected to the D20ME base unit to increase point count.

• GE D400: Another RTU from GE’s portfolio, potentially for different applications or representing a newer generation.

• GE RX3i PACSystem: A modern programmable automation controller (PAC) from GE that can serve as an upgrade path from older RTU-based systems like the WESDAC D20ME.

GE WESDAC D20ME RTU

Installation and Maintenance

Pre-installation preparation: Before installing the GE WESDAC D20ME, a thorough site survey is essential. This includes verifying the availability of a clean and stable power source, ensuring the mounting location is protected from direct weather exposure if not rated for such, and confirming that all necessary communication lines (e.g., telephone, radio antenna cables) are routed to the unit. The configuration software and logic should be prepared and tested offline to minimize commissioning time on site.Maintenance recommendations: Regular maintenance for the GE WESDAC D20ME focuses on preventative checks. This includes visual inspections for signs of corrosion or loose connections, verifying the integrity of the battery backup unit, and checking the status of communication link indicators. It is crucial to keep the unit’s firmware and configuration backups in a secure location. Periodically cycling power to the unit (during a planned maintenance window) can help clear latent faults. Always refer to the official GE hardware manual for specific maintenance procedures and safety warnings.
