Description

The GE F650 F650BFBF2G0HIE is a advanced digital feeder protection relay belonging to GE’s Multilin F650 series, a renowned family of protection devices designed for maximum reliability and flexibility in electrical power systems. This specific model, identified by the suffix F650BFBF2G0HIE, represents a particular configuration that includes a comprehensive set of protection functions, communication options, and I/O modules tailored for specific application requirements. The core mission of the GE F650 F650BFBF2G0HIE is to safeguard electrical feeders, transformers, and other critical assets in utility substations, industrial plants, and renewable energy facilities against abnormal conditions such as overcurrent, short circuits, earth faults, and overfrequency/underfrequency events.As a key component in modern electrical protection and control schemes, the GE F650 F650BFBF2G0HIE goes beyond basic protection. It integrates sophisticated measurement capabilities for monitoring voltage, current, power, and energy, providing valuable data for system management. Its programmatic logic allows for custom control sequences, automating operations like breaker control and interlocking. The device features a robust communication stack supporting multiple protocols like IEC 61850, Modbus, and DNP3, enabling seamless integration into SCADA and plant control systems. The value of the GE F650 F650BFBF2G0HIE lies in its ability to consolidate several functions into a single, compact unit, reducing panel space, simplifying wiring, and providing a comprehensive view of the protected circuit’s health, thereby minimizing downtime and improving operational efficiency.

Technical Specifications

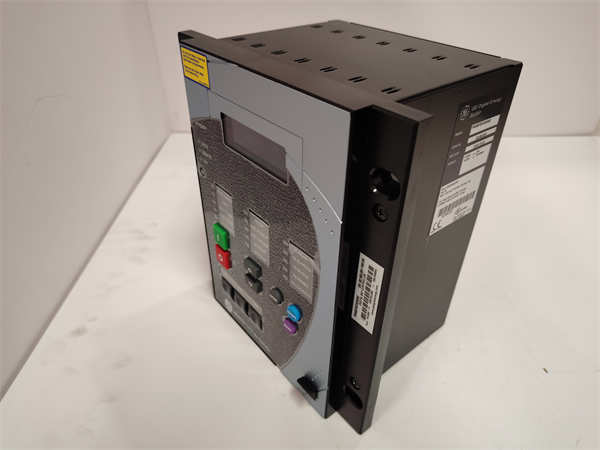

GE F650BFBF2G0HIE

Main Features and Advantages

Comprehensive Protection Suite: The GE F650 F650BFBF2G0HIE is equipped with a wide array of protection functions that can be individually enabled and customized. This includes definitive time, inverse time, and instantaneous overcurrent protection for both phase and ground faults. It also features voltage and frequency protection elements, making it a truly multi-functional device. This comprehensiveness eliminates the need for multiple discrete relays, simplifying system design and reducing overall cost.Advanced Communication and Integration: A standout feature of the GE F650 F650BFBF2G0HIE is its support for modern communication protocols, particularly IEC 61850. This standard allows for seamless integration into digital substations, enabling high-speed GOOSE messaging for inter-relay communication and seamless data modeling for superior interoperability. The dual Ethernet ports and support for protocols like DNP3 and Modbus ensure it can connect to virtually any SCADA or control system, providing real-time data and remote control capabilities.User-Friendly Interface and Diagnostics: The relay is equipped with a large, backlit LCD display and an intuitive keypad or HMI for local interaction. This allows engineers to easily view real-time measurements, monitor status, and access detailed fault records and oscillographic waveforms (disturbance records) for rapid post-event analysis. This powerful diagnostic capability is crucial for identifying the root cause of faults and reducing mean time to repair (MTTR). The flexibility of the GE F650 F650BFBF2G0HIE is further enhanced by its programmable logic, which allows users to create custom control schemes without additional hardware.

Application Field

The GE F650 F650BFBF2G0HIE is predominantly deployed in medium voltage electrical distribution networks. In utility applications, it is used for the protection of distribution feeders emanating from substations, ensuring the selective isolation of faults to maintain the stability of the wider grid. It is equally critical in industrial power systems, such as those in large manufacturing plants, oil and gas facilities, and mining operations, where it protects incoming lines, bus couplers, and large motors, ensuring production continuity.A key application area for the GE F650 F650BFBF2G0HIE is in renewable energy plants, particularly solar farms and wind parks. Here, it protects the collection feeders that aggregate power from multiple inverters or turbines and the point of interconnection to the main grid. Its frequency and voltage protection functions are essential for maintaining grid code compliance. Furthermore, the relay is ideal for critical infrastructure like airports, data centers, and hospitals, where its high reliability and comprehensive protection ensure the continuity of essential power. The programmability and communication strengths of the GE F650 F650BFBF2G0HIE make it perfectly suited for these complex applications where integration with a central power management system is mandatory.

GE F650BFBF2G0HIE

Related Products

• GE F650 F650BBBB2H1HIE: A common variant of the F650 with a different mix of I/O and communication options.

• GE F650 F650ANNN2G1HIE: Another standard configuration, often with a different default protection set.

• GE F60 Feeder Management Relay: A more economical feeder protection relay from the GE Multilin series for less complex applications.

• GE 869 Motor Protection Relay: A specialized relay for motor protection, whereas the F650 is more focused on feeder and general purpose protection.

• GE C30 Capacitor Bank Protection Relay: A relay designed specifically for capacitor bank protection, complementing the F650 in a substation.

• GE B90 Differential Relay: A current differential relay for transformer and busbar protection, used alongside the F650 for complete system protection.

• GE UR Family (URD, URC, etc.): More advanced and newer tiers of GE protection relays, offering enhanced features and performance.

Installation and Maintenance

Pre-installation preparation: Before installing the GE F650 F650BFBF2G0HIE, ensure that all power sources (AC/DC control voltage and primary CT/VT circuits) are safely isolated and verified de-energized. Carefully review the specific wiring diagrams and configuration files for this model suffix. Confirm the ratings of the current and voltage transformers connected to the relay to ensure they are within the acceptable range and that the wiring is correct to prevent damage. Proper grounding of the relay is essential for safety and noise immunity.Maintenance recommendations: Regular maintenance for the GE F650 F650BFBF2G0HIE involves periodic visual inspections for any signs of physical damage or abnormal heating. Utilize the relay’s front interface or communication software to monitor its self-diagnostic alerts and review event logs for any recorded warnings or anomalies. It is good practice to periodically verify the accuracy of the relay’s measurements against standard test equipment. Functional tests of the protection and control logic should be conducted during planned outages using a secondary injection test set to ensure the GE F650 F650BFBF2G0HIE will operate as intended during a real fault. Always back up the relay’s configuration settings before performing any maintenance.
