Description

The GE WES5120 2340-21006 is a sophisticated network interface module specifically designed for the GE WESDAC D20 Remote Terminal Unit (RTU) platform. This module serves as a critical communication gateway, providing high-speed Ethernet connectivity capabilities to the D20 system. The primary function of the GE WES5120 2340-21006 is to enable the D20 RTU to communicate over standard TCP/IP networks, facilitating efficient data exchange with SCADA master stations, other RTUs, and enterprise-level systems. It acts as a protocol translator and network interface, allowing the D20 system to utilize modern networking infrastructure while maintaining compatibility with legacy communication protocols.As an integral component of the ruggedized D20 series, the GE WES5120 2340-21006 is engineered to meet the demanding requirements of industrial and utility applications. This module typically interfaces with the D20 backplane, working in conjunction with the main processor modules (such as the EME) to provide seamless network connectivity. The GE WES5120 2340-21006 is particularly valuable in modern SCADA systems where Ethernet-based communication has become the standard, offering higher bandwidth, faster data refresh rates, and improved interoperability compared to traditional serial communications. Its implementation enhances the D20 system’s ability to participate in complex network architectures, including redundant ring configurations and wide-area networks (WANs), making the GE WES5120 2340-21006 a crucial component for system modernization and integration projects.

GE WES5120 2340-21006

Technical Specifications

Main Features and Advantages

Advanced network connectivity: The GE WES5120 2340-21006 provides robust Ethernet connectivity, enabling the D20 RTU to leverage modern network infrastructure. This includes support for standard Ethernet protocols (TCP/IP) and industrial communication protocols such as DNP3 over TCP/IP and Modbus TCP. This capability allows for higher data throughput, reduced latency, and more efficient use of network bandwidth compared to traditional serial communications, significantly enhancing system performance.Enhanced system integration: A key advantage of the GE WES5120 2340-21006 is its ability to facilitate seamless integration between the D20 RTU and various systems within the operational technology (OT) and information technology (IT) environments. It enables the D20 to communicate directly with SCADA masters, other intelligent electronic devices (IEDs), and even enterprise-level systems using standard Ethernet protocols, breaking down communication barriers and enabling better data accessibility across the organization.Robust and secure communication: The GE WES5120 2340-21006 is designed with industrial cybersecurity considerations, featuring capabilities that help protect the critical infrastructure it serves. While specific security features vary, modules like this typically include configurable communication parameters, authentication mechanisms, and the ability to work within segmented network architectures. Its rugged design ensures reliable operation in electrically noisy industrial environments, maintaining communication integrity under challenging conditions.

Application Field

The GE WES5120 2340-21006 finds extensive application in industries requiring reliable Ethernet-based communication for SCADA systems. In electrical utility networks, it is deployed in substation automation systems, enabling D20 RTUs to communicate with control centers using modern protocols like DNP3 over IP or IEC 60870-5-104, supporting smart grid initiatives and improving grid monitoring capabilities.In the oil and gas sector, the GE WES5120 2340-21006 is crucial for pipeline SCADA (PSCADA) systems, where it facilitates high-speed data transfer between remote sites (pump stations, valve sites) and central control rooms over wide-area networks (WANs). This enables real-time monitoring and control of pipeline operations, enhancing safety and efficiency. The module is equally important in water and wastewater management systems, where it connects treatment plants, pump stations, and reservoir monitoring points to central SCADA systems, improving operational visibility and response times. The GE WES5120 2340-21006 is particularly valuable in modernization projects where legacy communication systems are being upgraded to Ethernet-based networks while preserving investments in existing D20 RTU infrastructure.

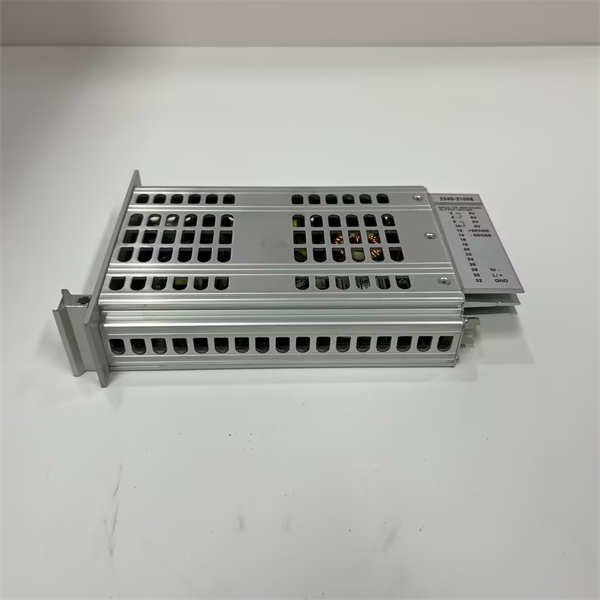

GE WES5120 2340-21006

Related Products

• GE WES5120 2340-21005: A potential variant of the WES5120 module with different firmware or feature sets.

• GE D20 EME 2400-21004: The Enhanced Master and Ethernet processor module that the WES5120 typically complements or works alongside.

• GE D20 DCE: Data Concentration Engine module that may work in conjunction with the WES5120 for data management.

• GE D20 I/O Modules: Various analog and digital I/O modules that connect to the D20 system and whose data is communicated via the WES5120.

• GE D20MX: A more advanced controller platform that may represent an evolution beyond the WES5120-based systems.

• GE D400 RTU: Another RTU platform from GE that might offer integrated Ethernet capabilities as a standalone unit.

Installation and Maintenance

Pre-installation preparation: Before installing the GE WES5120 2340-21006, ensure all power to the D20 chassis is disconnected. Verify compatibility with the existing D20 system configuration, including backplane revision and processor module compatibility. Have the necessary network configuration parameters ready, including IP address, subnet mask, gateway settings, and protocol configuration details. Ensure that the host SCADA system is prepared to communicate with the new module, with appropriate drivers and database points configured.Maintenance recommendations: Regular maintenance for the GE WES5120 2340-21006 involves monitoring network connectivity and performance through the SCADA system diagnostics. Periodically verify that the module’s IP configuration remains correct and that communication statistics indicate healthy operation. Keep the firmware updated according to GE’s recommendations, following proper procedures to minimize disruption. Maintain documentation of the network configuration and ensure that cybersecurity measures (such as firewall rules and access controls) surrounding the GE WES5120 2340-21006 are regularly reviewed and updated as part of the overall network security policy.
