Description

The GE IS210MACCH1AKH is a vital Multi-Channel Analog Control Module integral to the renowned Mark VI turbine control system from General Electric. This sophisticated I/O pack serves as a crucial interface between the turbine controller and the analog world, specializing in the acquisition and output of analog signals essential for precise process control. The core function of the IS210MACCH1AKH is to accurately read inputs from a variety of analog field devices—such as pressure transmitters, temperature sensors (RTDs, thermocouples), and LVDTs—and to generate precise analog output commands to control actuators, valves, and other final control elements. As a dedicated component within the Mark VI Speedtronic platform, this module is strategically positioned to ensure the highest levels of accuracy and reliability in monitoring and controlling critical parameters that govern the operation of gas and steam turbines.The significance of the GE IS210MACCH1AKH within the automation architecture cannot be overstated. It provides the essential data conversion and signal conditioning needed for the system’s central processor to execute complex control algorithms for speed regulation, temperature control, and sequencing. By offering high-density, isolated input and output channels, it minimizes the need for external signal conditioning equipment, thereby streamlining the system architecture and bolstering overall reliability. The module is engineered with robust protection to operate flawlessly in the electrically challenging environments of power generation plants, ensuring signal integrity is maintained. The integration of the IS210MACCH1AKH is therefore fundamental for achieving optimal turbine performance, enhancing operational efficiency, and ensuring long-term equipment protection.

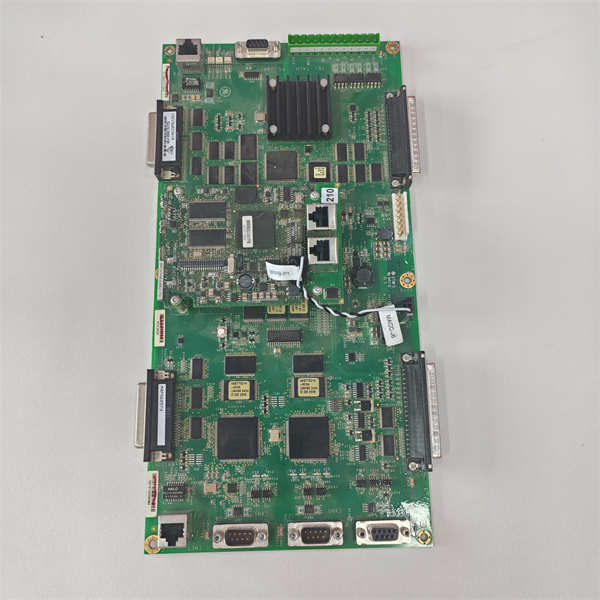

GE IS210MACCH1AKH

Technical Specifications

Main Features and Advantages

The GE IS210MACCH1AKH stands out due to its high-precision signal handling and robust design. It employs high-quality components and advanced conversion technology to ensure minimal error in both signal acquisition and generation, which is directly critical for the precise control of turbine parameters. A key feature is its comprehensive channel-to-channel isolation, which effectively prevents ground loops and suppresses electromagnetic interference (EMI), guaranteeing that the data exchanged between the controller and field devices is accurate and reliable even in high-noise environments. This design makes the IS210MACCH1AKH exceptionally robust for critical power generation applications.Configuration flexibility and advanced diagnostics are significant advantages of this module. The GE IS210MACCH1AKH can be easily configured using GE’s proprietary ToolboxST software, allowing engineers to define parameters for each channel, such as input/output type, range, scaling, and alarm thresholds. The module features extensive diagnostic capabilities that continuously monitor its own health, as well as the status of connected field devices, providing early warnings for issues like wire breaks, signal loss, or out-of-range values. This proactive monitoring supports predictive maintenance strategies, helping to avoid unplanned downtime. Furthermore, the hot-swappable design of the I/O packs within the Mark VI system allows for the IS210MACCH1AKH to be replaced without shutting down the entire turbine control system, a vital feature for maximizing asset availability.

Application Field

The primary application of the GE IS210MACCH1AKH is in the power generation sector, where it is a fundamental component within GE’s Mark VI control system for gas turbines and steam turbines. In these critical applications, the module is responsible for interfacing with a vast array of sensors and actuators. It reads crucial parameters such as fuel gas pressure, exhaust temperature, blade path temperature, and valve positions, and outputs control signals to govern fuel valves, inlet guide vanes, and other actuators. The reliable performance of the IS210MACCH1AKH is essential for safe startup, efficient load operation, and controlled shutdown of turbines.Beyond large-scale power generation, the GE IS210MACCH1AKH is also employed in other industrial sectors that utilize turbine-driven equipment or require high-reliability analog control. This includes mechanical drive applications in oil and gas pipelines for compressors, in marine propulsion systems, and in large compressor stations. In all these scenarios, the module solves the critical problem of providing a reliable, accurate, and isolated interface between a high-speed digital control system and the analog field devices. Its robustness and precision make it suitable for harsh environments where equipment must perform continuously and reliably, thereby ensuring operational safety, efficiency, and the protection of valuable capital assets.

Related Products

• IS200MACCH1AAA: A similar analog control module from the Mark VI series, potentially with variations in channel count or firmware.

• IS215ACLEH1AY: An analog control module from the newer Mark VIe series, representing the evolution of the platform.

• IS200AEPAH1AHD: An analog input pack, which handles input signals whereas the IS210MACCH1AKH handles both input and output.

• IS200DSPXH1DBC: A Digital Signal Processor board that executes control logic based on inputs from modules like the IS210MACCH1AKH.

• IS200TBAIH1CCH: A Terminal Board Assembly that provides the physical screw terminals for field wiring connection to the IS210MACCH1AKH module.

• IS210AEDBH1ABA: An analog input module with different signal handling capabilities, offering an alternative for specific application needs.

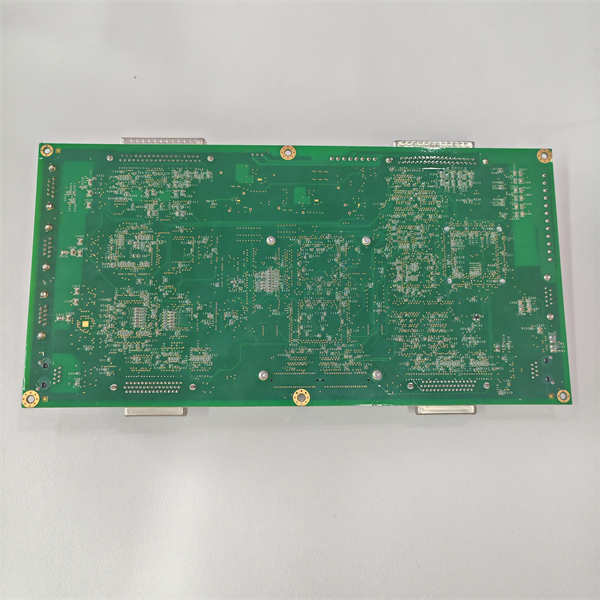

GE IS210MACCH1AKH

Installation and Maintenance

Pre-installation preparation: Prior to installing the GE IS210MACCH1AKH, it is imperative to ensure that the Mark VI rack is completely powered down and that proper lockout/tagout (LOTO) procedures are rigorously followed. Verify the compatibility of the designated slot in the rack. It is essential to have the correct system configuration file and wiring diagrams readily available. Confirming that the firmware version of the IS210MACCH1AKH is compatible with the overall Mark VI system software is a critical step to prevent operational issues. A visual inspection of the module for any signs of physical or connector damage should be conducted before insertion.Maintenance recommendations: The GE IS210MACCH1AKH requires minimal physical maintenance, but its status should be regularly monitored through the system’s diagnostic software interface. Periodically check for any alerts related to module health, communication errors, or channel faults. Ensuring the operating environment (temperature, humidity, cleanliness) remains within specified limits is crucial for long-term reliability. When handling the module, strict electrostatic discharge (ESD) precautions must be observed to prevent damage to sensitive electronic components. For critical turbine applications, maintaining a certified spare IS210MACCH1AKH module on site is a recommended best practice to drastically reduce recovery time in the unlikely event of a failure.
