The GE VMIVME-5565-010000 (also referenced under part number 332-015595-010000 P) is a high-performance reflective memory node module designed for the VMEbus architecture. This module is a critical component for building deterministic, low-latency, real-time data sharing networks across multiple computing systems. Its core function is to maintain a contiguous block of memory that is automatically mirrored across all nodes in a reflective memory network via high-speed fiber optic connections. When data is written to the local memory of one VMIVME-5565-010000 module, it is instantly and transparently transmitted to the same memory address on every other module in the network, ensuring all systems have a perfectly synchronized, coherent view of shared data. This technology is essential for applications where traditional network protocols like Ethernet introduce unacceptable and non-deterministic latency.As part of GE’s esteemed VME product line, the VMIVME-5565-010000 is engineered for the most demanding industrial, military, and aerospace environments. It solves the complex challenge of data synchronization in distributed systems, such as real-time simulation, industrial automation, and data acquisition systems. The value of the GE VMIVME-5565-010000 lies in its ability to eliminate data bottlenecks and ensure temporal consistency across separate processors or systems, which is paramount for system integrity and performance. By providing a simple, hardware-based data sharing mechanism, it offloads the communication burden from the host processors, allowing them to focus on core computational tasks. The robust construction and use of fiber optics make the VMIVME-5565-010000 immune to electromagnetic interference, ensuring reliable data integrity over long distances.

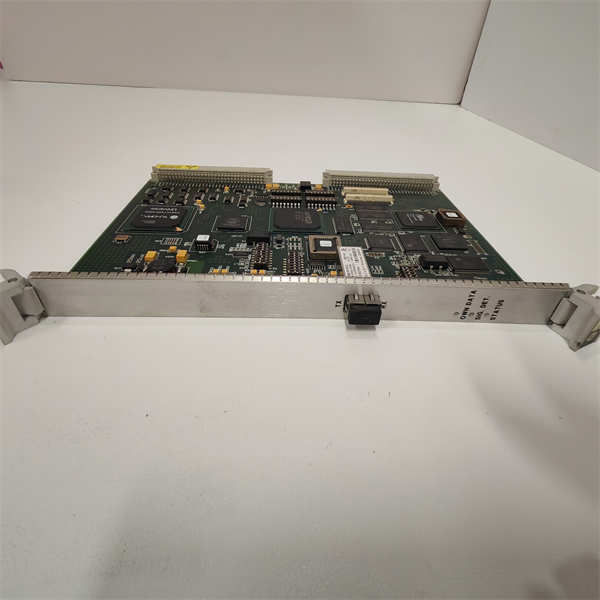

GE VMIVME-5565-010000
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | VMIVME-5565-010000 / 332-015595-010000 P |
| Manufacturer | General Electric (GE) |
| Product Type | Reflective Memory / Real-Time Network Interface Module |
| Host Bus Interface | VME64x (VMEbus) |
| Network Interface | Dual, independent fiber optic ports (ST type) |
| Data Rate | Up to 170 Mbytes/sec sustained data transfer |
| Memory Size | 256 Mbytes of SDRAM (local and network image) |
| Latency | Extremely low, deterministic latency (sub-microsecond) |
| Data Width | 64-bit data transfer on VMEbus |
| Network Topology | Ring, Star, or Point-to-Point (via external hubs) |
| Network Nodes | Supports up to 256 nodes on a single network |
| Operating Temperature | 0°C to +55°C (Commercial) / -40°C to +70°C (Extended) |
| Power Requirements | +5V @ 3.5A (typical) |
Main Features and Advantages
The primary advantage of the GE VMIVME-5565-010000 is its deterministic, hardware-based data transmission. Unlike software-based networking protocols that suffer from variable latency due to operating system scheduling and protocol overhead, the reflective memory operation occurs in hardware. This guarantees a consistent, ultra-low latency that is critical for real-time control and synchronization applications. The module’s dual, redundant fiber optic ports enable the creation of fault-tolerant ring topologies; if a fiber break occurs, the network can self-heal, maintaining communication with all remaining nodes and ensuring system resilience.Ease of integration and programming is another significant benefit. The GE VMIVME-5565-010000 appears to the host system as a standard block of memory in its address space. Software developers can simply write data to this memory map using standard memory write operations, and the complex task of network transmission is handled transparently by the module’s firmware. This eliminates the need for complex socket programming or driver development, drastically reducing integration time and cost. The module also features robust diagnostic capabilities, including LED status indicators for power, network activity, and errors, facilitating quick troubleshooting. The combination of high speed, deterministic performance, and simple programming model makes the VMIVME-5565-010000 an unparalleled solution for demanding data-sharing challenges.
Application Field
The GE VMIVME-5565-010000 is predominantly used in high-end industrial and military applications where deterministic data sharing is non-negotiable. A primary application is in real-time simulator systems, such as flight simulators or power grid simulators, where multiple computers must precisely synchronize their simulation models (e.g., aerodynamics, engine dynamics, control systems) without any lag or jitter. The VMIVME-5565-010000 ensures that all subsystems have an identical, time-coherent view of the simulated environment. Similarly, in industrial automation, it is used to tightly synchronize motion control across multiple axes in complex machinery, such as printing presses, packaging lines, or robotic workcells, where even microsecond-level timing errors can lead to product defects or machine failure.In the defense and aerospace sector, the GE VMIVME-5565-010000 is found in mission-critical systems like radar signal processing, sonar arrays, and flight test data acquisition. It allows for the consolidation of sensor data from multiple sources into a single, coherent picture for display and analysis. In scientific research, it facilitates high-speed data sharing between instruments and computers in particle accelerators and astronomical observatories. The module effectively solves the problem of data coherence in distributed systems, enabling architects to design systems with multiple, less expensive processors working in perfect harmony, rather than relying on a single, prohibitively expensive supercomputer. This makes the VMIVME-5565-010000 a key enabler for scalable, high-performance computing architectures.

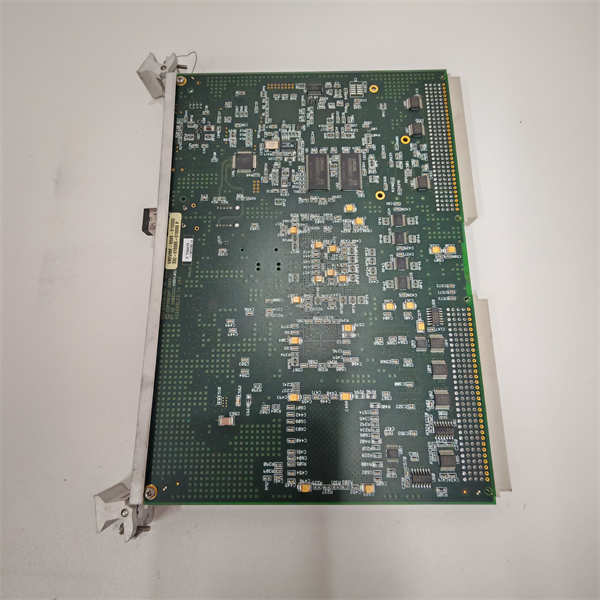

GE VMIVME-5565-010000
Related Products
VMIVME-5576: A later-generation reflective memory module from GE, often offering higher speeds (e.g., 2.12 Gbaud) and larger memory capacity.
VMIVME-5565PIORC-100000: A variant of the 5565 series, potentially with different firmware or specific configuration options.
VMIVME-5555: An earlier model in the reflective memory product family, with potentially lower performance specifications.
VMIPMC-5565: The PCI Mezzanine Card (PMC) version of the reflective memory module, which can be used on carrier boards in other bus formats.
VMIVME-7596: A VMEbus single-board computer that can be used as a host system for the VMIVME-5565-010000 reflective memory node.
HUB-1000: A reflective memory hub used to create star topologies, connecting multiple VMIVME-5565-010000 modules.
Installation and Maintenance
Pre-installation preparation: Before handling the GE VMIVME-5565-010000, ensure proper electrostatic discharge (ESD) precautions are in place by using a grounded wrist strap. Power down the VMEbus chassis completely and disconnect it from the mains supply. Verify that the chosen slot in the VME crate is compatible and meets the module’s power requirements. Plan the fiber optic network topology and have the appropriate ST-type fiber optic cables and, if needed, a reflective memory hub ready. Inspect the fiber connectors and the module’s edge connector for any signs of contamination or damage before installation.Maintenance recommendations: The GE VMIVME-5565-010000 requires minimal physical maintenance. The primary tasks involve periodic visual inspections to ensure fiber optic connections are secure and undamaged. Monitor the module’s status LEDs (Power, Link, Activity) during operation as a first-level diagnostic. Keep the operating environment within the specified temperature and humidity ranges to ensure long-term reliability. Avoid bending the fiber optic cables beyond their minimum bend radius. Software should periodically check the health and status registers of the module. It is advisable to keep a configuration backup and a spare VMIVME-5565-010000 module on hand for critical systems to facilitate rapid replacement and minimize downtime.
