Description

The HIMA F8650X is a high-performance, fault-safe digital output (DO) module integral to the HIMA Plannar safety instrumented system (SIS). It functions as the critical final execution element, converting the safety logic’s electronic commands into controlled power signals to activate or deactivate safety-critical field devices. Unlike electromechanical relays, the HIMA F8650X utilizes solid-state transistor technology, providing exceptionally fast switching speeds, silent operation, and virtually infinite service life under normal operating conditions, making it ideal for applications requiring frequent or rapid safety interventions. This module is engineered to meet the rigorous demands of Safety Integrity Level (SIL) 3 as per IEC 61508, ensuring it provides the highest level of operational integrity in protecting people, assets, and the environment.

Designed for seamless integration within the modular HIMA Plannar platform, the HIMA F8650X offers advanced diagnostic capabilities that continuously monitor the health of the module itself and its output circuits. This allows for the immediate detection of faults such as short circuits, open circuits, or internal component failures, enabling proactive maintenance and ensuring the system’s availability and reliability. The robust construction of the HIMA F8650X guarantees stable performance across a wide temperature range and in the presence of significant electromagnetic interference, which is commonplace in industrial settings like oil and gas platforms and chemical plants. By selecting the genuine HIMA F8650X, engineers are incorporating a certified, intelligent, and highly reliable component that forms the dependable muscle of any modern safety loop.

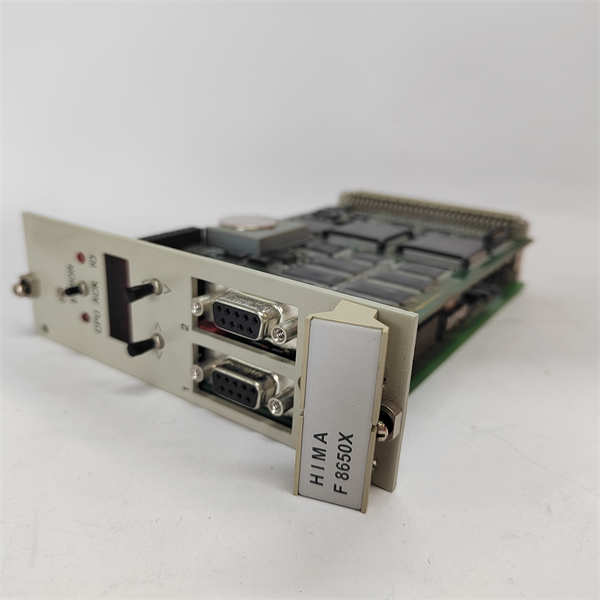

HIMA F8650X

Technical Specifications

Main Features and Advantages

The HIMA F8650X delivers a host of features that make it a superior choice for critical safety outputs. Its solid-state design is a key advantage, eliminating the mechanical wear, contact bouncing, and slow response times associated with traditional relays. This translates to millions of reliable, maintenance-free switching cycles, which is crucial for applications involving frequent testing or process modulation. The module’s high switching speed allows for very fast de-energization of field devices, minimizing the process safety time and bringing the plant to a safe state more rapidly in an emergency scenario.

Comprehensive Diagnostics and Safety: A cornerstone of the HIMA F8650X is its sophisticated internal diagnostics. Each output channel is meticulously monitored for critical faults. In the event of a diagnosed failure, such as a short circuit to ground or supply voltage, the module immediately reports the fault to the central safety controller and forces its outputs to the predefined safe state (de-energized). This fault-safe behavior is fundamental to the design and is a non-negotiable requirement for any SIL 3 rated component. The diagnostic data provided by the HIMA F8650X is invaluable for predictive maintenance, reducing system downtime and ensuring the safety system’s integrity is never compromised.

Robustness and Seamless Integration: Built to withstand harsh industrial environments, the HIMA F8650X operates reliably in wide temperature ranges and is highly resistant to shock and vibration. Its plug-and-play design ensures effortless integration into the HIMA Plannar rack, automatically configuring itself and communicating with the central processing unit. This simplifies engineering, reduces commissioning time, and eliminates configuration errors. The proven performance and certification of the HIMA F8650X provide engineers with the confidence that their final element control is in the most capable hands.

Application Field

The HIMA F8650X is deployed across a wide spectrum of industries where safety and high availability are paramount. In the Oil & Gas sector, it is a preferred choice for Emergency Shutdown (ESD) systems and Fire & Gas (F&G) systems, where it controls solenoid valves for emergency isolation, activates fire dampers, or starts deluge systems. Its solid-state reliability is essential for these critical functions on offshore platforms and in refineries.

Within the Power Generation industry, the HIMA F8650X is used in turbine protection systems to swiftly shut off fuel supplies or activate auxiliary cooling systems. Its fast response time is critical for preventing catastrophic turbine damage. In Chemical and Petrochemical plants, the module finds application in Burner Management Systems (BMS) and process shutdown systems, where it controls igniters, shut-off valves, and other critical actuators. The high reliability and diagnostic capabilities of the HIMA F8650X also make it suitable for safety systems in pharmaceutical manufacturing, automotive production lines, and other automated processes where a failure could lead to significant economic loss or safety hazards. Its design is tailored for these high-demand scenarios, making the HIMA F8650X the digital output module of choice for engineers who value speed, reliability, and comprehensive diagnostics.

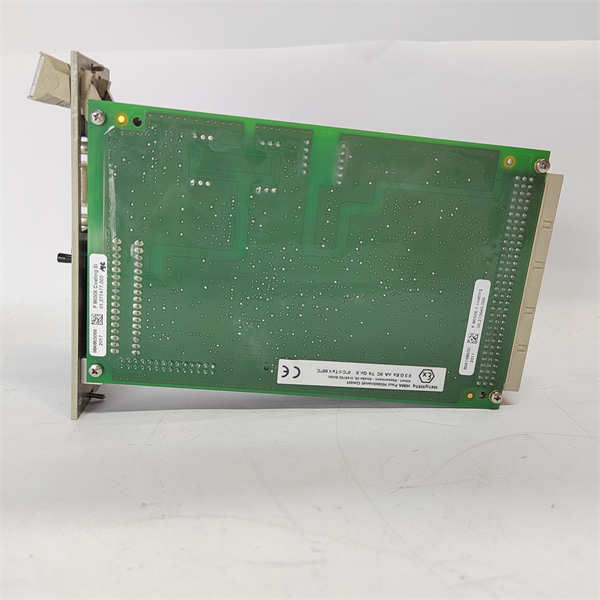

HIMA F8650X

Related Products

HIMA F8650E: A variant within the F8650 series, potentially with different specifications such as current rating or number of channels.

HIMA F8621A: A relay output module, providing an alternative electromechanical solution for applications requiring high current capacity or galvanic isolation.

HIMA F8651A: A digital input module designed to receive signals from safety sensors, forming the input pair for the F8650X output module in a complete safety loop.

HIMA F8652A: An analog input module for interfacing with 4-20mA transmitters, complementing the digital nature of the F8650X.

HIMA F35 / F3300: The central processing units of the Plannar system, which execute the safety logic and command the F8650X module.

HIMA F8657X: A different digital or analog output module in the same family, perhaps with HART capability or different channel configuration.

HIMA F8656X: Another related I/O module, potentially a digital input with testing capabilities, often used in conjunction with outputs.

HIMA Baseplate: The essential backplane required for mounting and connecting the F8650X module to the Plannar system.
