Description

The Autoliv Sim.Mod. B0760 627913600B is a highly specialized simulator module engineered by Autoliv, a global leader in automotive safety systems. This critical tool is designed specifically for the development, production, validation, and service diagnostics of vehicle passive safety systems, particularly Airbag Control Units (ACUs) and related restraint systems. The core function of the Autoliv Sim.Mod. B0760 627913600B is to emulate the various sensors (such as impact and crash sensors) and loads (like squibs for airbags and seatbelt pretensioners) that are connected to a real-world ACU. By providing a simulated yet realistic vehicle environment, it allows engineers and technicians to safely and comprehensively test the logic, functionality, and diagnostic capabilities of the safety ECU without deploying physical pyrotechnic components.

As an integral part of Autoliv’s testing and validation ecosystem, this simulator module plays a vital role in ensuring the utmost reliability of life-saving automotive systems. It is used extensively on production lines for end-of-line testing of ECUs, in R&D labs for verifying software and hardware iterations, and in service centers for accurate fault diagnosis and system verification. The Autoliv Sim.Mod. B0760 627913600B provides a controlled and repeatable testing interface, enabling users to inject fault conditions, simulate crash signals, and verify the ECU’s correct response. This process is indispensable for validating that every safety control unit meets the stringent performance and quality standards required in the automotive industry, ultimately contributing to the protection of vehicle occupants.

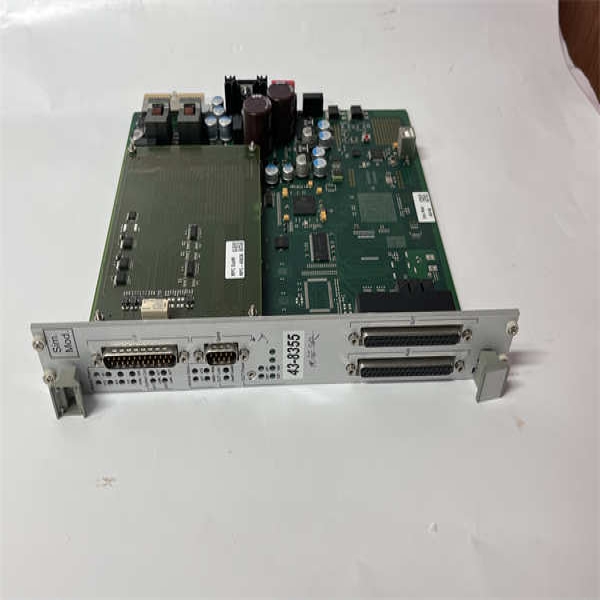

Autoliv Sim.Mod. B0760 627913600B

Technical Specifications

Main Features and Advantages

The Autoliv Sim.Mod. B0760 627913600B offers a suite of features centered on safety, precision, and efficiency. Its foremost advantage is the ability to enable comprehensive testing of safety ECUs in a completely safe manner. By emulating squibs and sensors, it eliminates the risks associated with accidental deployment during testing and development, protecting both personnel and equipment. The module is designed for high precision, providing accurate electrical simulation of loads and signals to ensure the ECU under test receives realistic inputs, which leads to reliable and trustworthy test outcomes.

Efficiency and integration are key strengths of the Autoliv Sim.Mod. B0760 627913600B. It significantly speeds up testing and diagnostic cycles on production lines and in service workshops. Technicians can quickly verify the functionality of an ACU or pinpoint faults by using the simulator to isolate issues to either the control unit itself or the external vehicle wiring and sensors. The module is engineered for seamless integration with Autoliv’s specific ACU architectures and diagnostic procedures, ensuring compatibility and reliability. Its robust design, suited for a workshop or lab environment, guarantees longevity and stable performance even with frequent use. The Autoliv Sim.Mod. B0760 627913600B is an indispensable tool for achieving the zero-defect quality target mandatory for automotive safety systems.

Application Field

The application of the Autoliv Sim.Mod. B0760 627913600B is primarily concentrated in the automotive sector, specifically within the lifecycle of vehicle safety systems. In manufacturing and production facilities, it is a critical tool for End-of-Line (EOL) testing. Here, every newly produced Airbag Control Unit is connected to the Autoliv Sim.Mod. B0760 627913600B to undergo a functional test that verifies its ability to correctly interpret sensor signals and command the deployment circuits, ensuring only fully functional units are installed in vehicles.

In Research and Development laboratories, the Autoliv Sim.Mod. B0760 627913600B is used extensively for design validation and firmware testing. Engineers use it to simulate a vast array of normal and fault scenarios, from simple sensor signals to complex crash pulses, to verify the software algorithms and hardware responses of the ECU prototypes. Furthermore, in after-sales service and repair centers, this simulator is a powerful diagnostic tool. When a vehicle presents a fault code related to the supplemental restraint system (SRS), a technician can connect the Autoliv Sim.Mod. B0760 627913600B to the vehicle’s ACU. By bypassing the vehicle’s own wiring and sensors, the module helps determine whether the fault lies within the ACU itself or in the peripheral components, enabling faster and more accurate repairs.

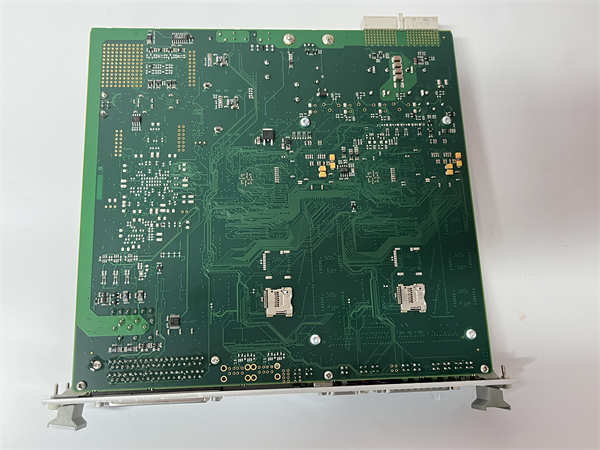

Autoliv Sim.Mod. B0760 627913600B

Related Products

Autoliv Sim.Mod. B0761 (and other variants): Other simulator modules in the same family, likely designed for different ECU models or with expanded simulation capabilities.

Autoliv ACU (Various Models): The actual Airbag Control Units that the Sim.Mod. B0760 627913600B is designed to test, such as specific models for various car manufacturers.

Autoliv Diagnostic Software: Specialized software packages that run on a PC or diagnostic tool, which communicate with the ACU via the Sim.Mod. B0760 627913600B to automate tests and read fault codes.

Autoliv SRS Wiring Harness Simulator: Tools that simulate the vehicle’s complete wiring harness for the SRS to test for wiring faults in conjunction with the ECU simulator.

Autoliv Crash Sensor Simulators: Dedicated tools for simulating specific types of crash sensors.

Generic OBD-II Diagnostic Tools: While not specific, they represent the broader category of diagnostic equipment, whereas the Autoliv Sim.Mod. B0760 627913600B is a highly specialized subset for SRS.
