Description

The WOODWARD 5466-318 is a high-performance, standalone governor control module belonging to Woodward’s renowned SPM-D (Single Point MoDal) family. It serves as a dedicated digital controller designed for precise speed, frequency, and load control of various prime movers, including industrial gas turbines, steam turbines, and diesel engines. As a core component in an automation system, the WOODWARD 5466-318 takes in critical process signals such as speed and load, executes sophisticated control algorithms, and outputs precise commands to actuator drives or fuel valves, ensuring the prime mover operates at the optimal setpoint with exceptional stability and dynamic response. Its standalone nature makes it a versatile and cost-effective solution for both new installations and modernization projects, providing a robust control foundation without the complexity of a full-scale DCS. The integration of the WOODWARD 5466-318 into a control loop significantly enhances operational efficiency, protects equipment from overspeed conditions, and ensures seamless synchronization with the power grid.

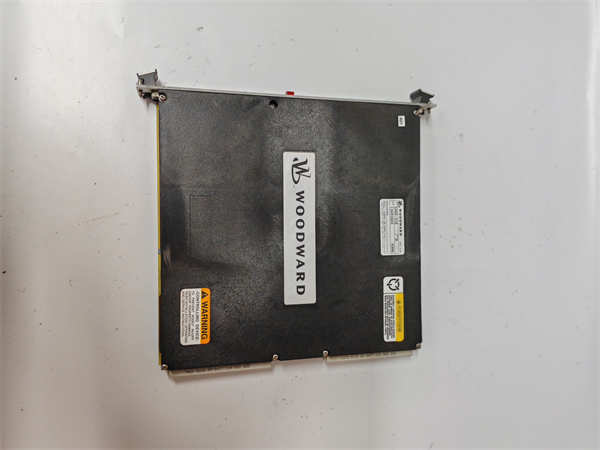

WOODWARD 5466-318

Technical Specifications

Main Features and Advantages

The WOODWARD 5466-318 excels with its robust feature set tailored for demanding control applications. Its core advantage lies in its standalone programmability, allowing engineers to customize control parameters and logic to perfectly match the specific characteristics of the prime mover, delivering superior performance compared to fixed-function controllers. This module boasts exceptional reliability and stability, engineered to perform flawlessly in harsh industrial environments with wide temperature ranges and significant electrical noise.

Precision Control and Dynamic Response: The WOODWARD 5466-318 utilizes high-resolution signal processing and advanced PID control algorithms to maintain precise speed regulation, even under sudden load changes. This ensures stable operation of generators and mechanical drives, preventing costly trips and production downtime. Its fast processing capability provides excellent dynamic response, keeping the unit within safe operating limits at all times.

Ease of Integration and Use: Despite its powerful capabilities, the WOODWARD 5466-318 is designed for straightforward integration. It features a comprehensive set of analog and discrete I/O for connecting sensors, switches, and actuators. Configuration and diagnostics are simplified through standard serial communication interfaces using Woodward’s intuitive PC software, reducing commissioning time and simplifying troubleshooting. The proven design of the WOODWARD 5466-318 means it offers a reliable, cost-effective control solution that is easy to maintain and support over the entire lifecycle of the equipment.

Application Field

The WOODWARD 5466-318 finds its primary application in industries where precise control of rotating equipment is critical for safety, efficiency, and reliability. In the Oil & Gas sector, it is extensively used to control compressor and pump drives in pipelines and refineries, regulating speed to maintain precise process pressures and flow rates. In the Power Generation industry, the WOODWARD 5466-318 is a key component in governing small to medium-sized gas turbines, steam turbines, and backup diesel generators, ensuring stable frequency and facilitating smooth grid synchronization.

Beyond these, it is also widely applied in Marine propulsion systems for controlling ship engines and in various Industrial Mechanical Drive applications, such as controlling turbines that drive large pumps, fans, and compressors in chemical plants and water treatment facilities. The flexibility of the WOODWARD 5466-318 allows it to solve a wide array of control challenges, from simple speed holding to complex load-sharing between multiple units. Its robustness makes it ideal for remote and unattended installations, providing dependable control that protects valuable assets and ensures continuous operation.

WOODWARD 5466-318

Related Products

WOODWARD 5466-258: Another variant within the SPM-D series, often with different I/O configurations or firmware for specific application requirements.

WOODWARD 5464-258: A predecessor or complementary model in the same family, sharing similar architecture and configuration tools.

WOODWARD 2301A: A classic electronic engine governor, often used in similar applications but representing an earlier generation of technology.

WOODWARD ProAct™ Digital Servo Actuator: A common companion to the 5466-318, receiving its control signals to precisely position fuel valves or inlet guide vanes.

WOODWARD EasyGen™ Genset Controller: While the 5466-318 focuses on prime mover control, the EasyGen series manages generator protection and synchronization, often working in conjunction.

WOODWARD SPM-D 5016-252: A different I/O or communication module that can be used alongside the main control module to expand system capabilities.
